Wheel Speed Sensor - Front: Notes

MATERIAL SPECIFICATION

Item Specification
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4

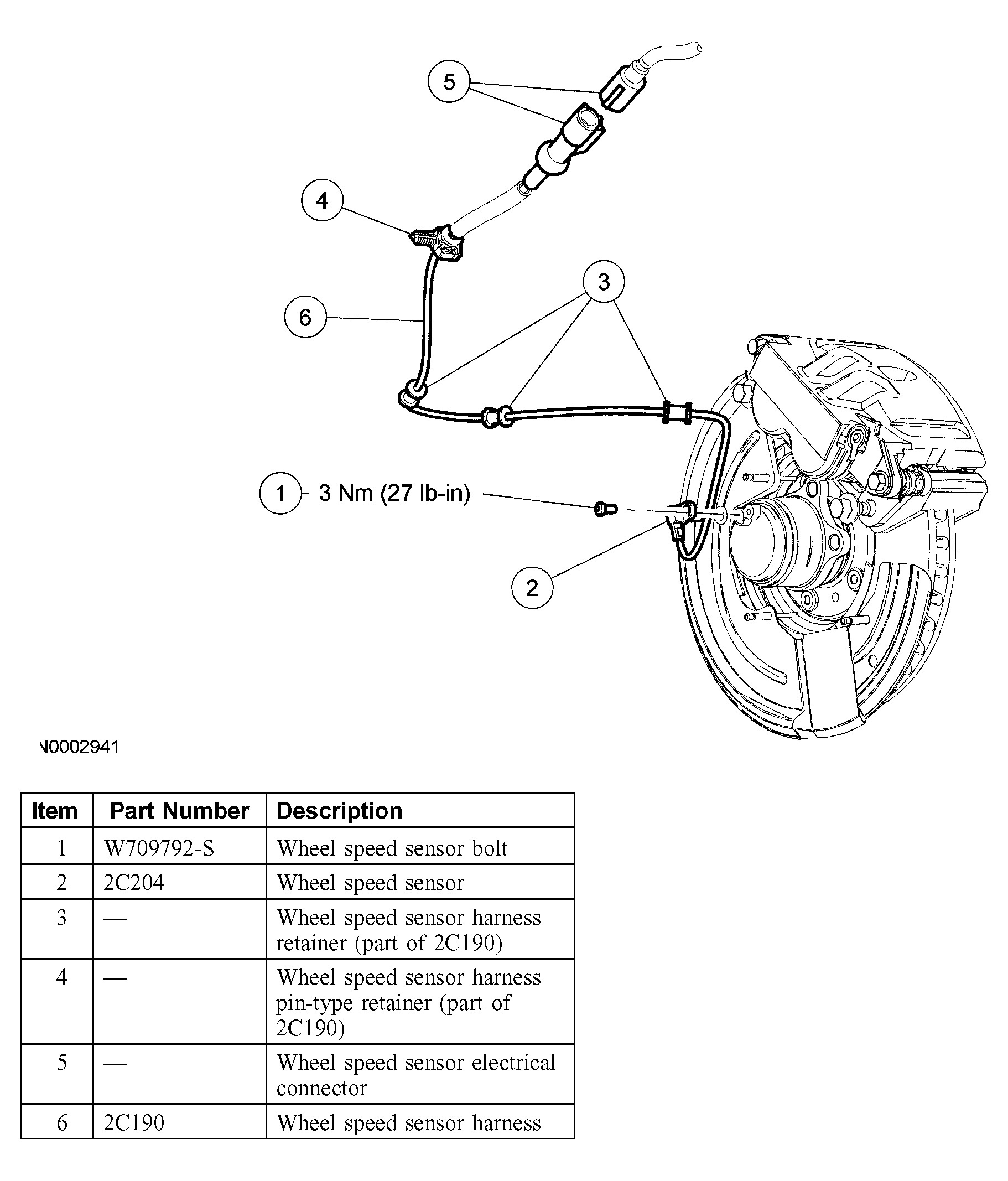

Fig 1: Removing Wheel Speed Sensor - Front With Torque Specification
G04007063Courtesy of FORD MOTOR CO.
