Wheel Speed Sensor - Rear: Notes

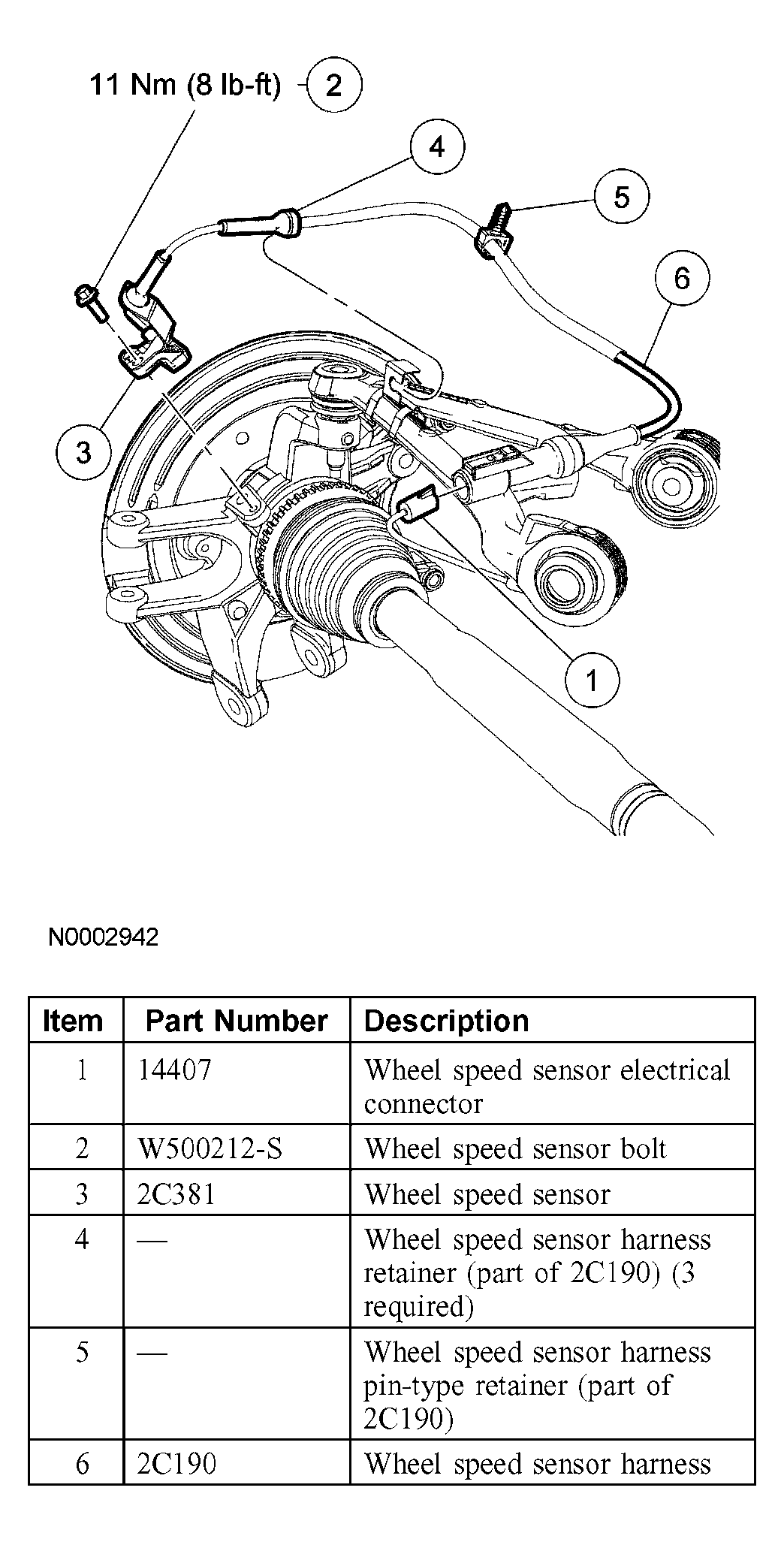

Fig 1: Removing Wheel Speed Sensor - Rear With Torque Specification
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
