Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

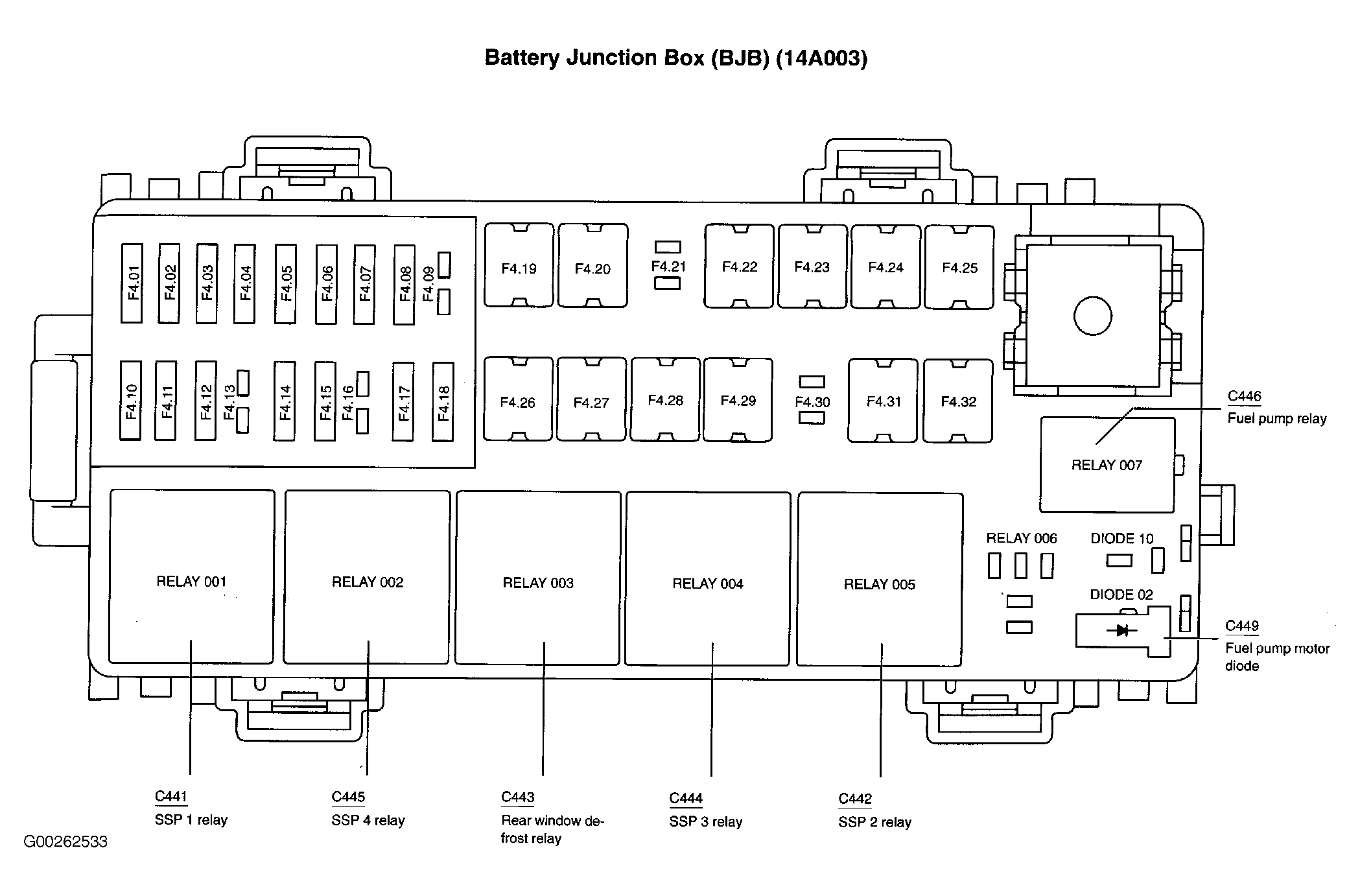

Fig 1: Battery Junction Box

G00262533

Courtesy of FORD MOTOR CO.

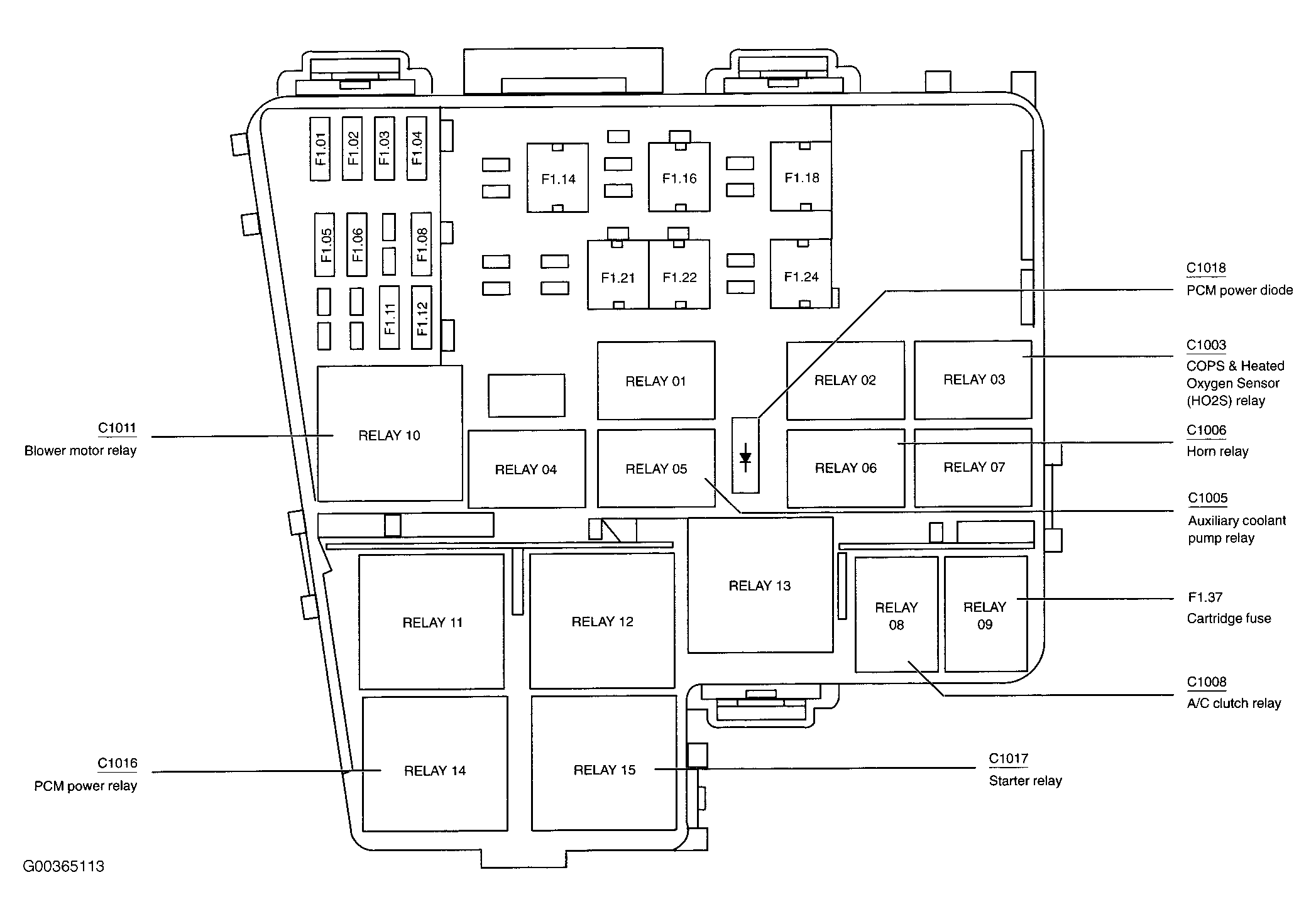

Fig 2: Underhood Auxiliary Junction Box

G00365113

Courtesy of FORD MOTOR CO.

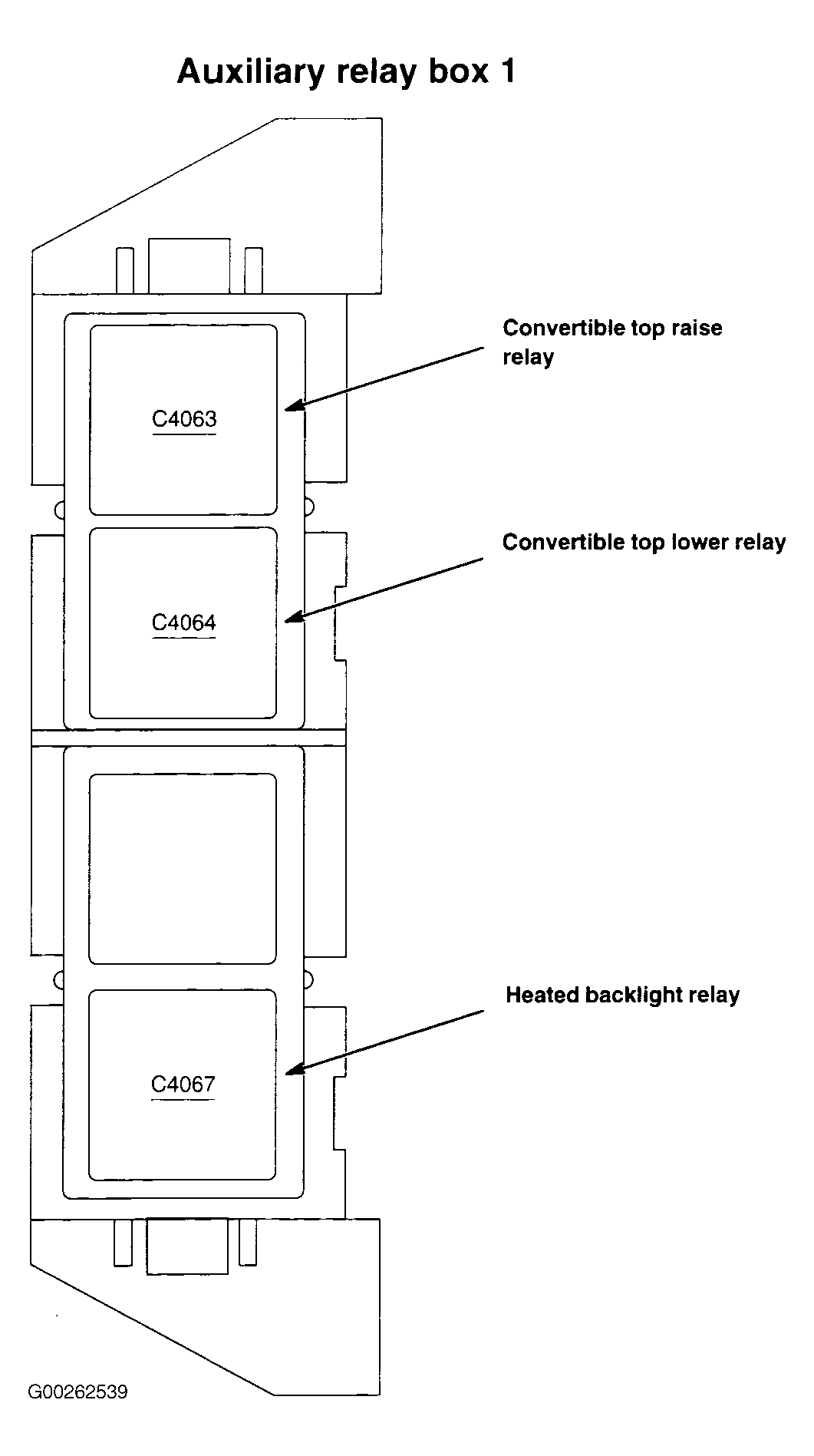

Fig 3: Auxiliary Relay Box 1

G00262539

Courtesy of FORD MOTOR CO.

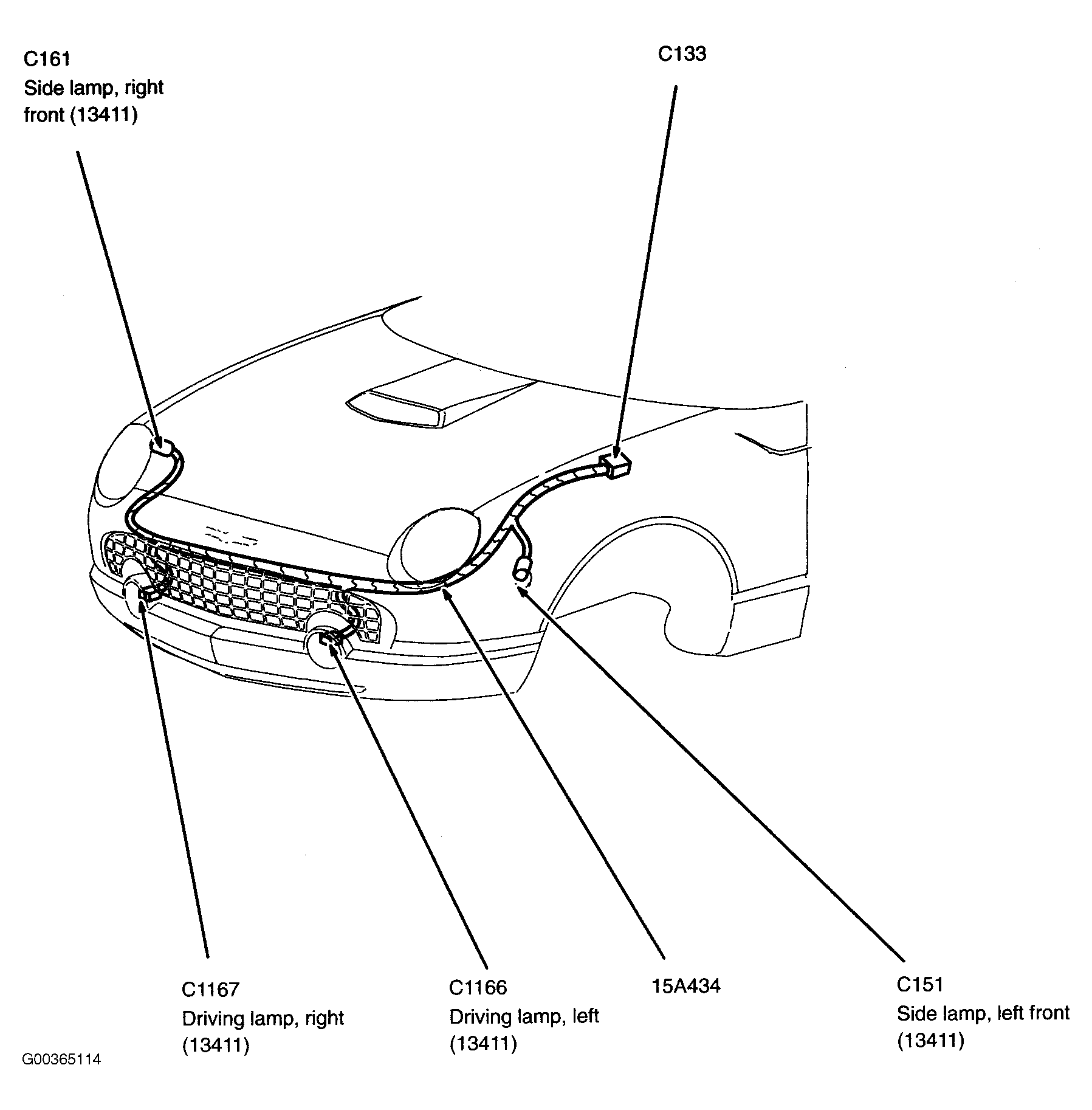

Fig 4: Front Of Vehicle

G00365114

Courtesy of FORD MOTOR CO.

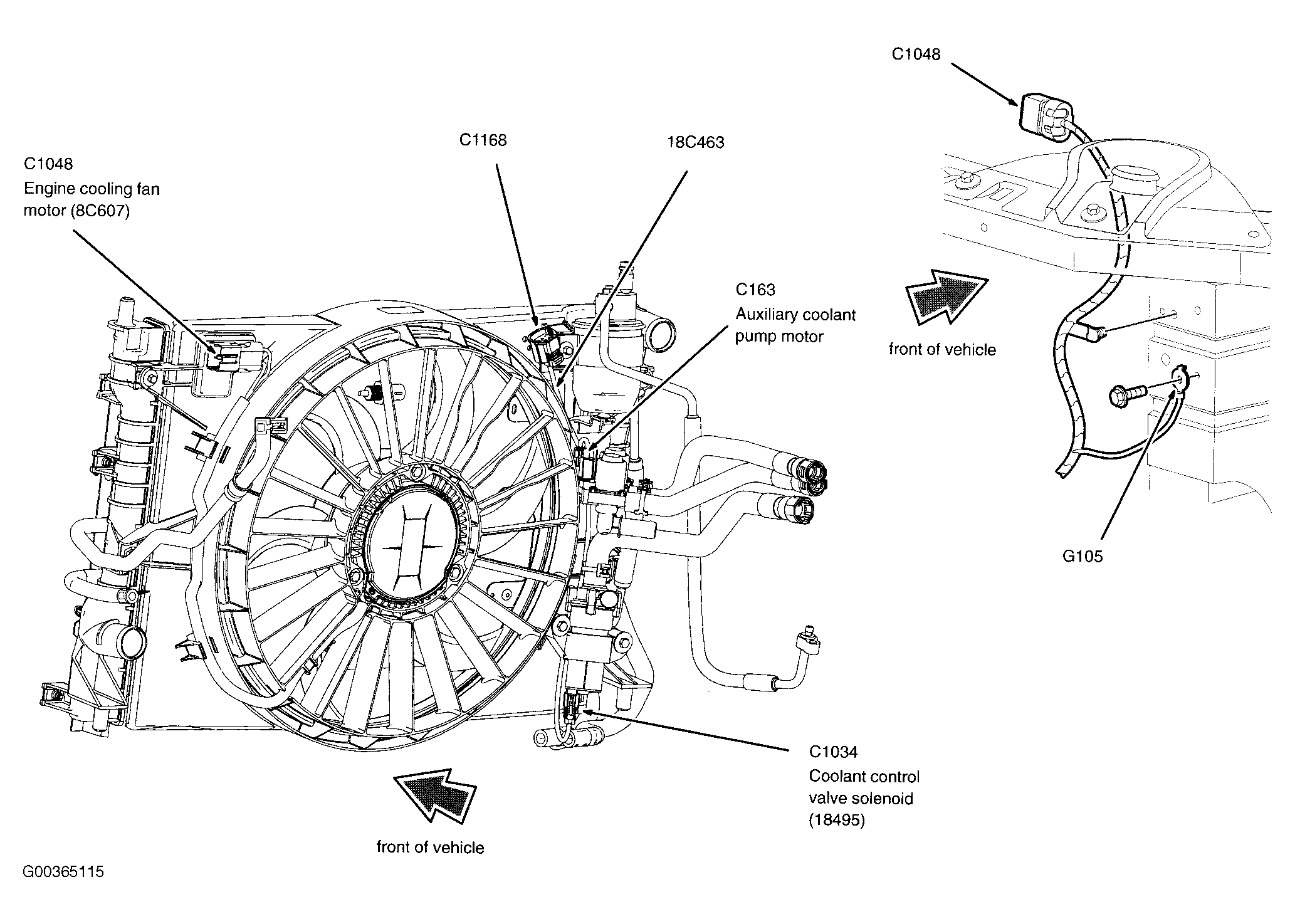

Fig 5: Engine Compartment

G00365115

Courtesy of FORD MOTOR CO.

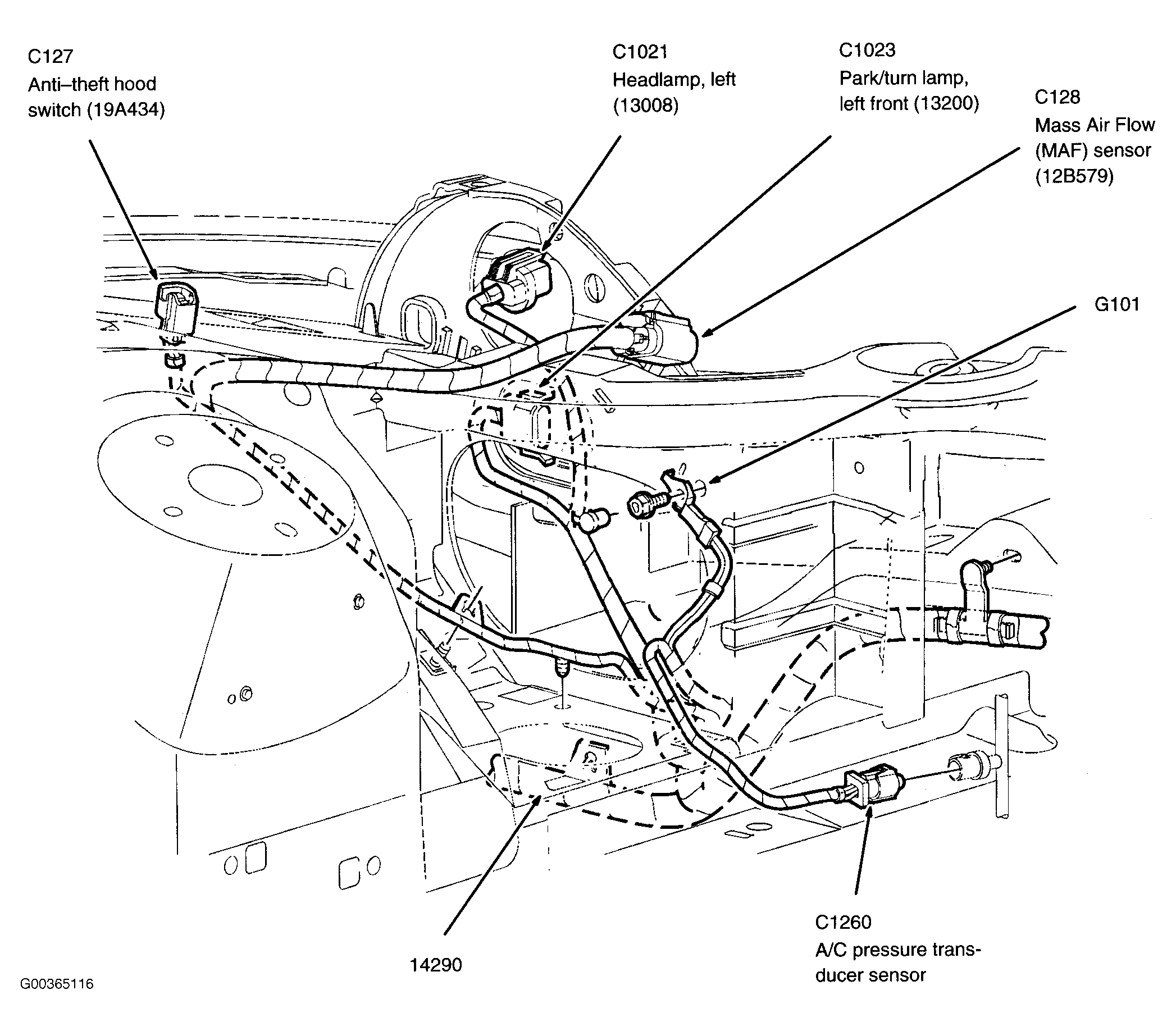

Fig 6: Left Front Of Engine Compartment

G00365116

Courtesy of FORD MOTOR CO.

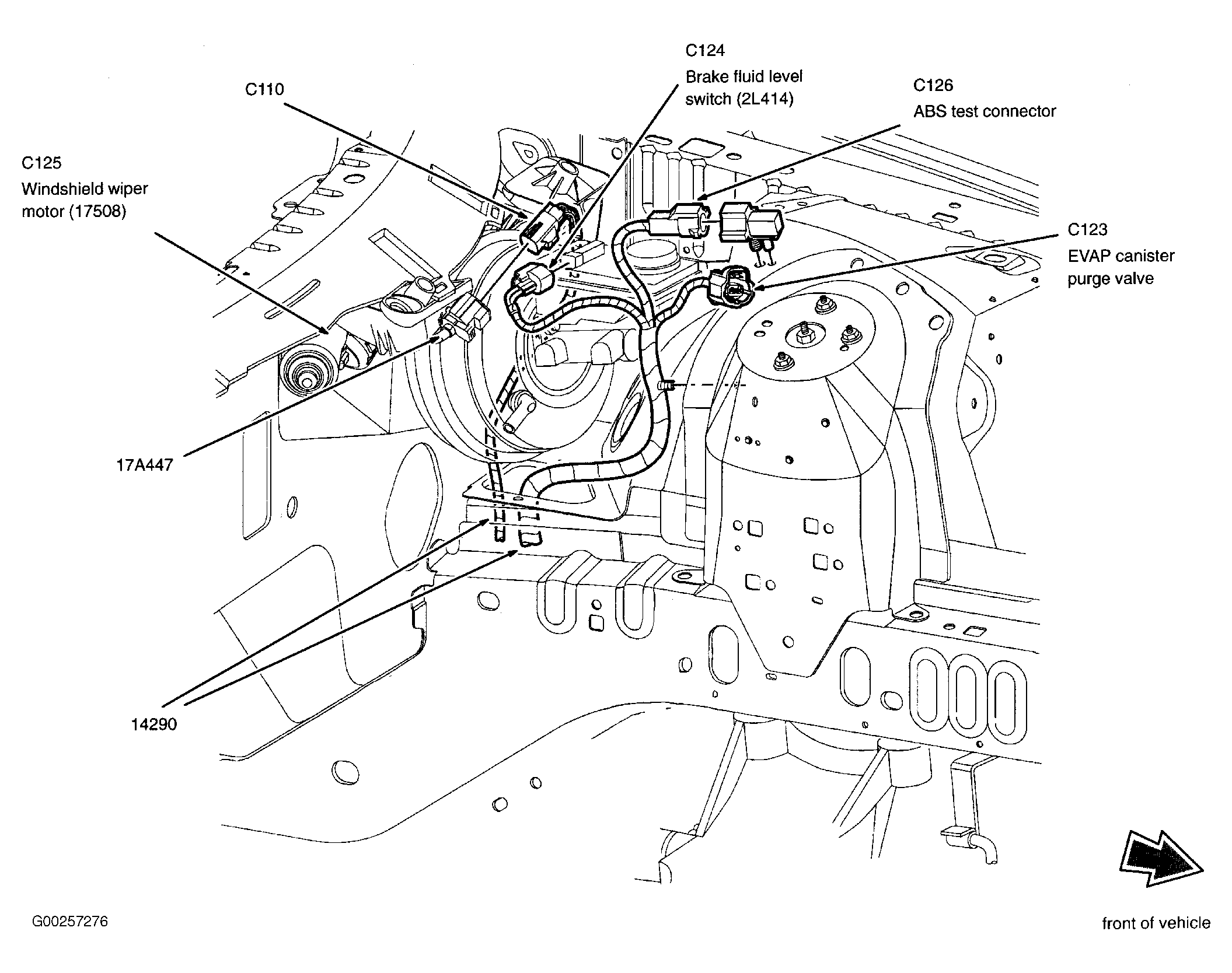

Fig 7: Left Front Shock Tower

G00257276

Courtesy of FORD MOTOR CO.

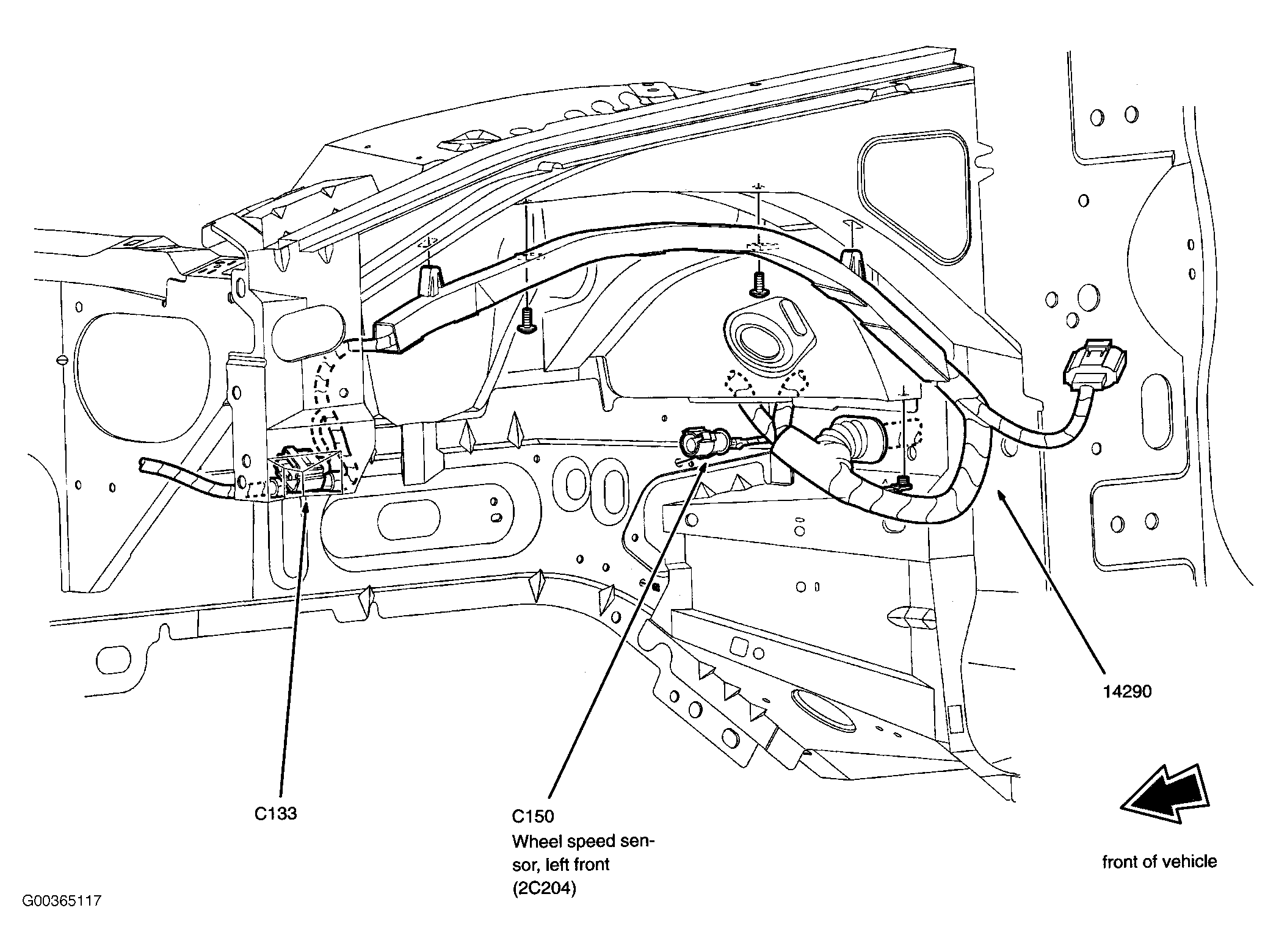

Fig 8: Left Front Fender

G00365117

Courtesy of FORD MOTOR CO.

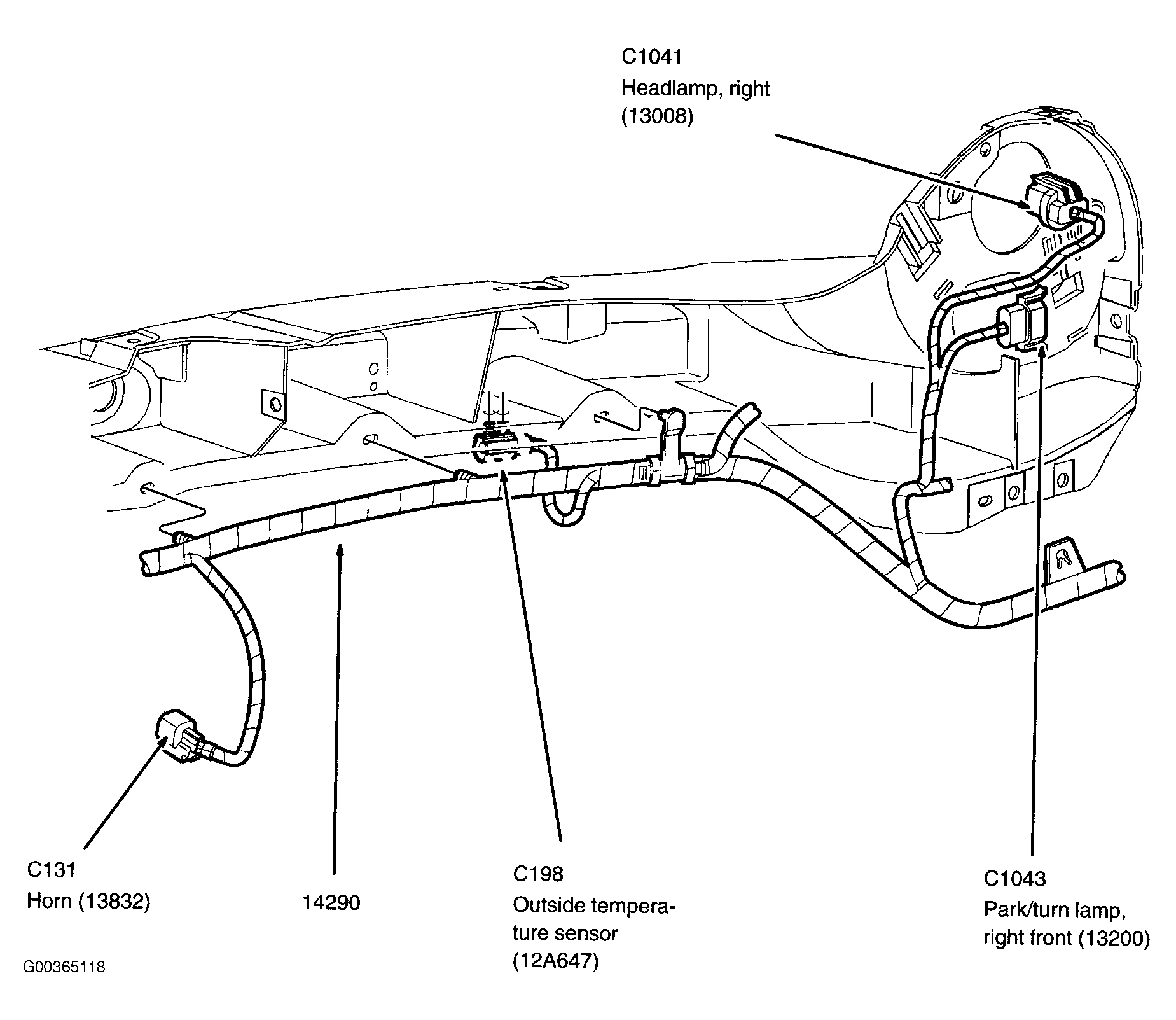

Fig 9: Right Front Side Of Engine Compartment

G00365118

Courtesy of FORD MOTOR CO.

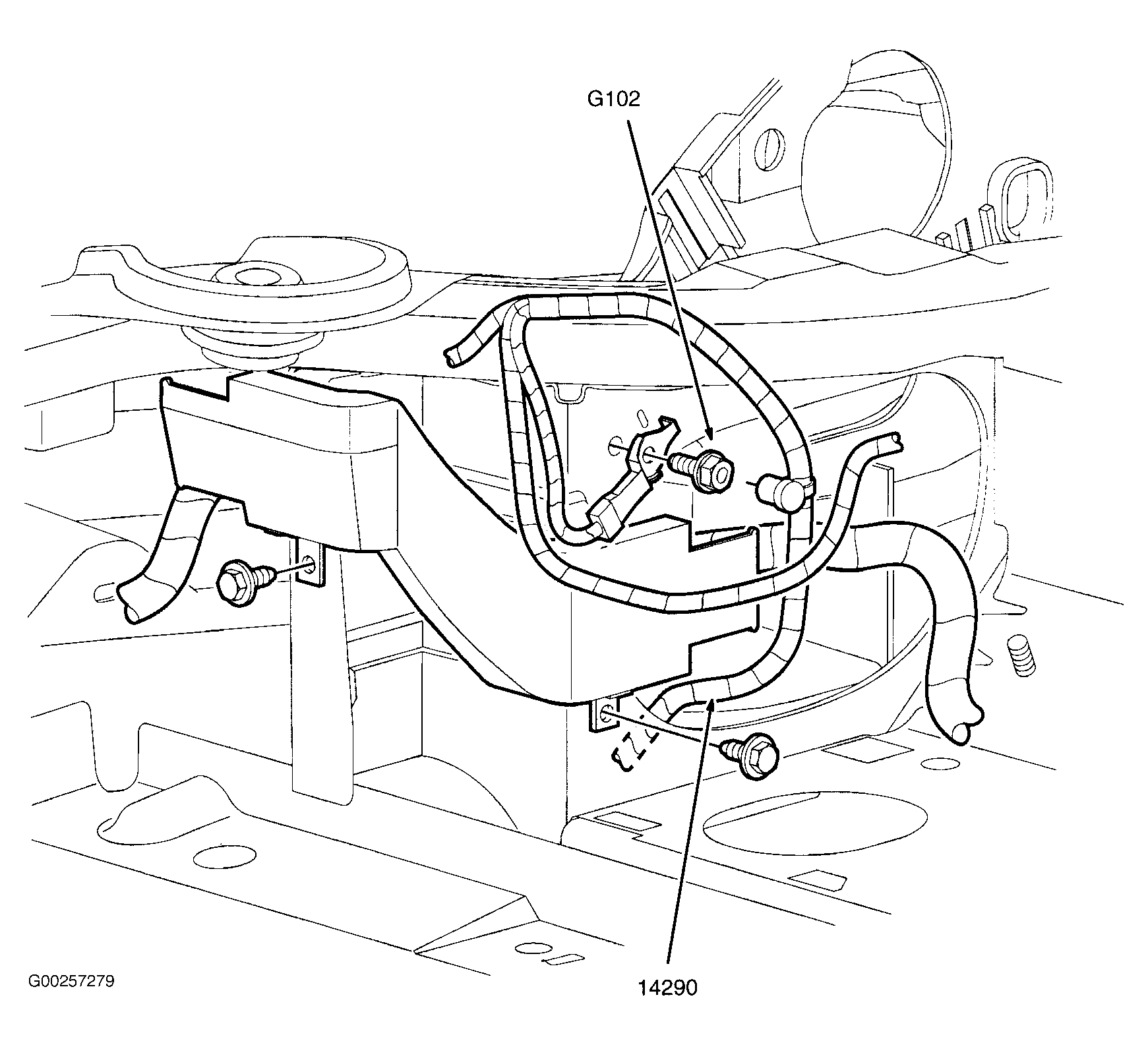

Fig 10: Right Front Of Engine Compartment

G00257279

Courtesy of FORD MOTOR CO.

Fig 11: Right Side Of Engine Compartment

G00365119

Courtesy of FORD MOTOR CO.

Fig 12: Right Front Shock Tower

G00257281

Courtesy of FORD MOTOR CO.

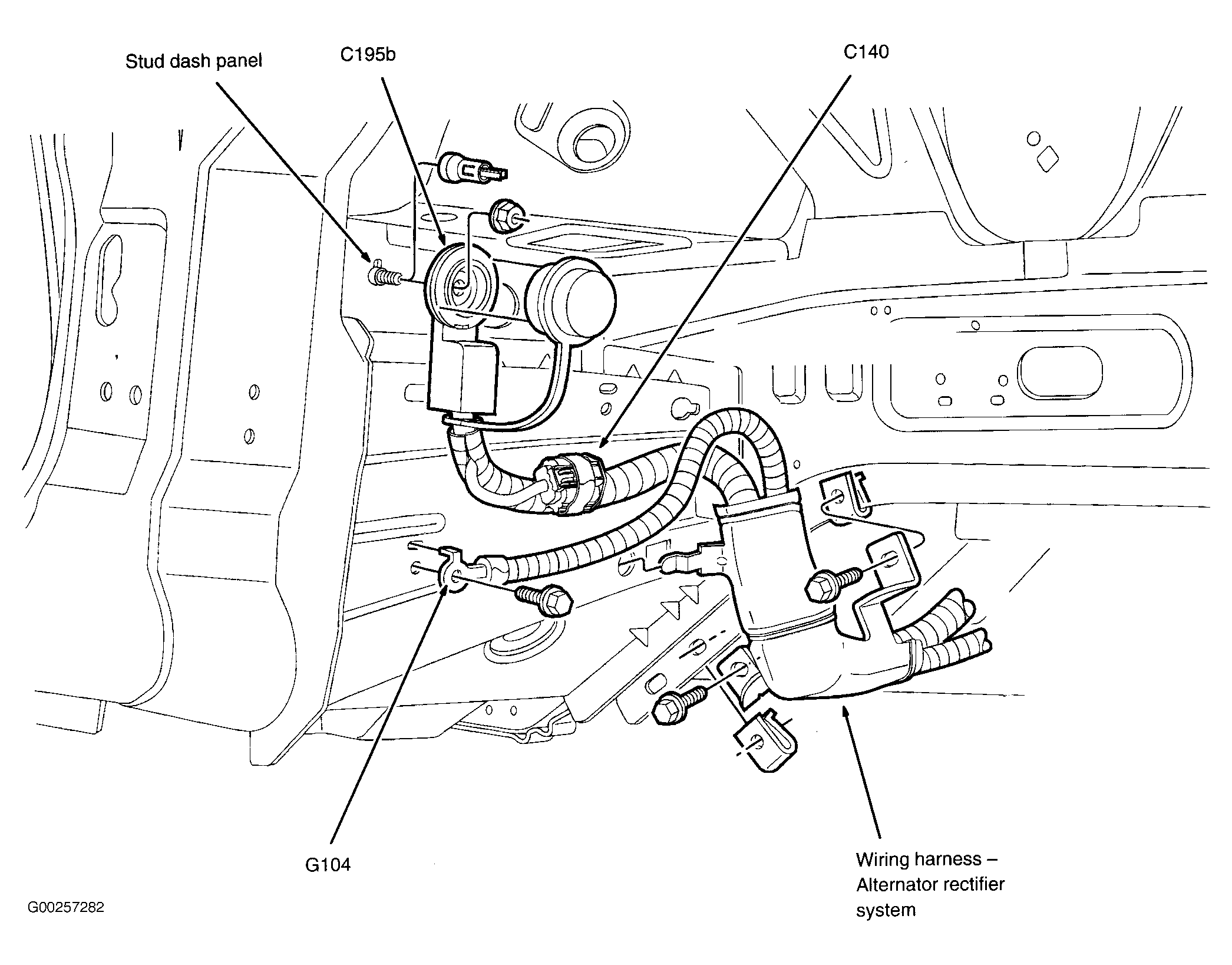

Fig 13: Right Front Fender

G00257282

Courtesy of FORD MOTOR CO.

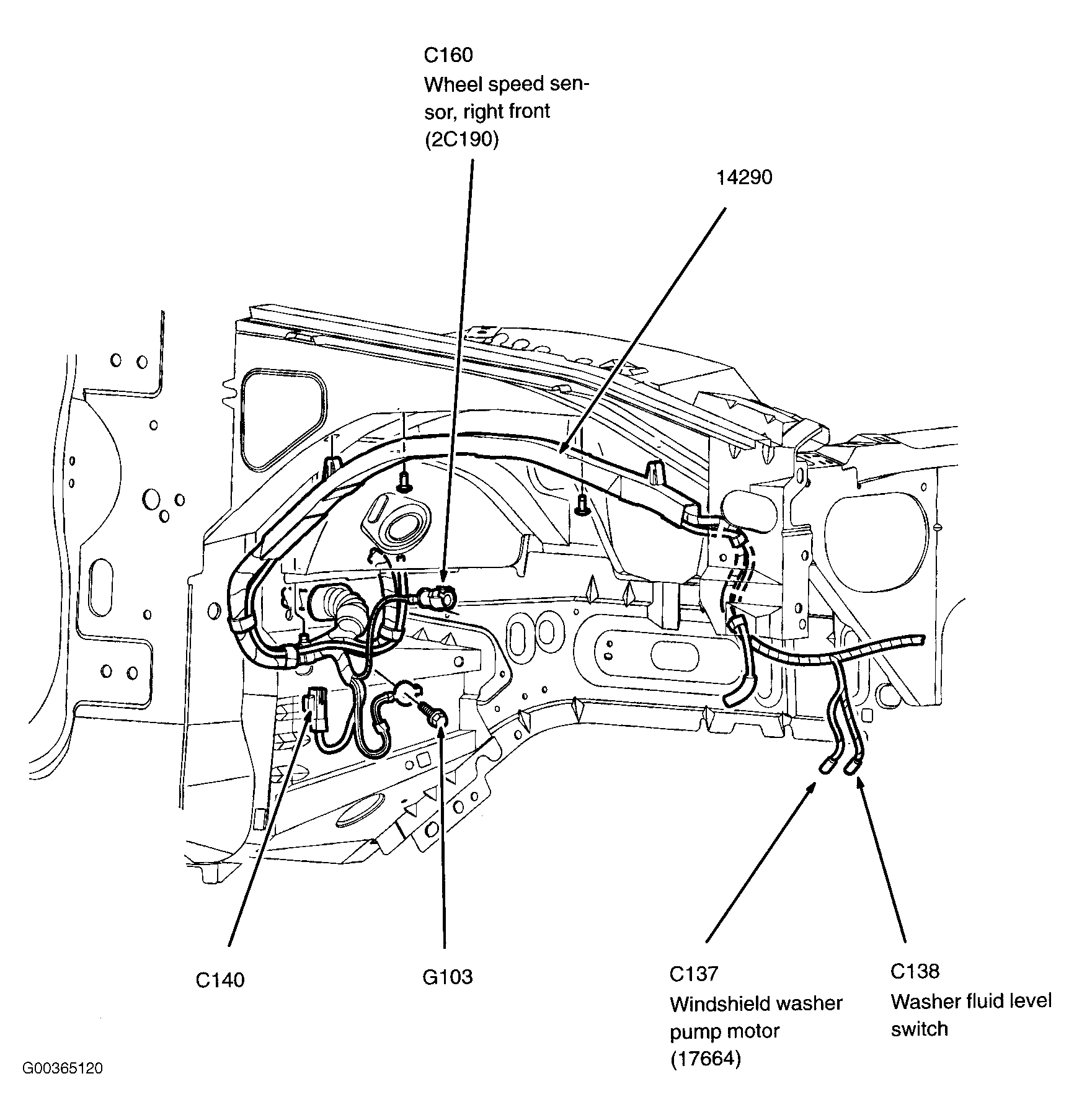

Fig 14: Right Front Fender

G00365120

Courtesy of FORD MOTOR CO.

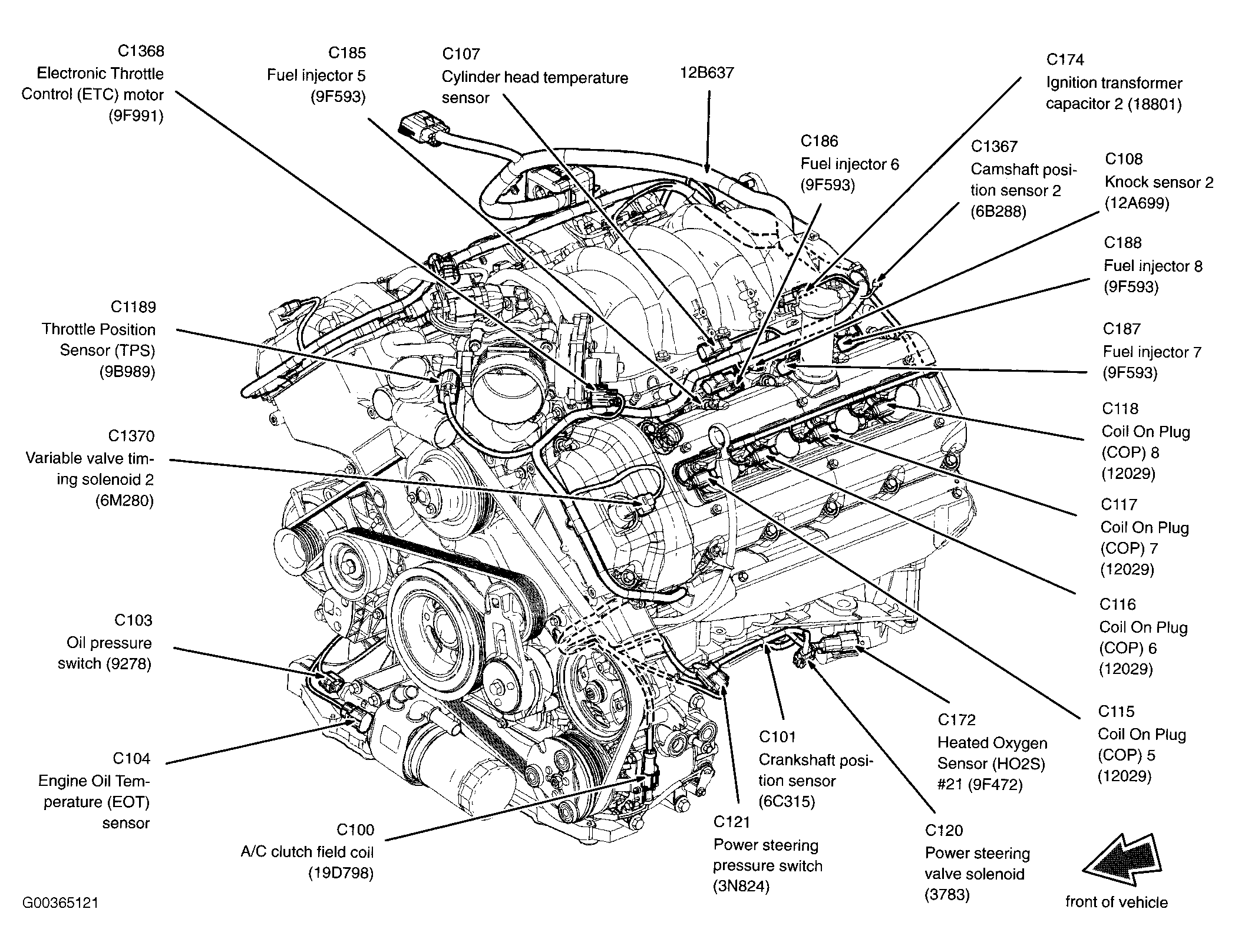

Fig 15: Front Of Engine

G00365121

Courtesy of FORD MOTOR CO.

Fig 16: Rear Of Engine

G00365122

Courtesy of FORD MOTOR CO.

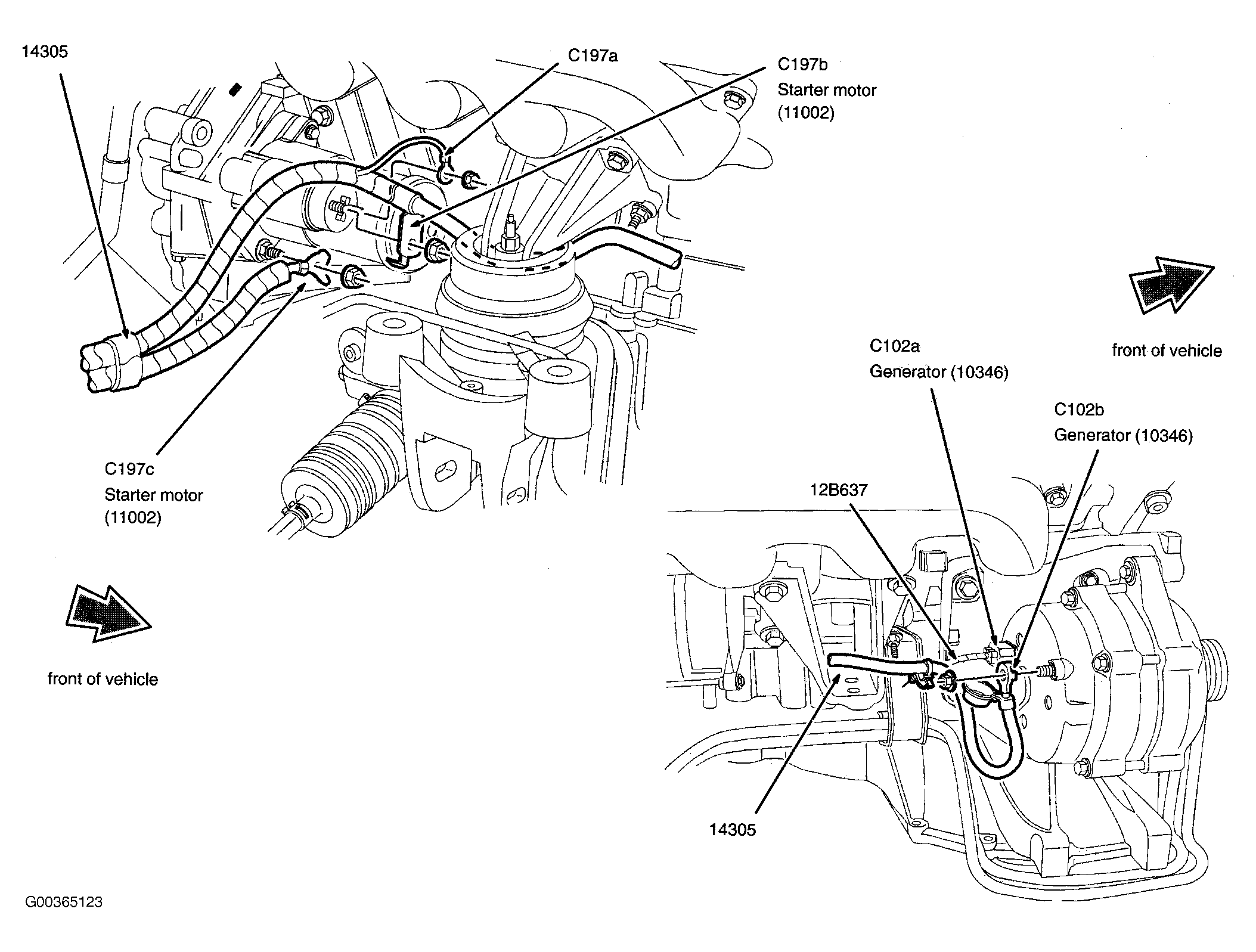

Fig 17: Generator & Starter Motor

G00365123

Courtesy of FORD MOTOR CO.

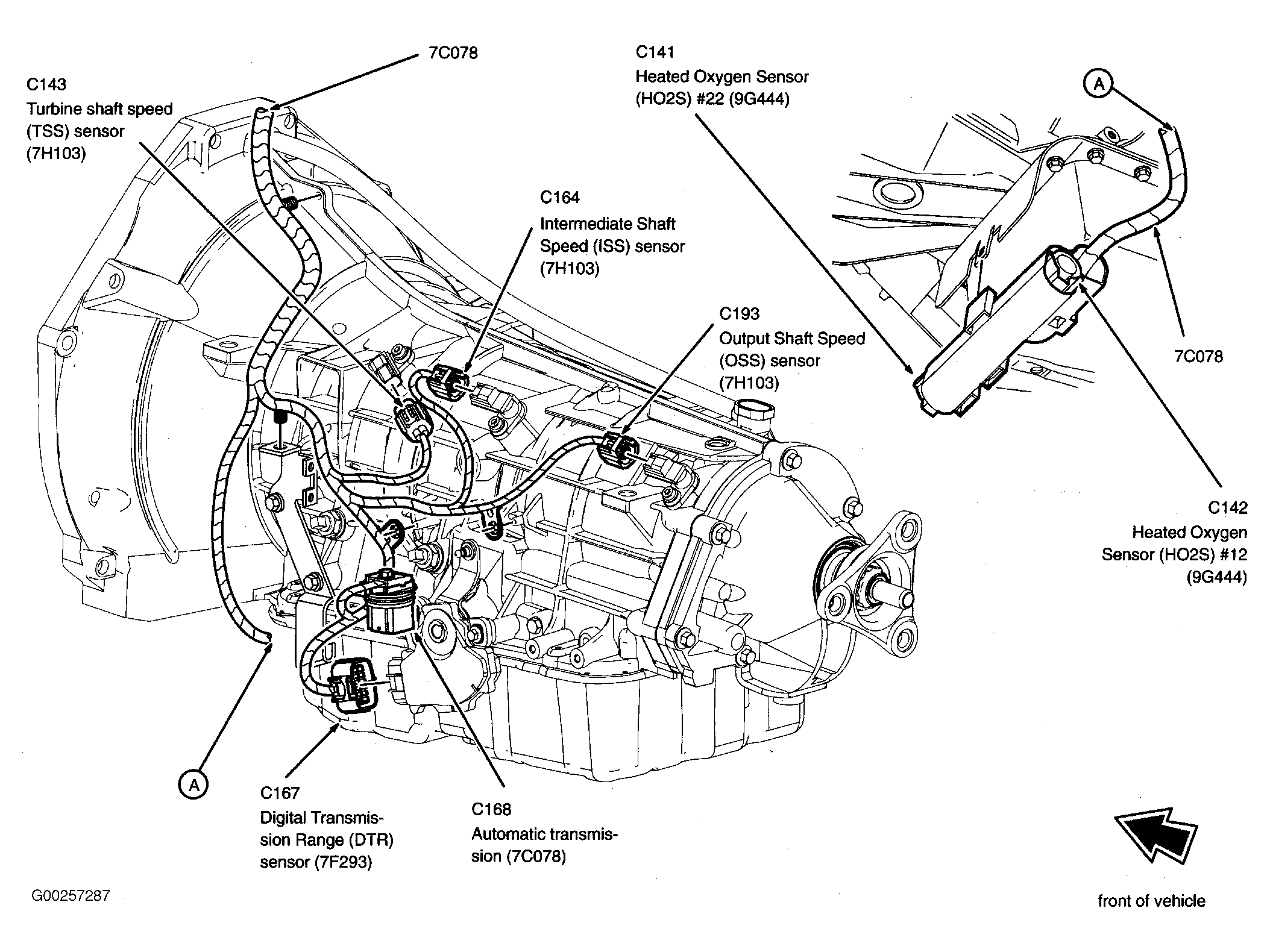

Fig 18: Automatic Transmission

G00257287

Courtesy of FORD MOTOR CO.

Fig 19: Left "A" Pillar

G00365124

Courtesy of FORD MOTOR CO.

Fig 20: Right "A" Pillar

G00257289

Courtesy of FORD MOTOR CO.

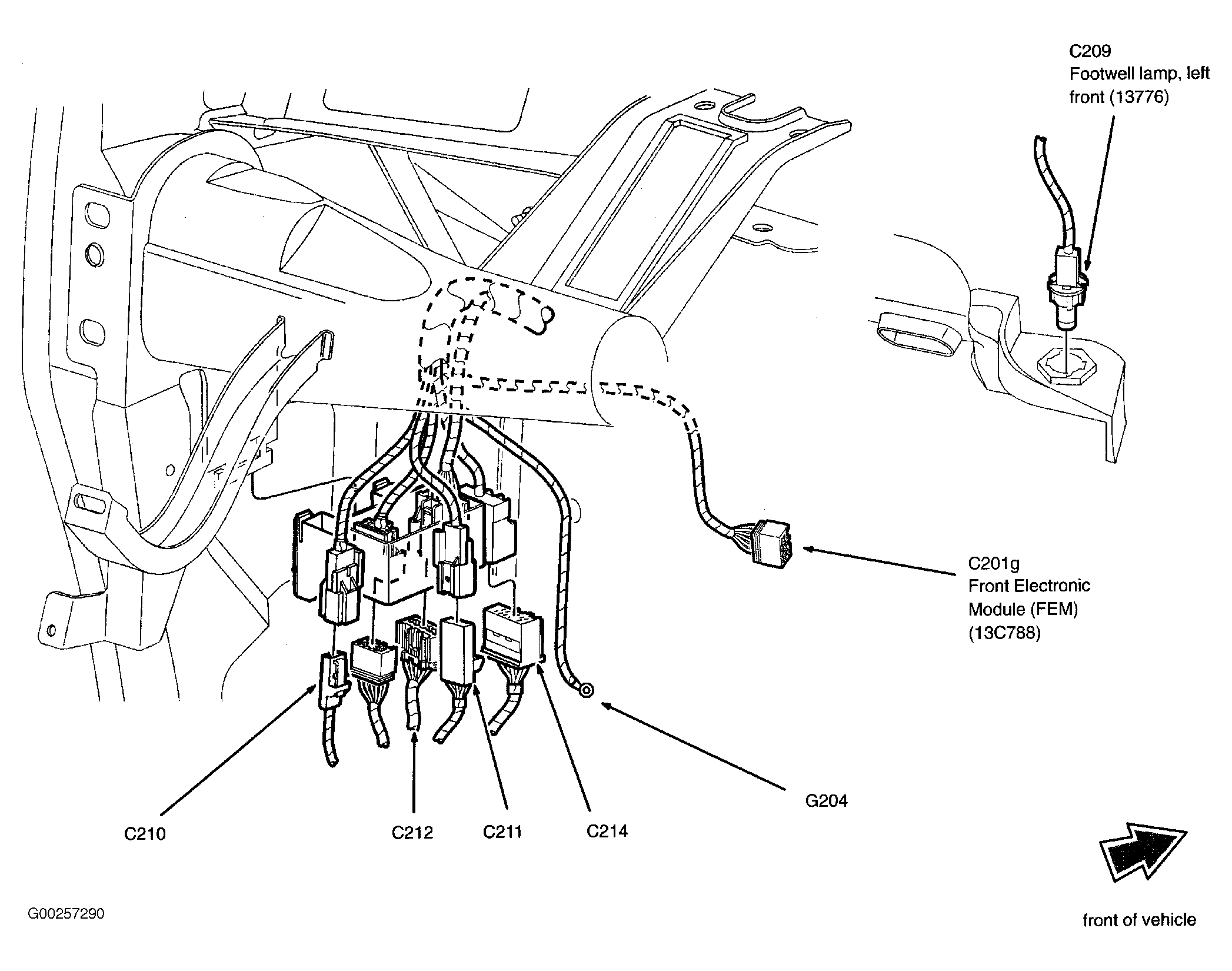

Fig 21: Left Side Of Dash (Rear View)

G00257290

Courtesy of FORD MOTOR CO.

Fig 22: Rear View Of Dash

G00365125

Courtesy of FORD MOTOR CO.

Fig 23: Rear View Of Dash

G00257292

Courtesy of FORD MOTOR CO.

Fig 24: Front View Of Dash

G00365126

Courtesy of FORD MOTOR CO.

Fig 25: Driver's Seat

G00365127

Courtesy of FORD MOTOR CO.

Fig 26: Center Floor Pan

G00257296

Courtesy of FORD MOTOR CO.

Fig 27: Passenger's Seat

G00365128

Courtesy of FORD MOTOR CO.

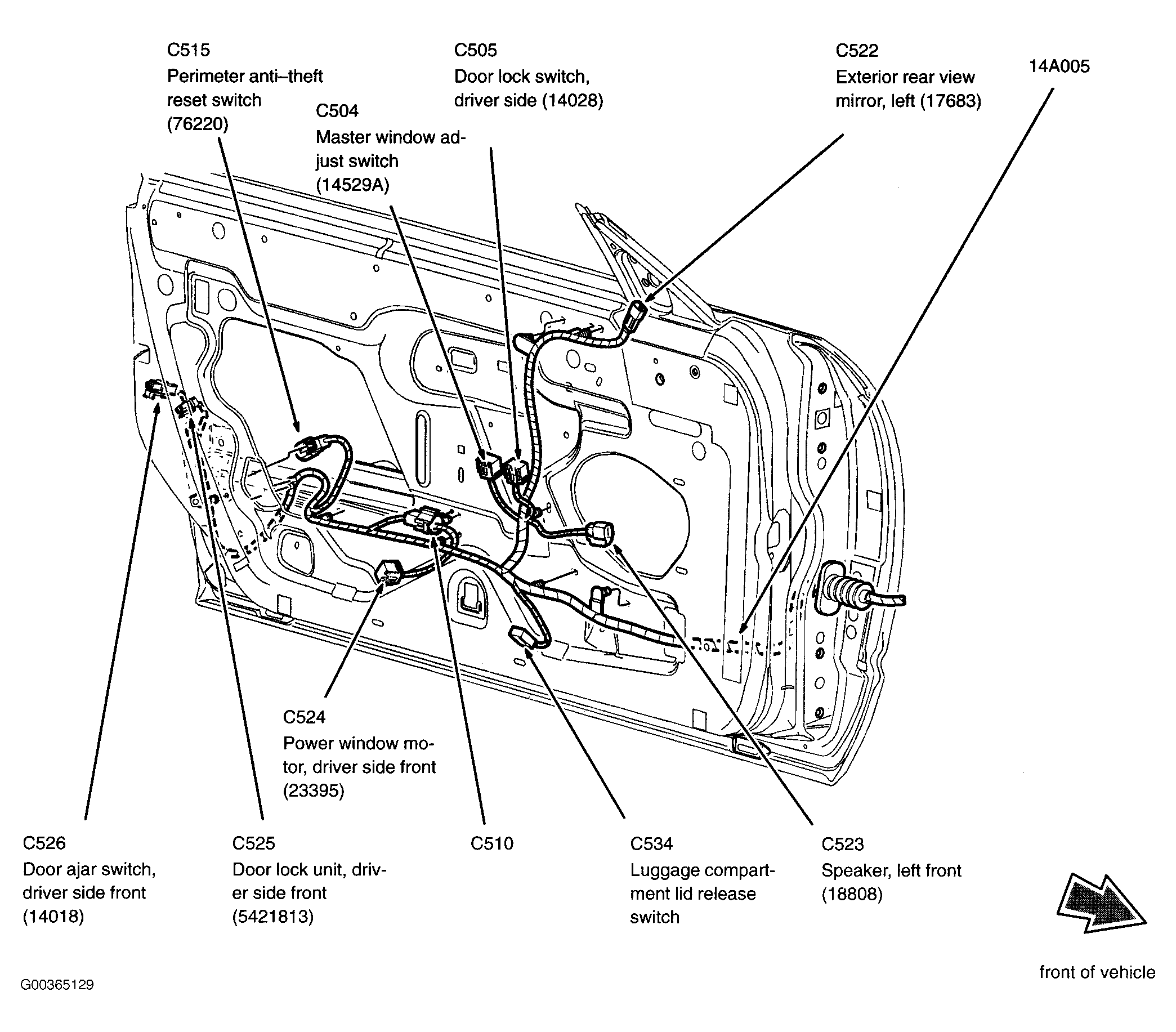

Fig 28: Left Door

G00365129

Courtesy of FORD MOTOR CO.

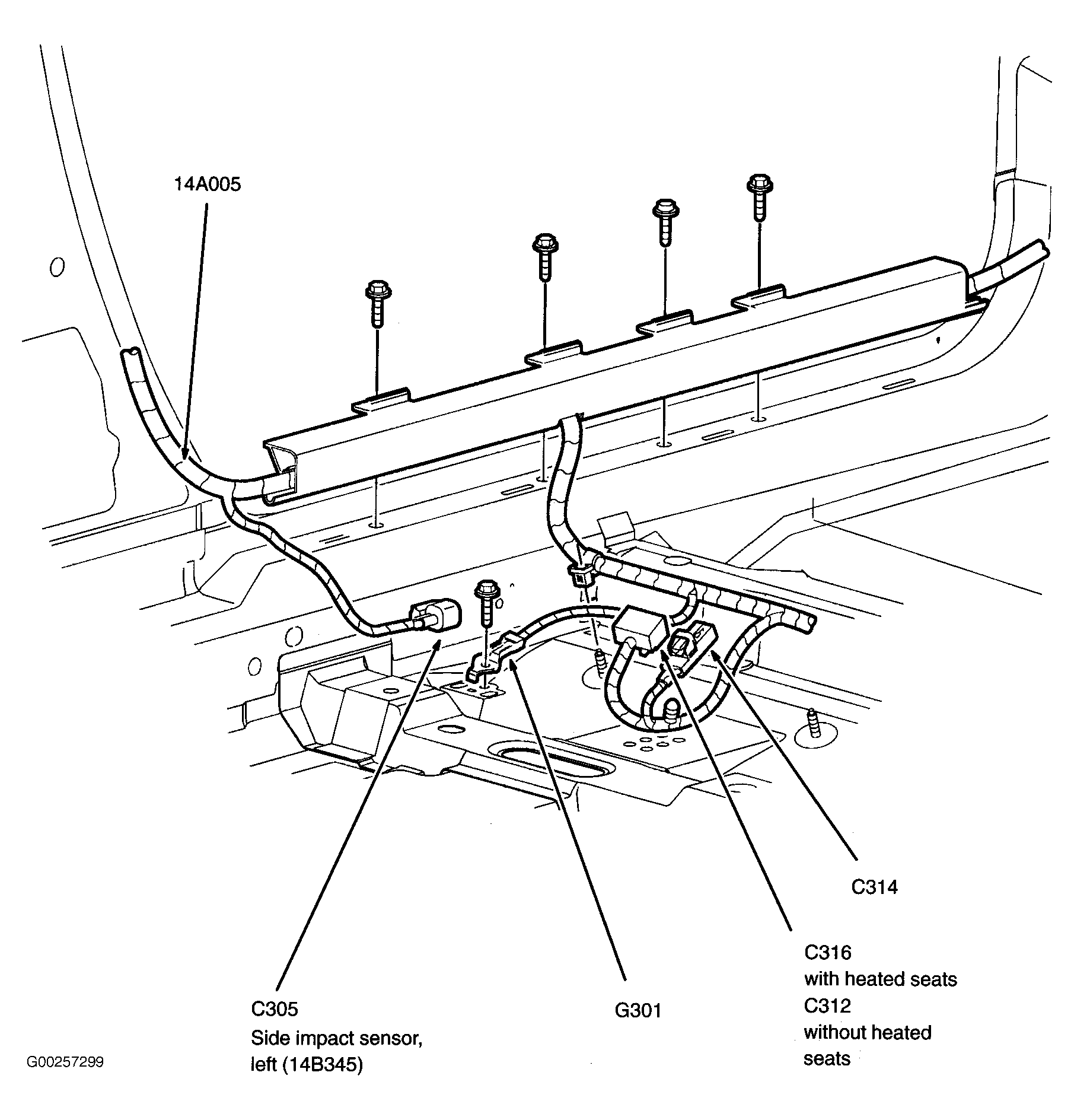

Fig 29: Left Side Floor Pan

G00257299

Courtesy of FORD MOTOR CO.

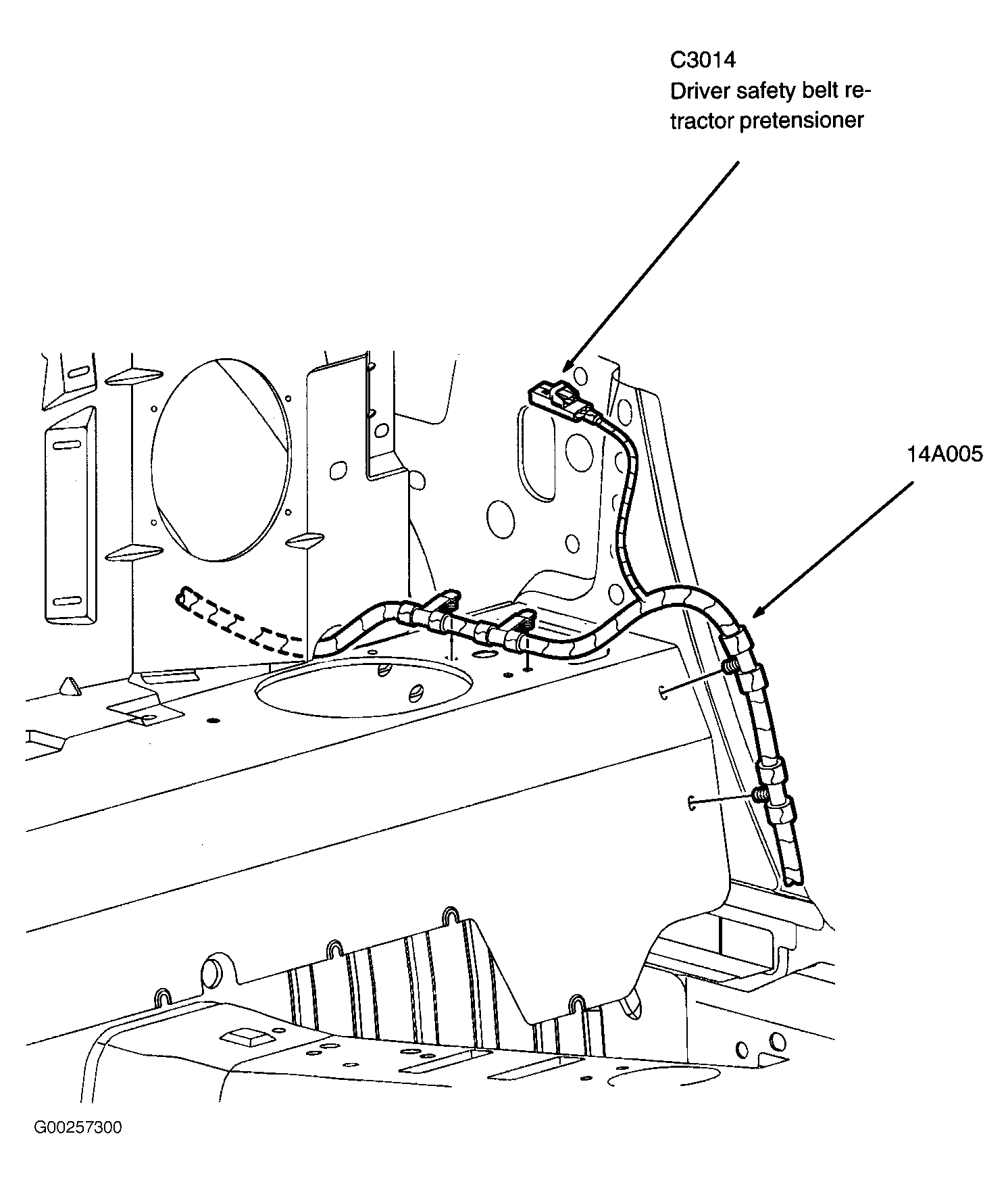

Fig 30: Left Rear Floor Pan

G00257300

Courtesy of FORD MOTOR CO.

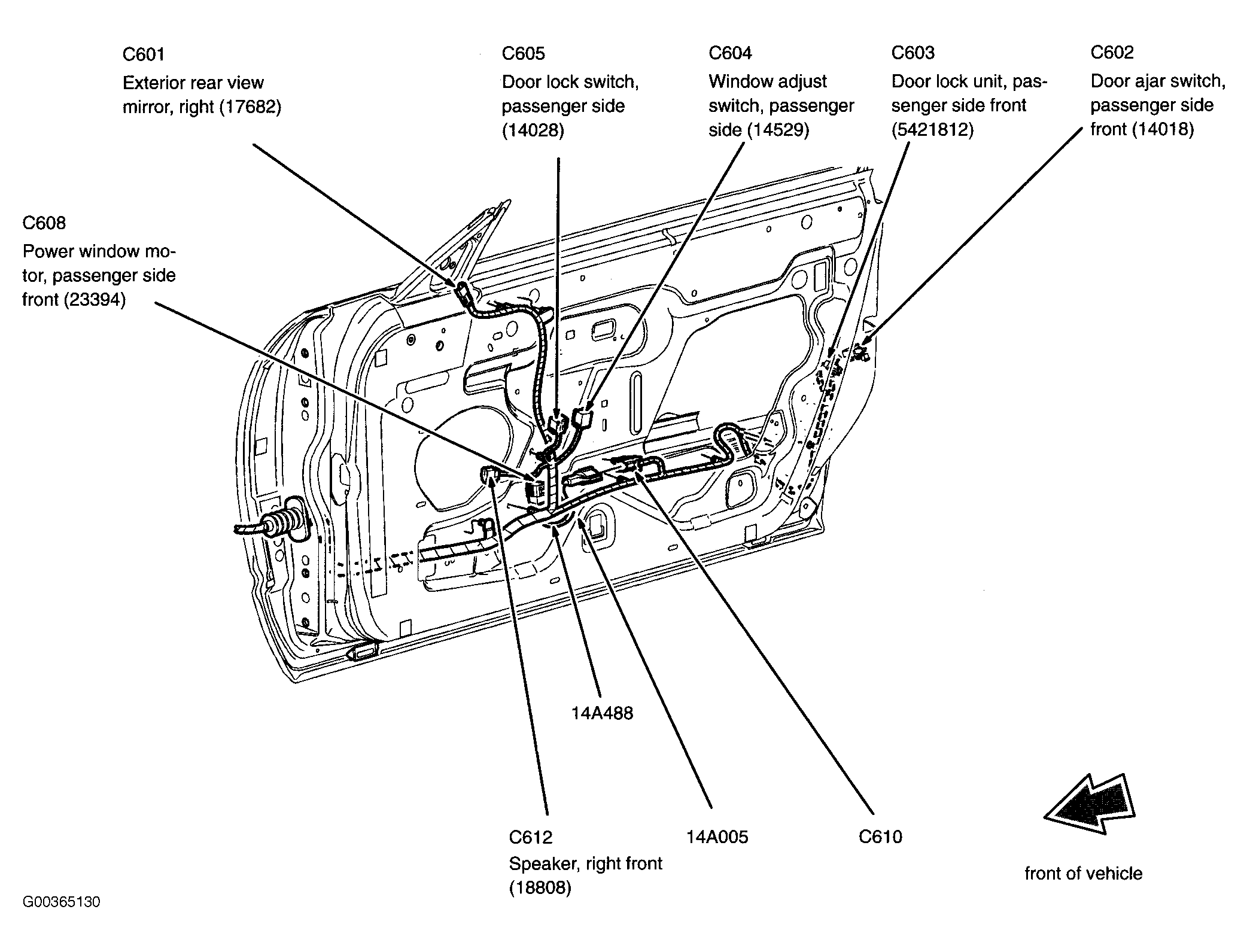

Fig 31: Right Door

G00365130

Courtesy of FORD MOTOR CO.

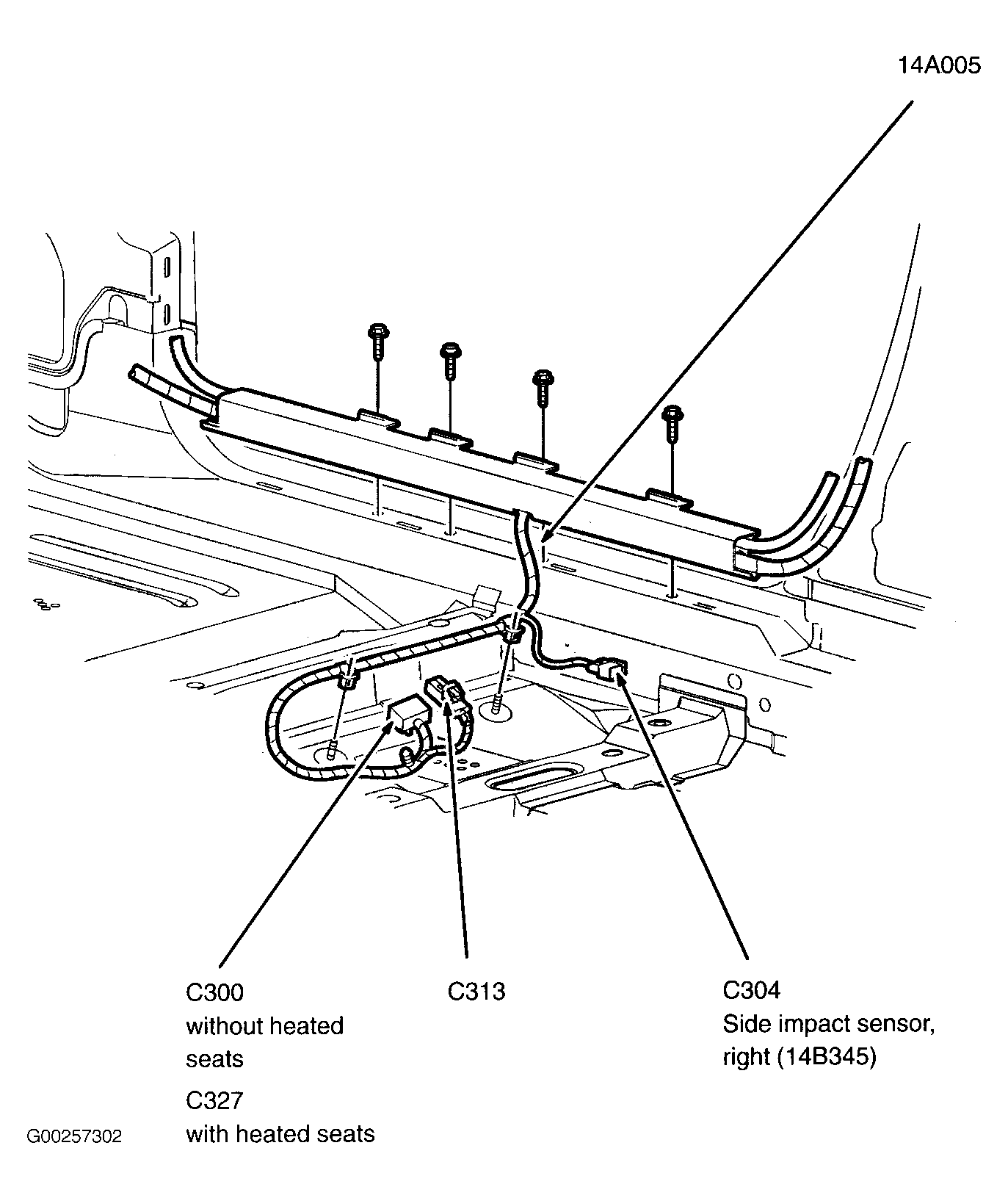

Fig 32: Under Passenger Seat

G00257302

Courtesy of FORD MOTOR CO.

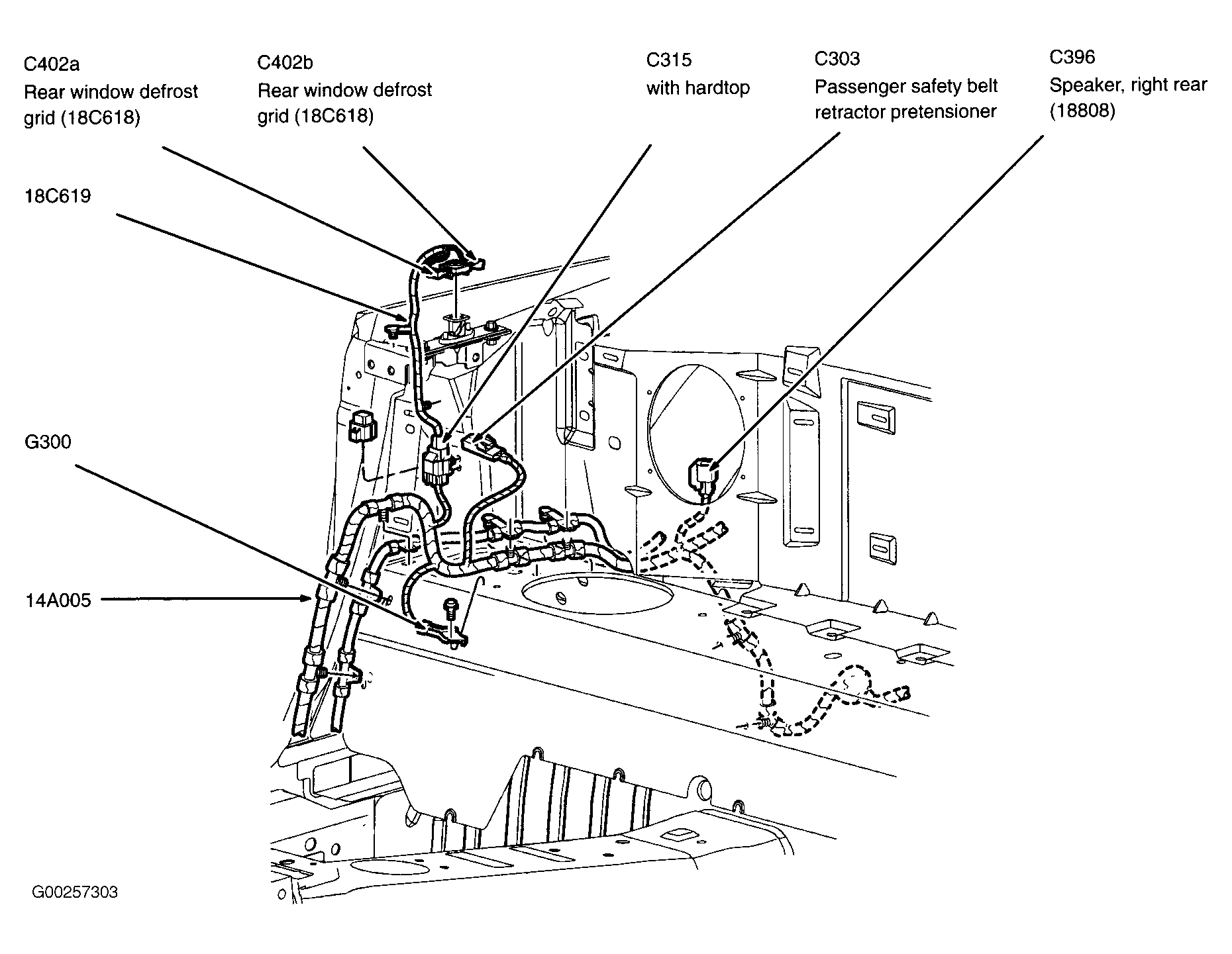

Fig 33: Right Rear Floor Pan

G00257303

Courtesy of FORD MOTOR CO.

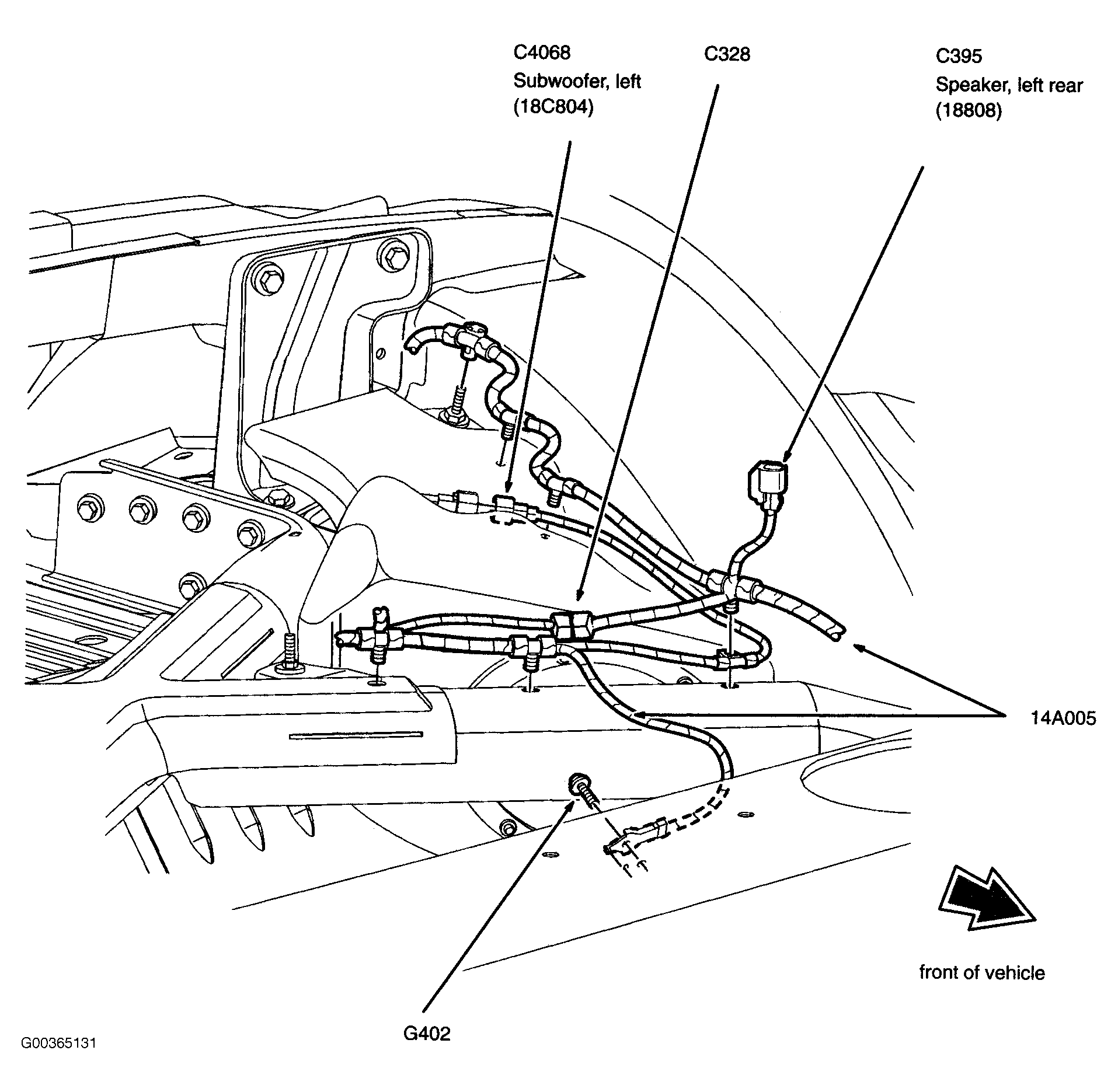

Fig 34: Left Rear Of Vehicle

G00365131

Courtesy of FORD MOTOR CO.

Fig 35: Left Rear Of Vehicle

G00257305

Courtesy of FORD MOTOR CO.

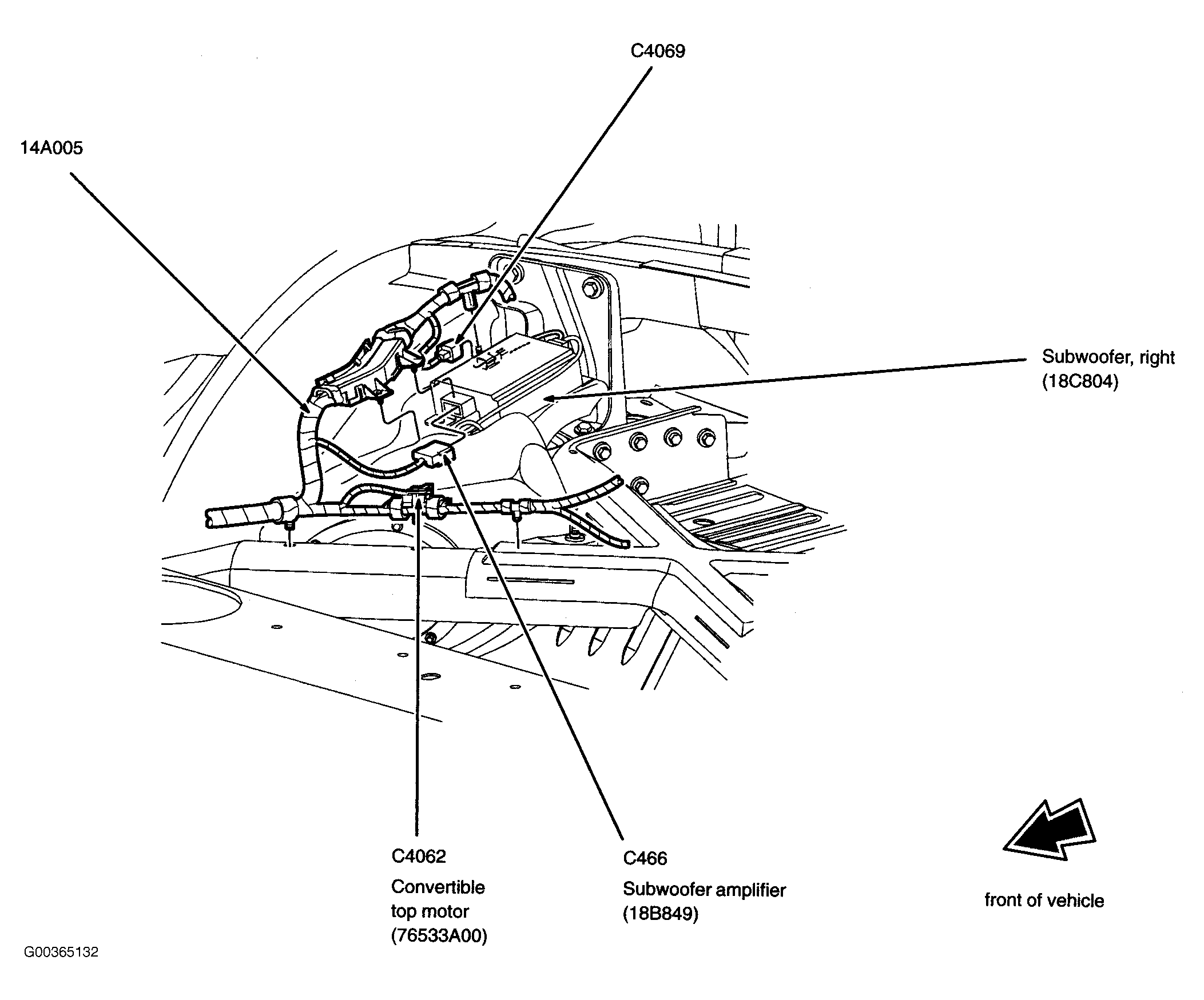

Fig 36: Right Rear Of Vehicle

G00365132

Courtesy of FORD MOTOR CO.

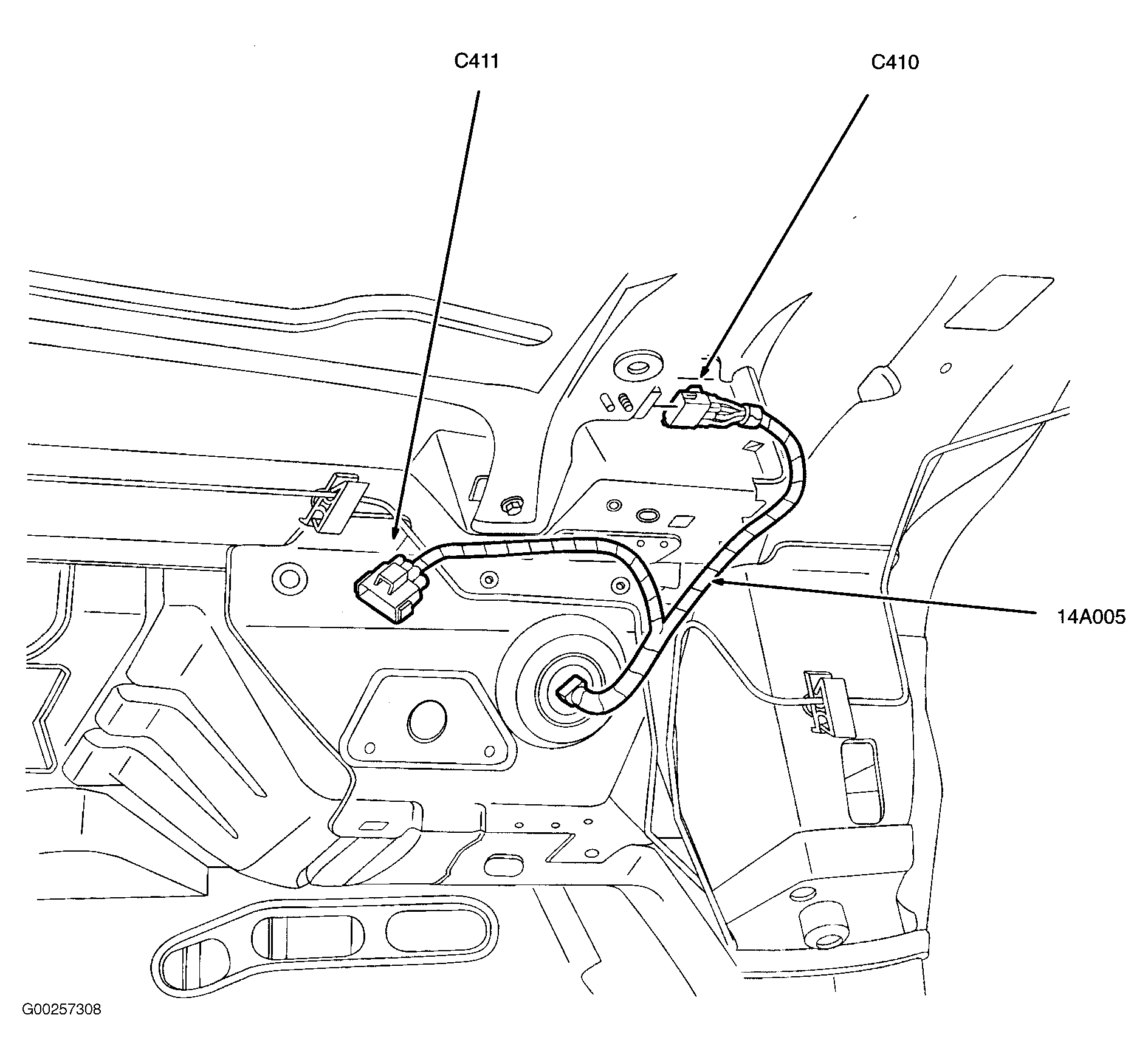

Fig 37: Right Rear Of Vehicle (Underbody)

G00257308

Courtesy of FORD MOTOR CO.

Fig 38: Right Side Of Luggage Compartment

G00365133

Courtesy of FORD MOTOR CO.

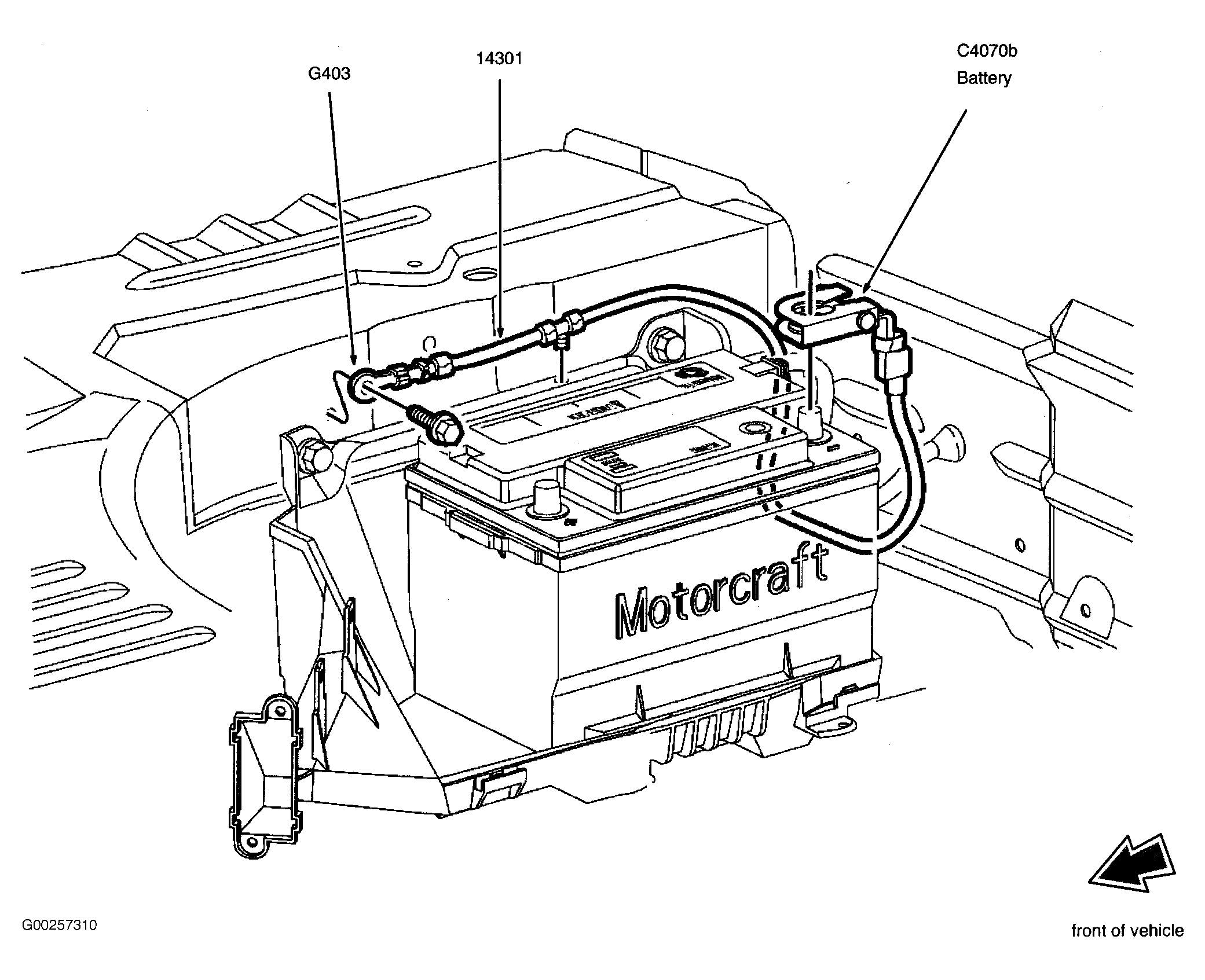

Fig 39: Battery To Ground Cable Assembly

G00257310

Courtesy of FORD MOTOR CO.

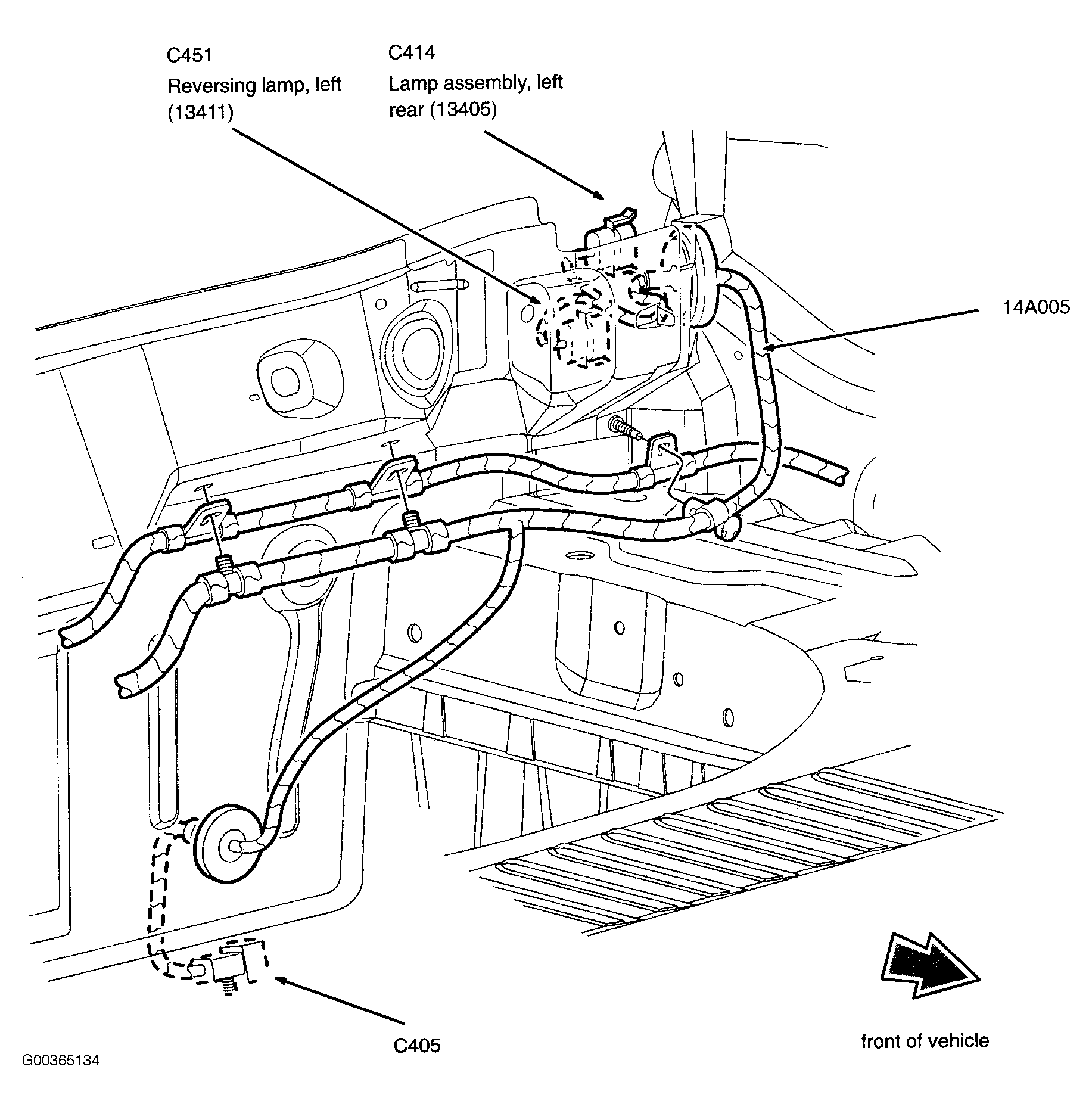

Fig 40: Left Side Of Luggage Compartment

G00365134

Courtesy of FORD MOTOR CO.

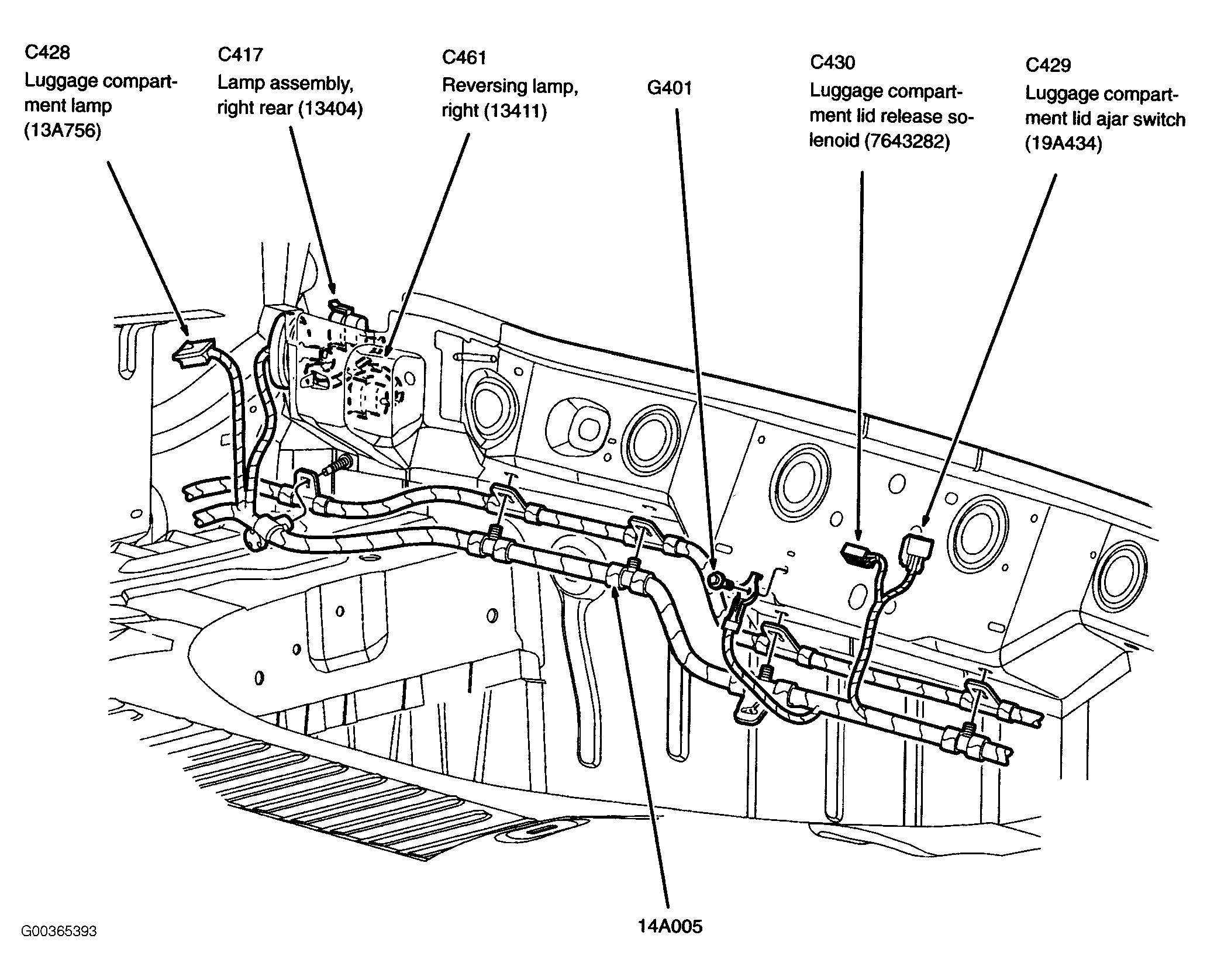

Fig 41: Right Rear Side Of Luggage Compartment

G00365393

Courtesy of FORD MOTOR CO.

Fig 42: Right "A" Pillar

G00365394

Courtesy of FORD MOTOR CO.

Fig 43: Lower Left Side Of Dash

G00365395

Courtesy of FORD MOTOR CO.

Fig 44: Vehicle Overview

G00365396

Courtesy of FORD MOTOR CO.
