Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|
| C110 (12 Pin) | On left rear of engine compartment, near shock tower. See Figure. |

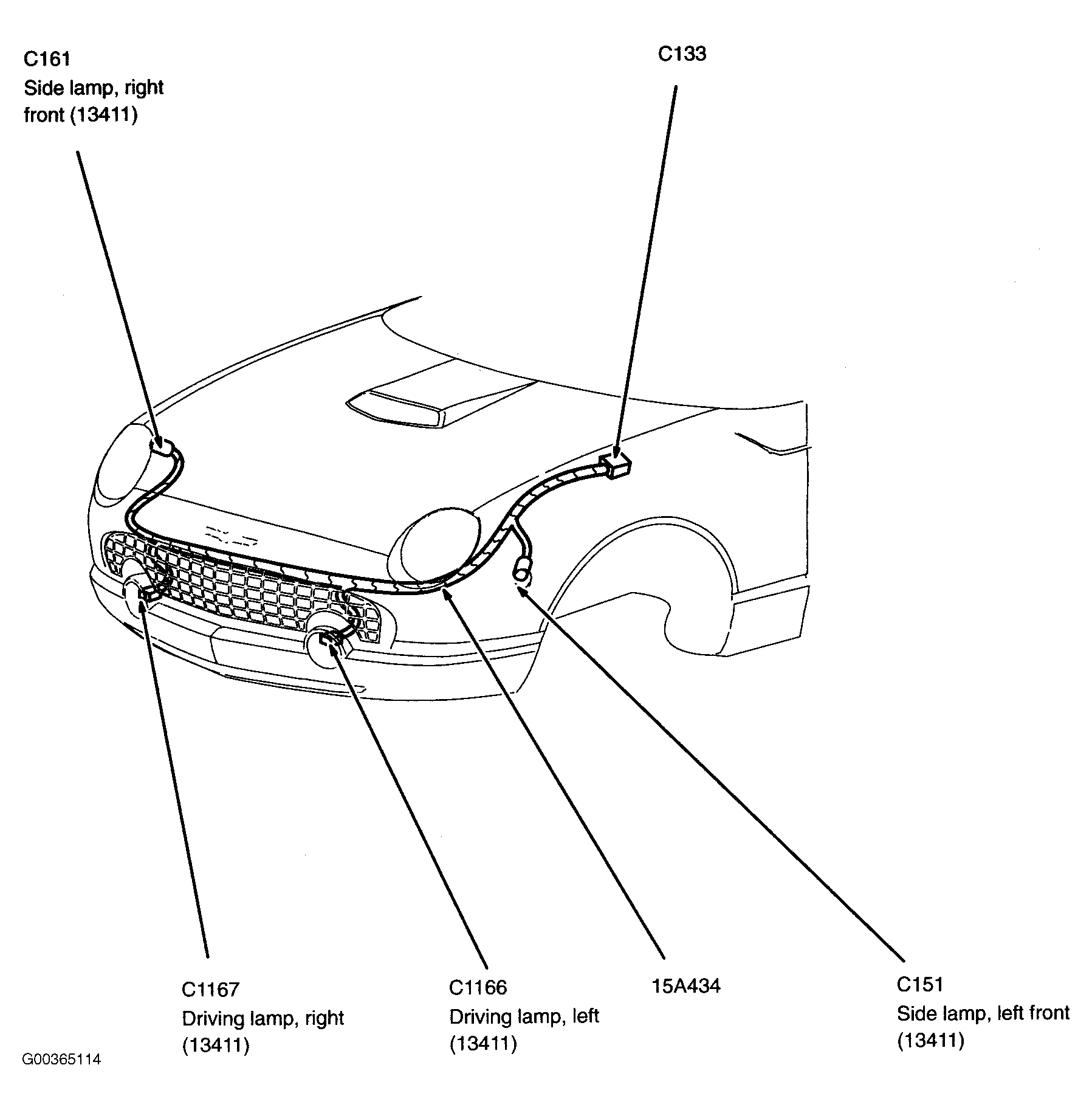

| C133 (Gray, 8 Pin) | At left front fender. See Figure. |
| C134 (4 Pin) | At right shock tower. See Figure. |
| C139 (Black, 12 Pin) | At right shock tower. See Figure. |
| C140 (2 Pin) | At right front fender. See Figure. |
| C210 (3 Pin) | Left side of dash. See Figure. |
| C211 (3 Pin) | Left side of dash. See Figure. |
| C212 (16 Pin) | Left side of dash. See Figure. |
| C213 (12 Pin) | At left "A" pillar. See Figure. |
| C214 (20 Pin) | Left side of dash. See Figure. |
| C215 (20 Pin) | Behind dash panel. See Figure. |
| C219 (16 Pin) | Behind right side of dash panel. See Figure. |
| C237 (3 Pin) | Behind dash panel. See Figure. |
| C238 (16 Pin) | Behind dash panel. See Figure. |
| C248 (20 Pin) | At left "A" pillar. See Figure. |
| C260 (20 Pin) | Under right side of dash. See Figure. |
| C264 (4 Pin) | Under right side of dash. See Figure. |
| C265a (1 Pin) | Left corner of dash. See Figure. |
| C265b (1 Pin) | Left corner of dash. See Figure. |
| C268 (8 Pin) | Behind dash panel. See Figure. |
| C275 (2 Pin) | Behind dash panel. See Figure. |
| C300 (4 Pin) | Under right front seat. See Figure. |
| C311 (Gray, 4 Pin) | At right side of vehicle floor. See Figure. |
| C312 (Gray, 4 Pin) | At left side of vehicle floor. See Figure. |
| C313 (2 Pin) | At right front seat. See Figure. |
| C314 (2 Pin) | At left side of vehicle floor. See Figure. |
| C315 (2 Pin) | At right rear of vehicle. See Figure. |
| C316 (10 Pin) | At left side of vehicle floor. See Figure. |
| C327 (10 Pin) | Under right front seat. See Figure. |
| C328 (4 Pin) | At left rear of vehicle. See Figure. |
| C405 (6 Pin) | At left side of luggage compartment. See Figure. |
| C410 (Gray, 6 Pin) | At rear underbody of vehicle. See Figure. |
| C411 (Gray, 8 Pin) | At rear underbody of vehicle. See Figure. |
| C510 (8 Pin) | In left front door. See Figure. |
| C610 (8 Pin) | In right front door. See Figure. |
| C1168 (Gray, 6 Pin) | On right front side of engine compartment. See Figure. |
