Cylinder Head: Notes

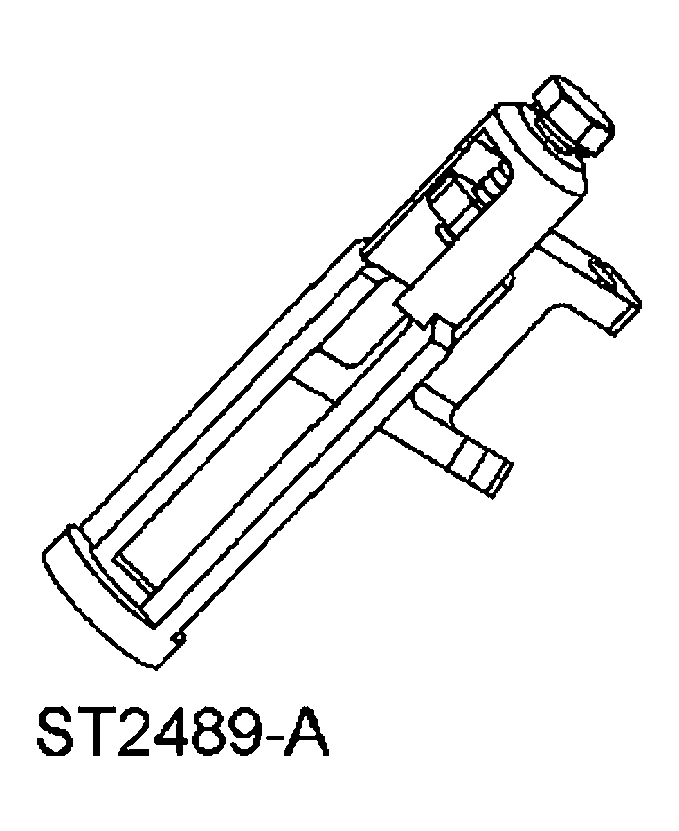

SPECIAL TOOLS DESCRIPTION

G04007354
 Compressor, Valve Spring 303-648
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent WSS-M2C930-A

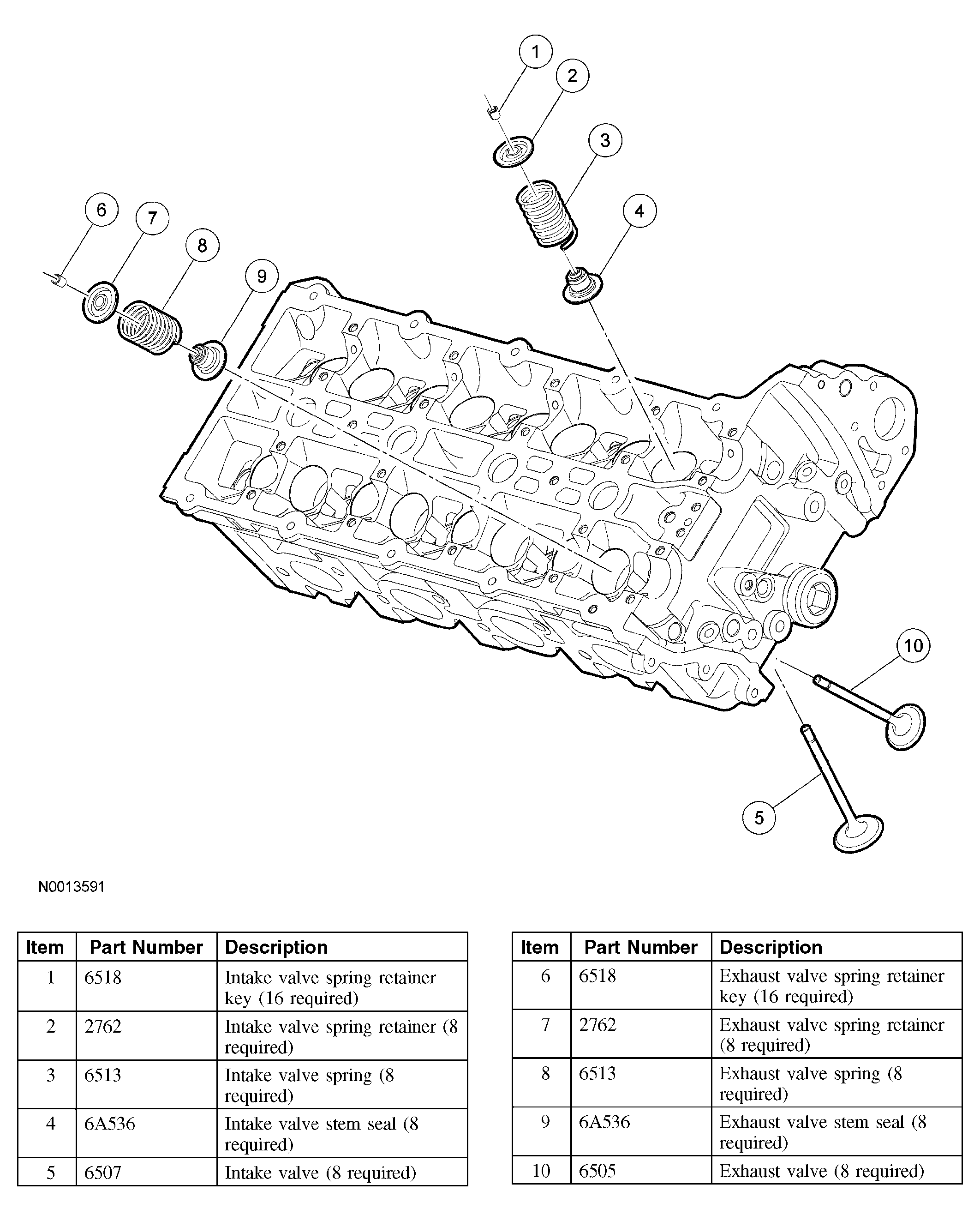

Fig 1: Identifying Cylinder Head Components
G04007643Courtesy of FORD MOTOR CO.
