Engine Front Cover: Notes

MATERIAL SPECIFICATIONS

Item Specification
Metal Surface Cleaner ZC-21 WSE-M5B392-A
Silicone Gasket and Sealant TA-30 or equivalent WSE-M4G323-A4
SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP WSS-M2C930-A

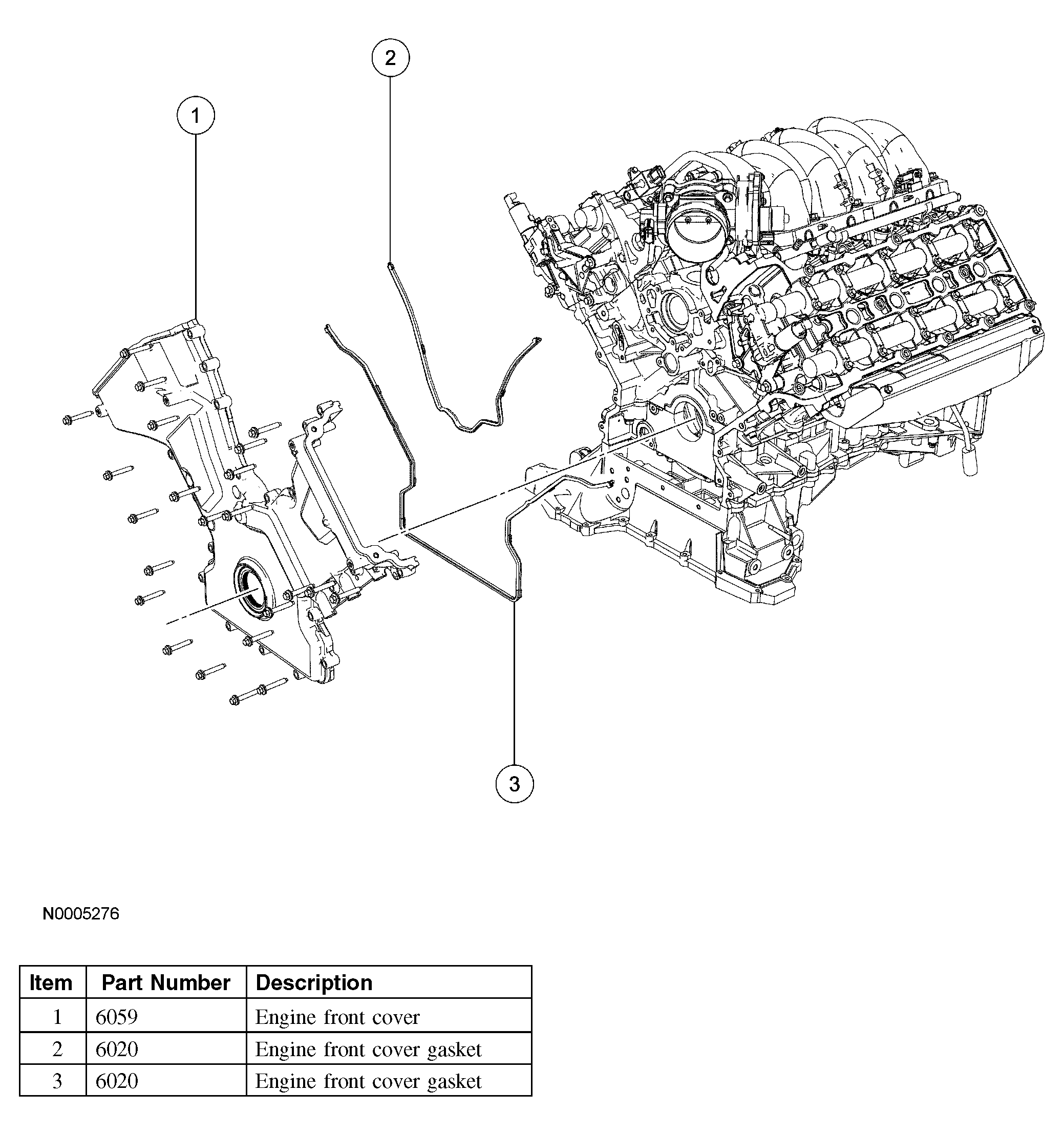

Fig 1: Identifying Engine Front Cover
G04007274Courtesy of FORD MOTOR CO.
