Engine Mount: Notes

SPECIAL TOOLS DESCRIPTION

G03898369
 Lifting Bracket, Engine 303-050 (T70P-6000)
G03950580

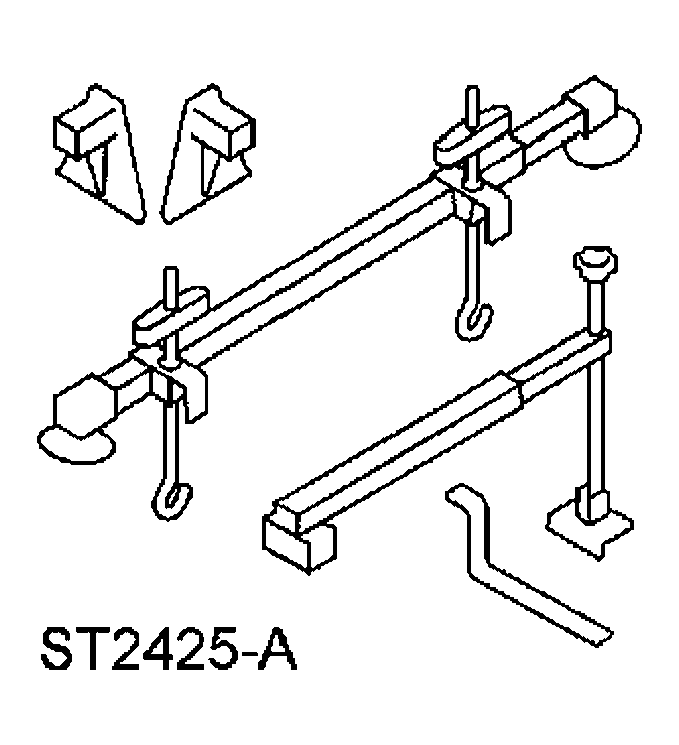

 Three-Bar Engine Support Kit 303-F072

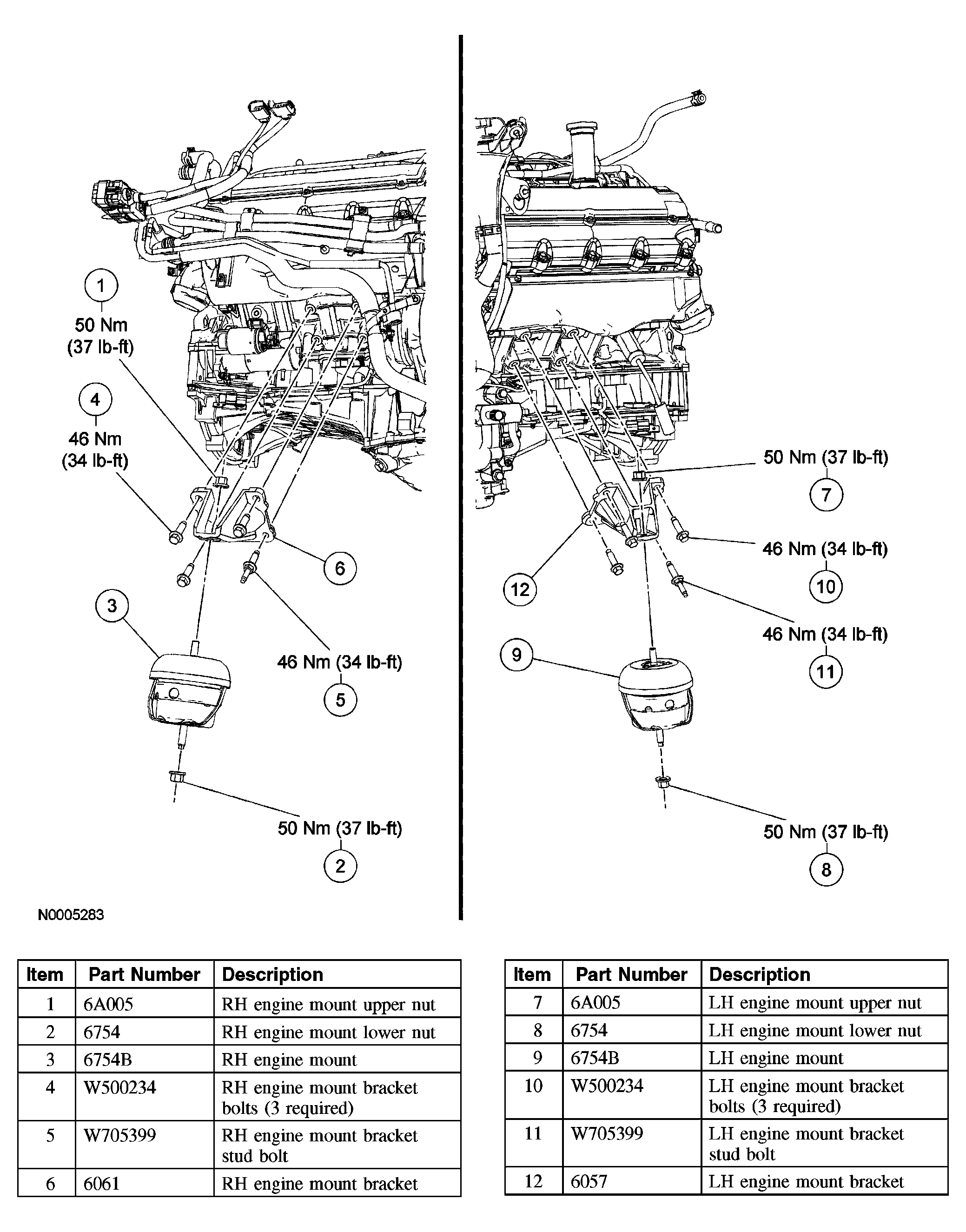

Fig 1: Engine Mount Replacement Components With Torque Specifications
G04007378Courtesy of FORD MOTOR CO.
