Intake Manifold: Notes

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft Metal Surface Cleaner ZC-21	WSE-M5B392-A

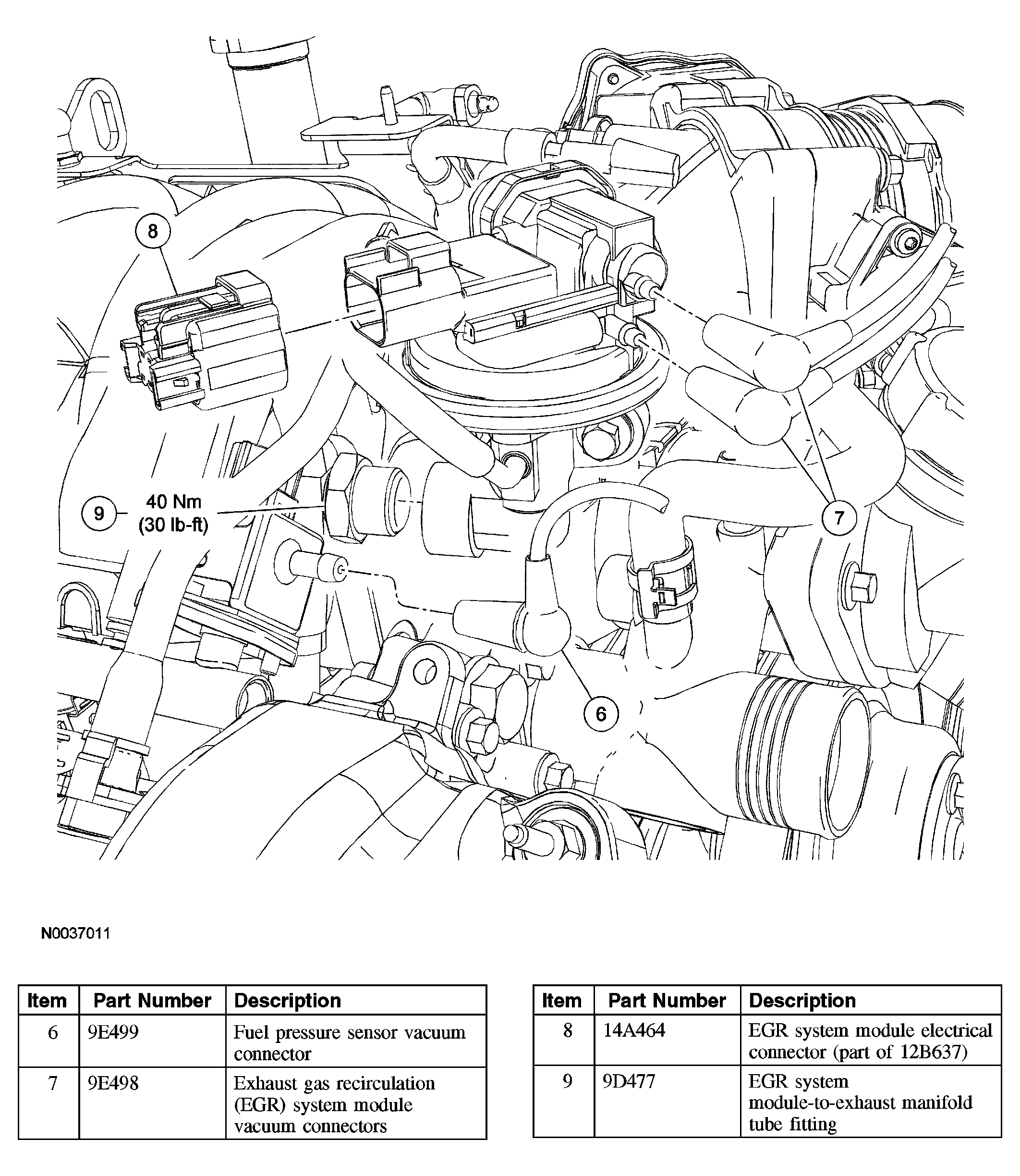

Fig 1: Identifying Intake Manifold (1 Of 4)

Courtesy of FORD MOTOR CO.

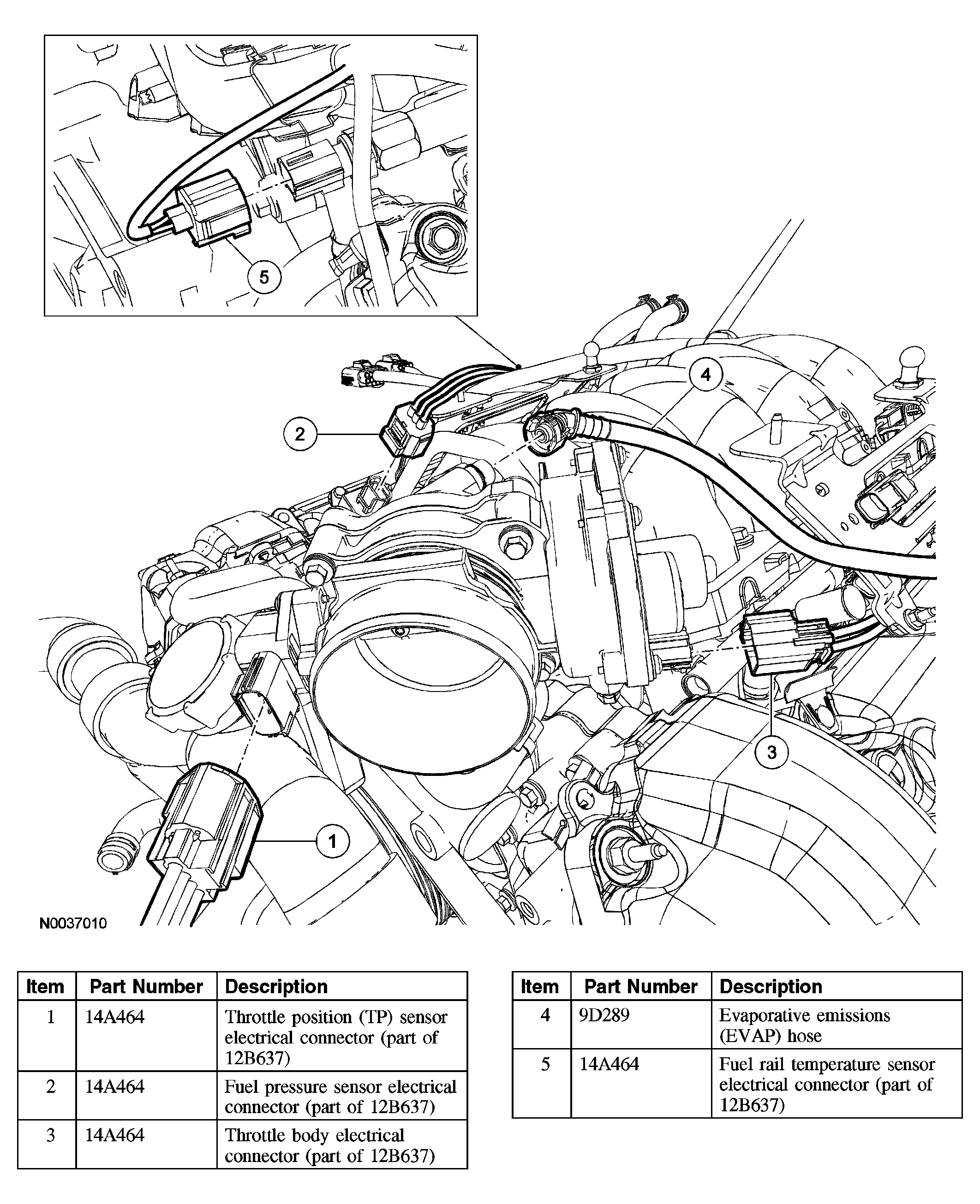

Fig 2: Intake Manifold With Torque Specification (2 Of 4)

Courtesy of FORD MOTOR CO.

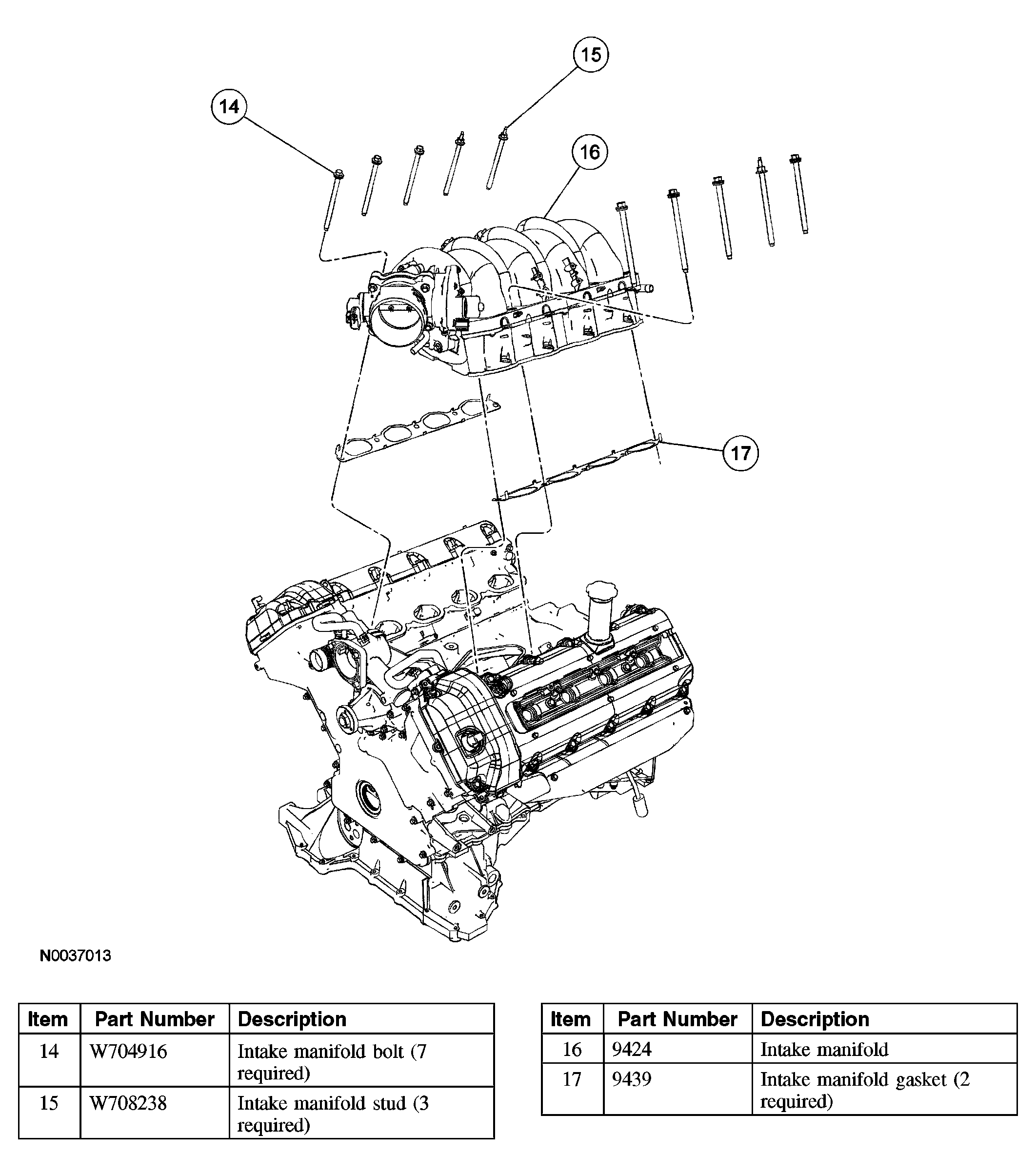

Fig 3: Intake Manifold With Torque Specifications (3 Of 4)

Courtesy of FORD MOTOR CO.

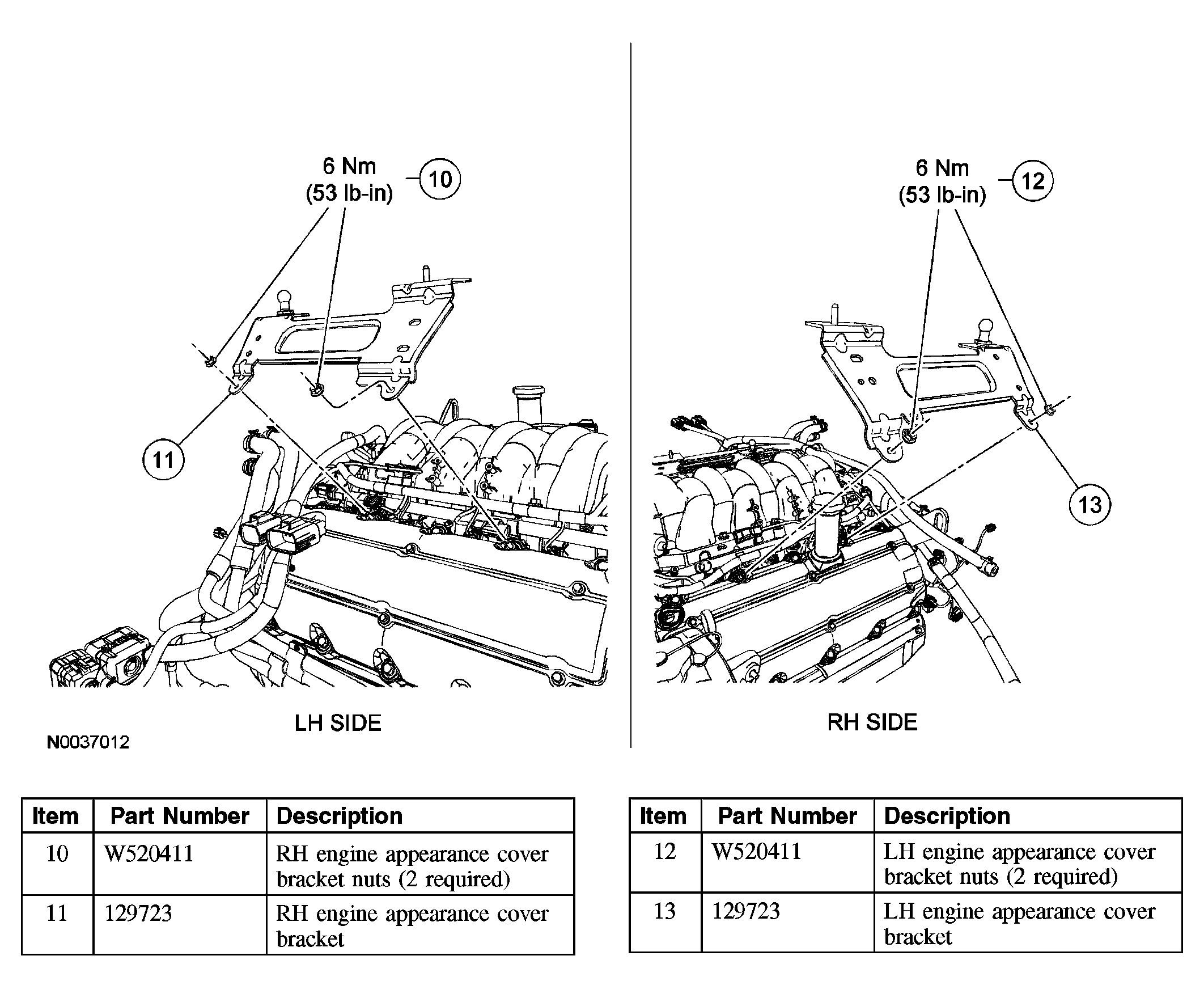

Fig 4: Identifying Intake Manifold (4 Of 4)

Courtesy of FORD MOTOR CO.
