Valve Cover - LH: Notes

MATERIAL SPECIFICATIONS

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent WSS-M2C930-A
Silicone Gasket Remover ZC-30 -
Motorcraft Metal Surface Prep ZC-31 -
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4

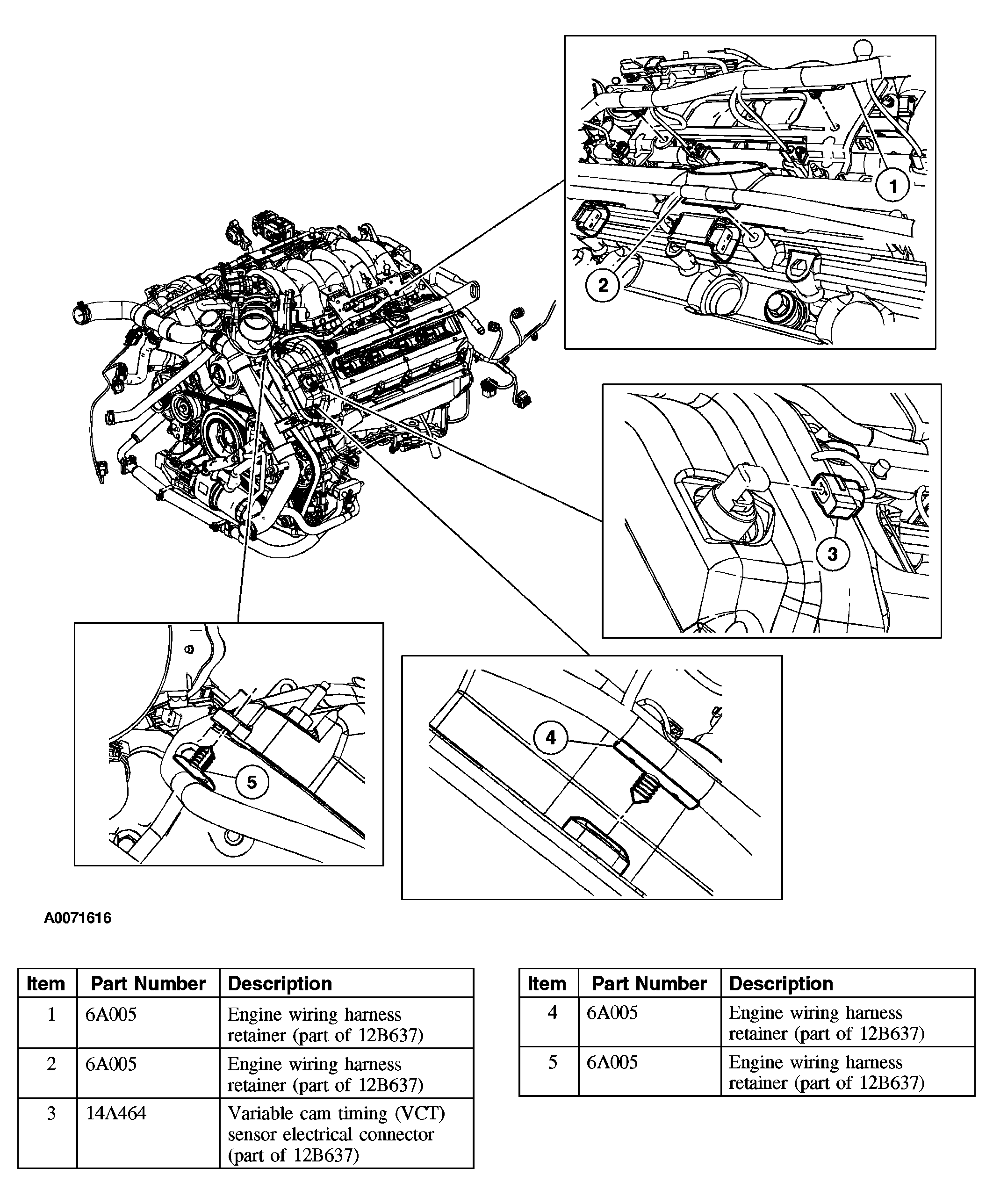

Fig 1: Identifying Engine Components (1 Of 4)
G04007237Courtesy of FORD MOTOR CO.
Fig 2: Identifying Engine Components (2 Of 4)
G03996278Courtesy of FORD MOTOR CO.
Fig 3: Identifying Engine Components (3 Of 4)
G04007239Courtesy of FORD MOTOR CO.
Fig 4: Identifying Engine Components (4 Of 4)
G04007240Courtesy of FORD MOTOR CO.
