Valve Cover - RH: Notes

MATERIAL SPECIFICATIONS

Item Specification
Silicone Gasket Remover ZC-30 -
Motorcraft Metal Surface Prep ZC-31 -
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4
Fig 1: Identifying Valve Cover Components - RH (1 Of 2)
G04007247Courtesy of FORD MOTOR CO.

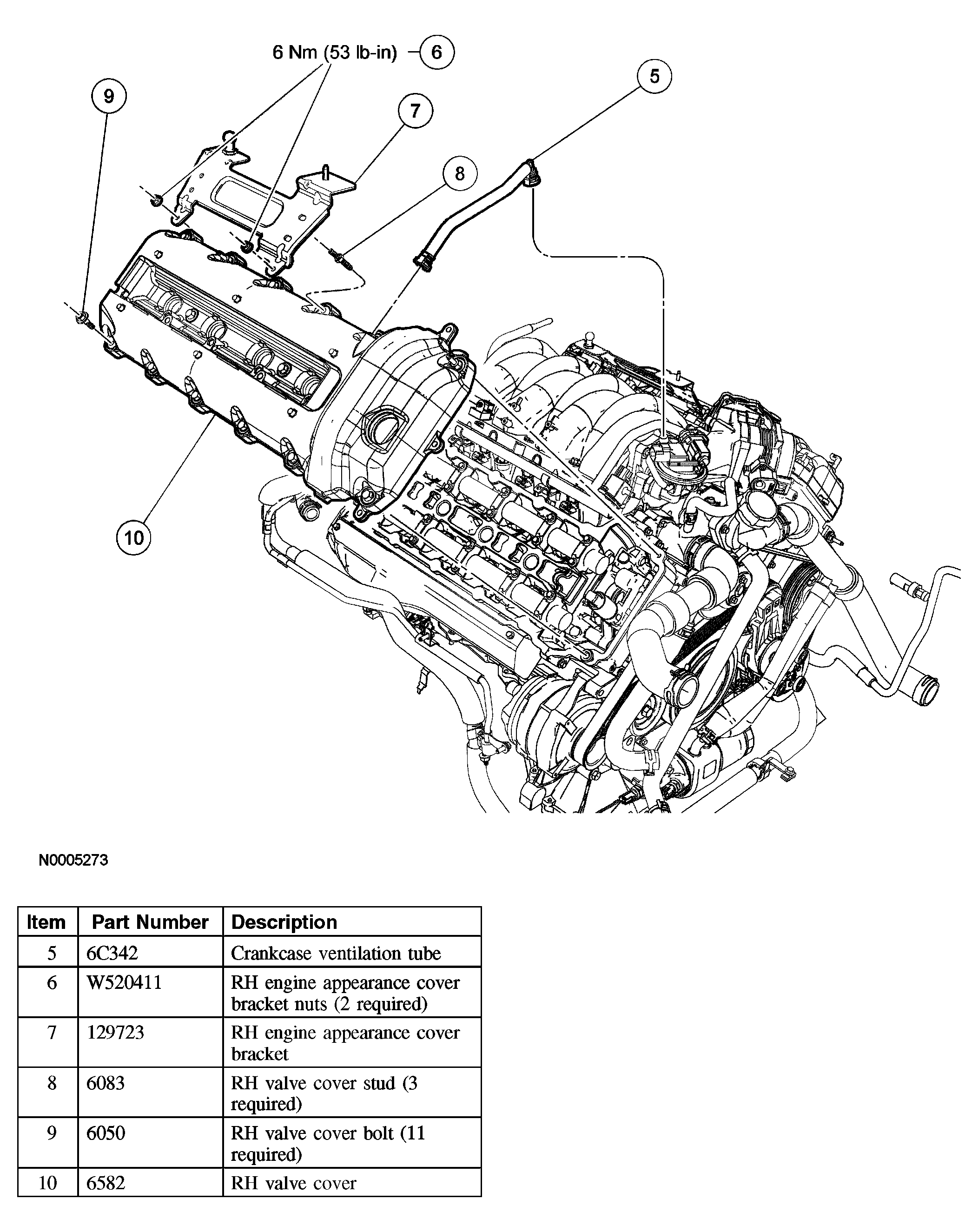

Fig 2: Identifying Valve Cover Components - RH (2 Of 2)
G04007248Courtesy of FORD MOTOR CO.
