Valve Train Components - Exploded View

NOTE: RH shown, LH similar.

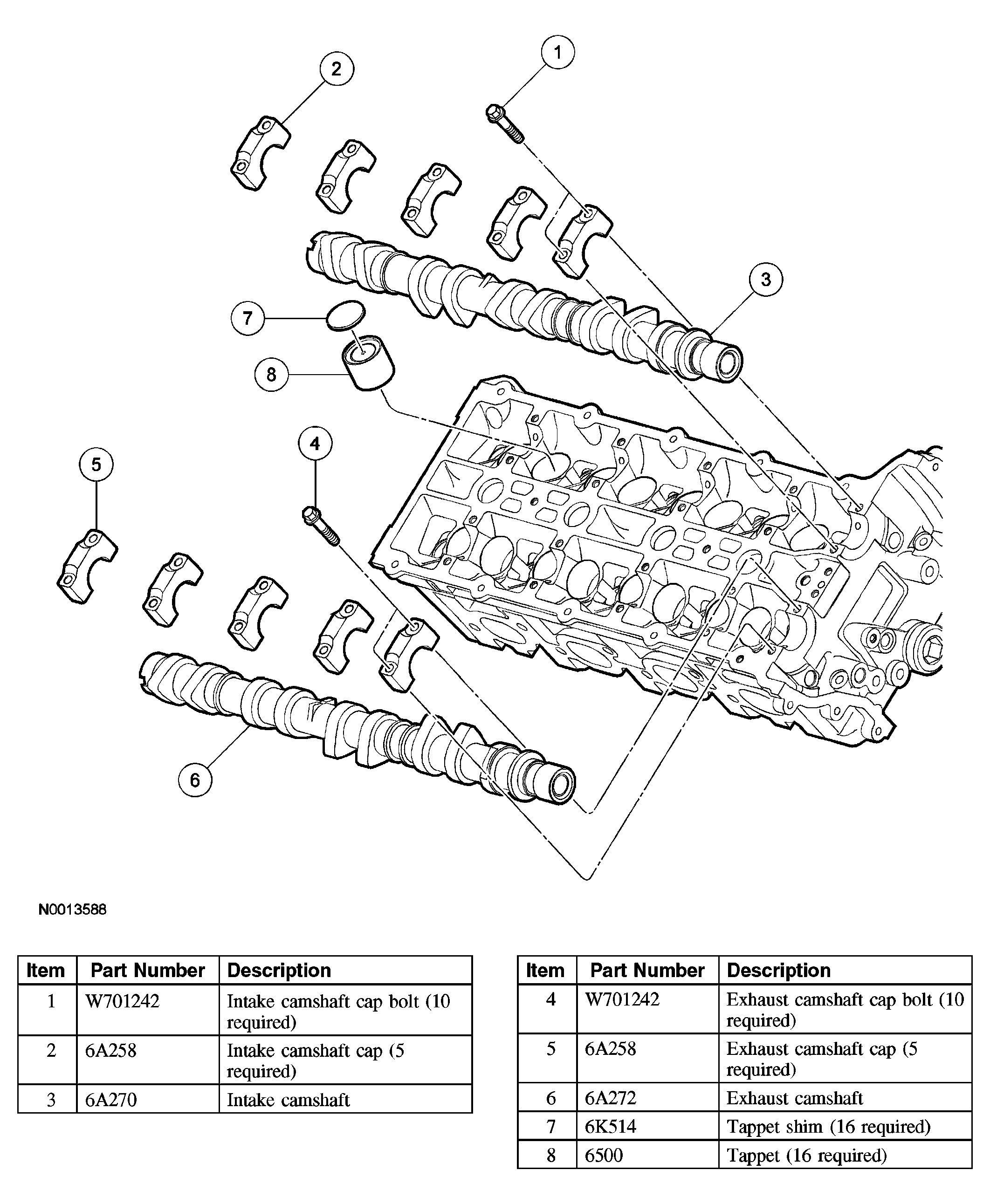

Fig 1: Exploded View Of Valve Train Components (1 Of 2)
G04007340Courtesy of FORD MOTOR CO.
NOTE: RH shown, LH similar.

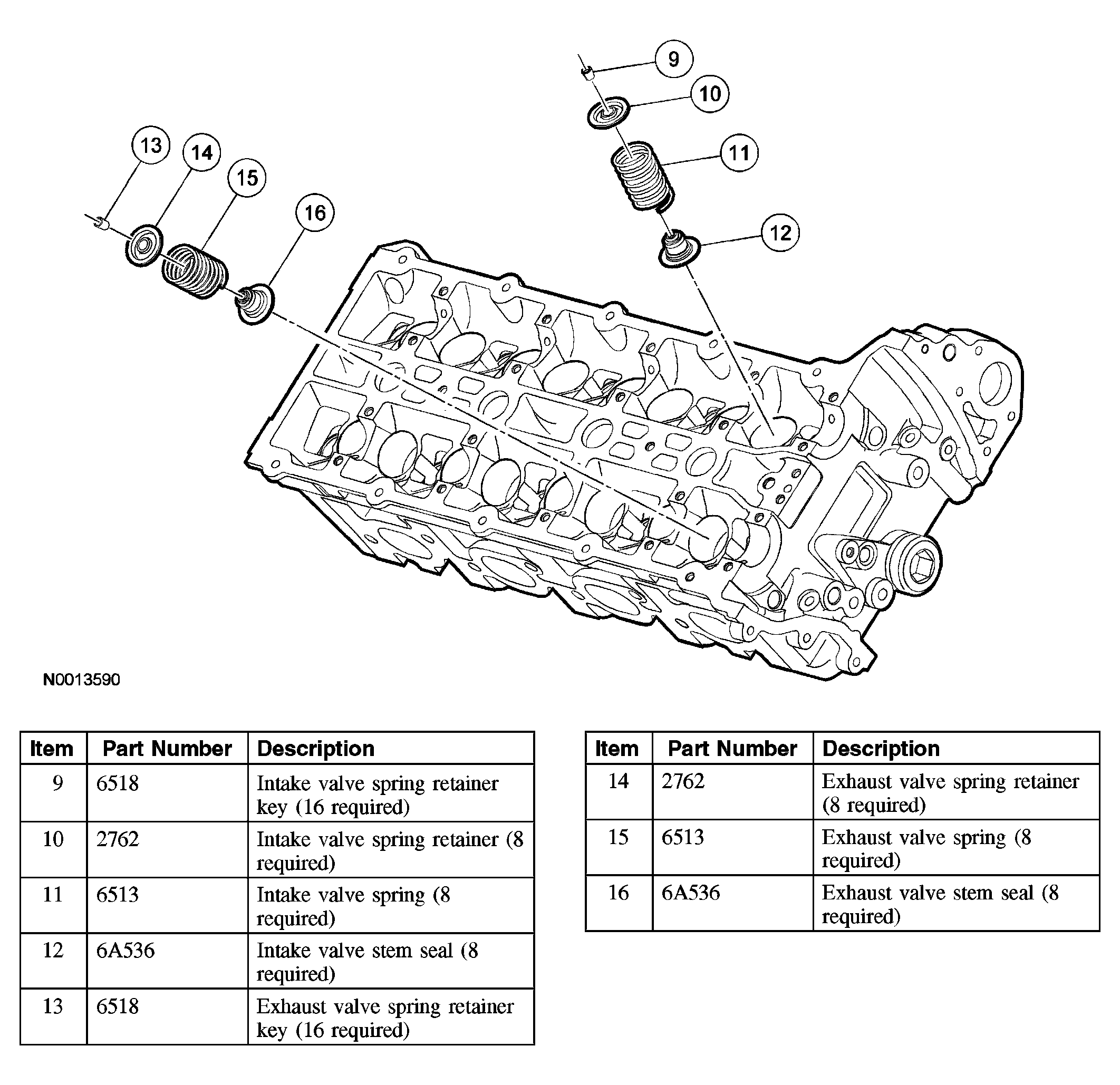

Fig 2: Exploded View Of Valve Train Components (2 Of 2)
G04007341Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
