Thunderbird
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Starter
>>
Starting System
>>
Diagnosis And Testing
>>
Starting System
>>
Connector Circuit Reference
>>
Starter Motor Relay
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Starter Motor Relay

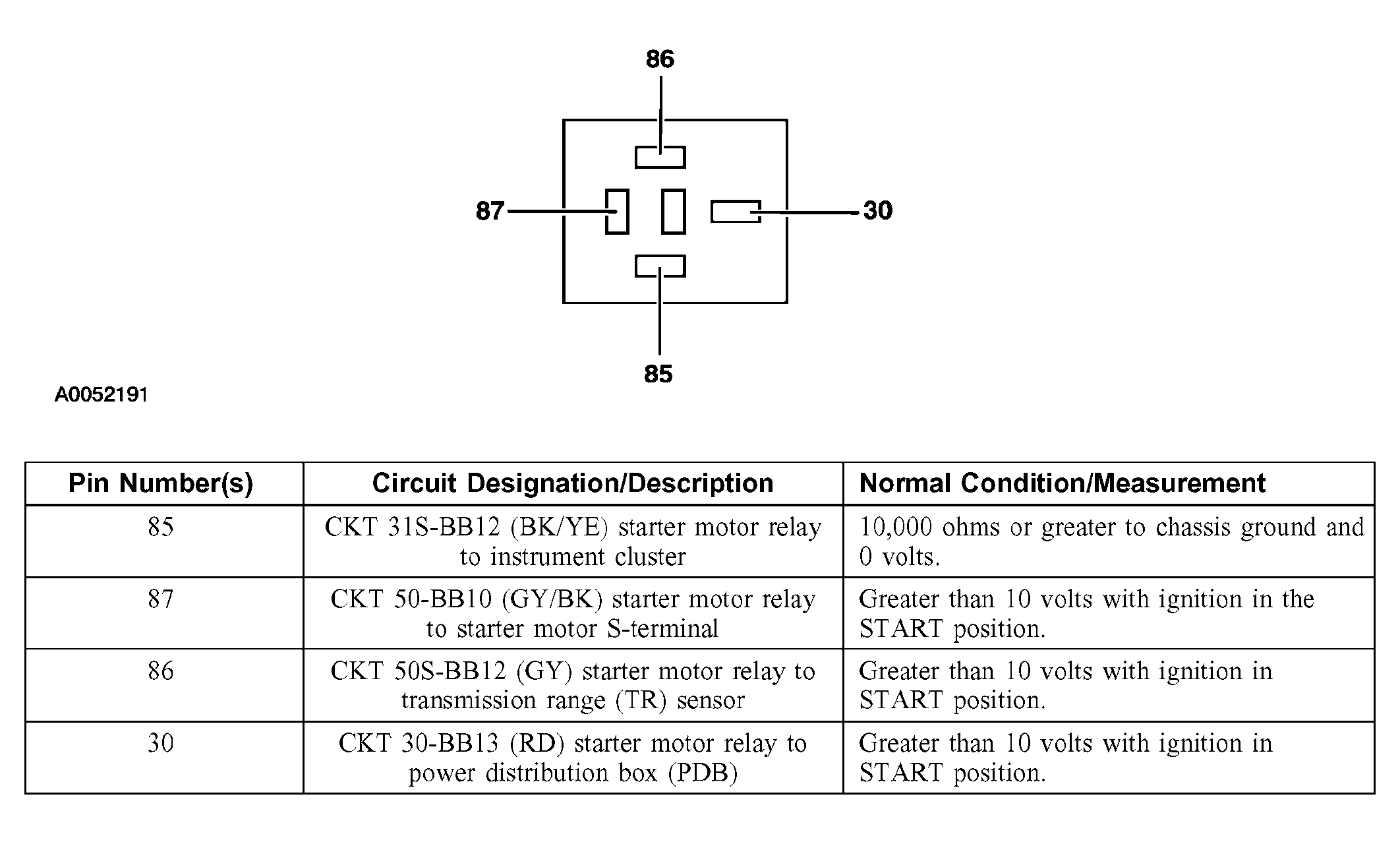

Fig 1: Identifying Starter Motor Relay Connector Pins
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
