Bearing Inspection

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect bearings for the following defects:
    1. Cratering - fatigue failure
    2. Spot polishing - incorrect seating
    3. Imbedded dirty engine oil
    4. Scratching - dirty engine oil
    5. Base exposed - poor lubrication
    6. Both edges worn - journal damaged
    7. One edge worn - journal tapered or bearing not seated

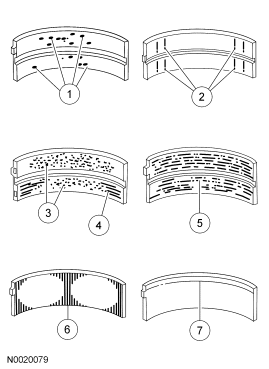

      Fig 1: Inspecting Bearings
      G03885074Courtesy of FORD MOTOR CO.
