Connecting Rod Bend

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Measure the connecting rod bend on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the bend measurement is within specification.
- If out of specification, install new components as necessary. Refer to ENGINE for the procedure.

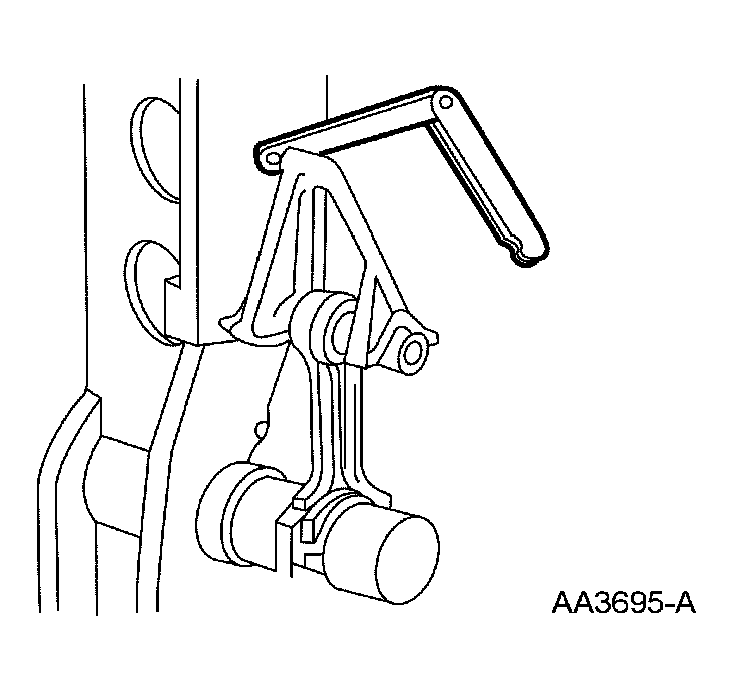

  Fig 1: Measuring Connecting Rod Bend
  Courtesy of FORD MOTOR CO.
