Child Safety Seat Tether Anchor - LATCH: Notes

MATERIAL CHART

Item Specification
High Strength Threadlocker TA-26 WSK-M2G351-A6

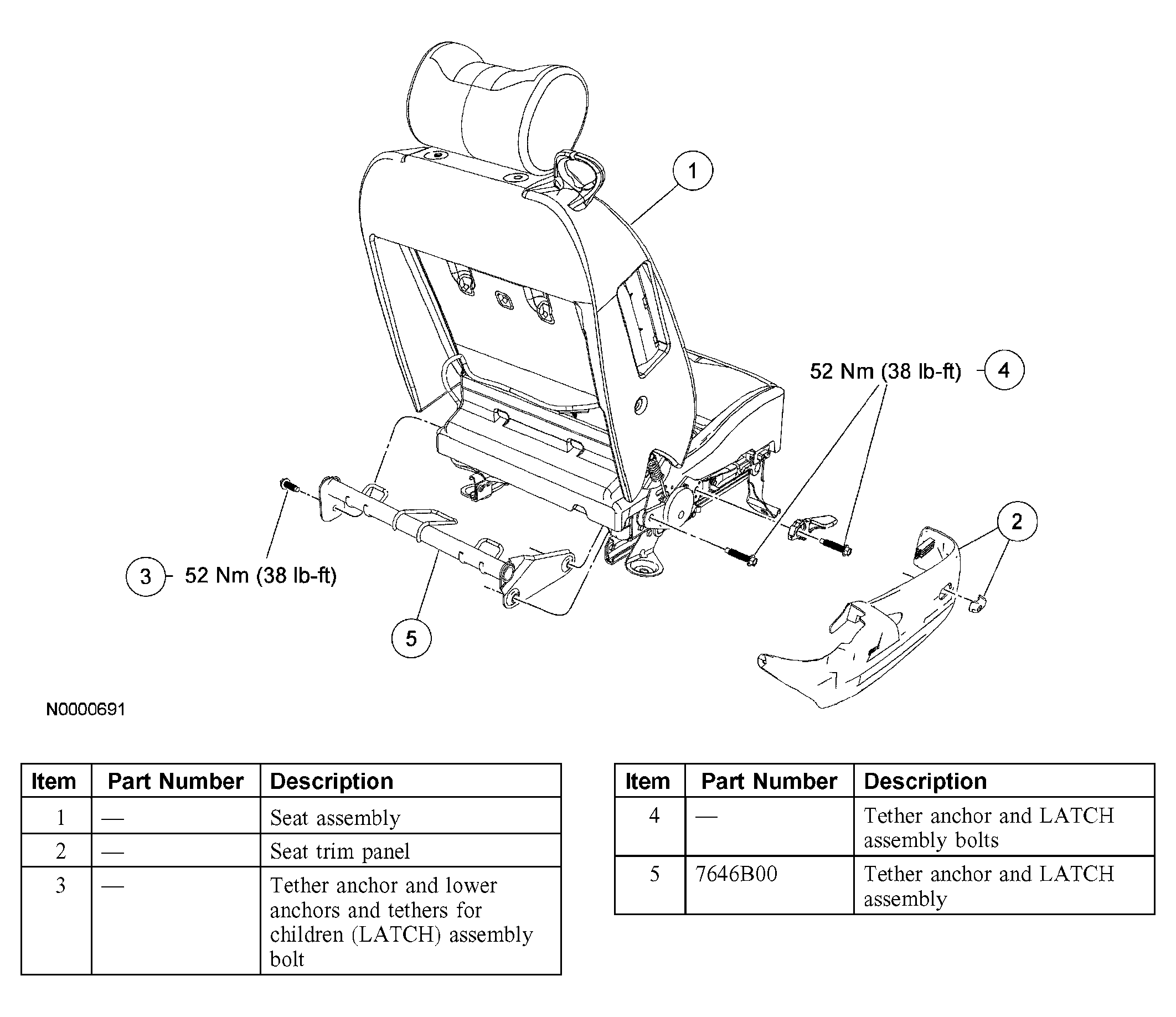

Fig 1: Identifying Child Safety Seat Tether Anchor - Latch
G04010061Courtesy of FORD MOTOR CO.
