Safety Belt System - Exploded View

NOTE: Passenger side shown, driver side similar.

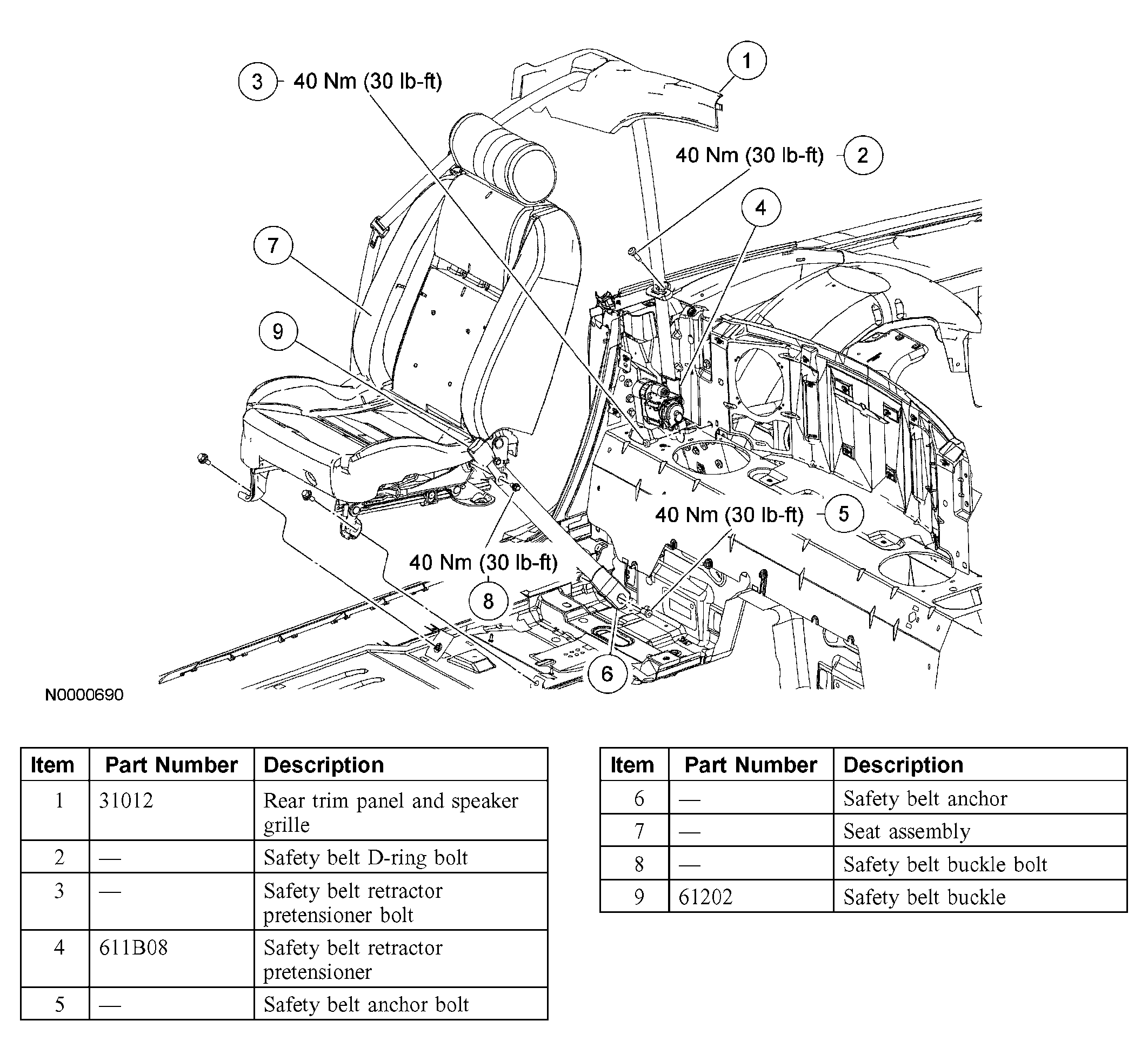

Fig 1: Exploded View Of Front Safety Belt System
G04010060Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
