Connector Circuit Reference

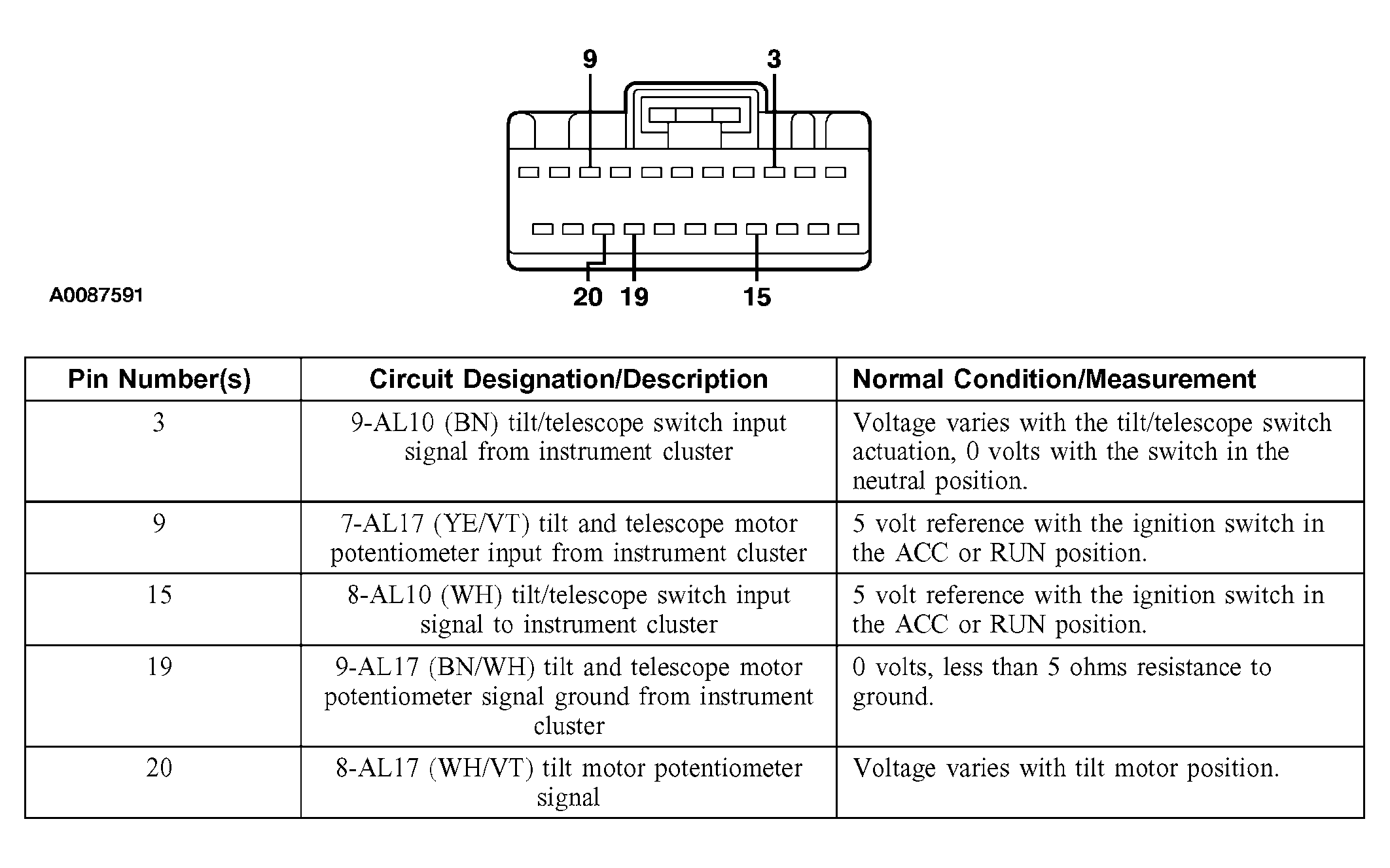

Instrument Cluster Module (ICM) C220c

Fig 1: Identifying Instrument Cluster Module C220C Connector Pins

Courtesy of FORD MOTOR CO.

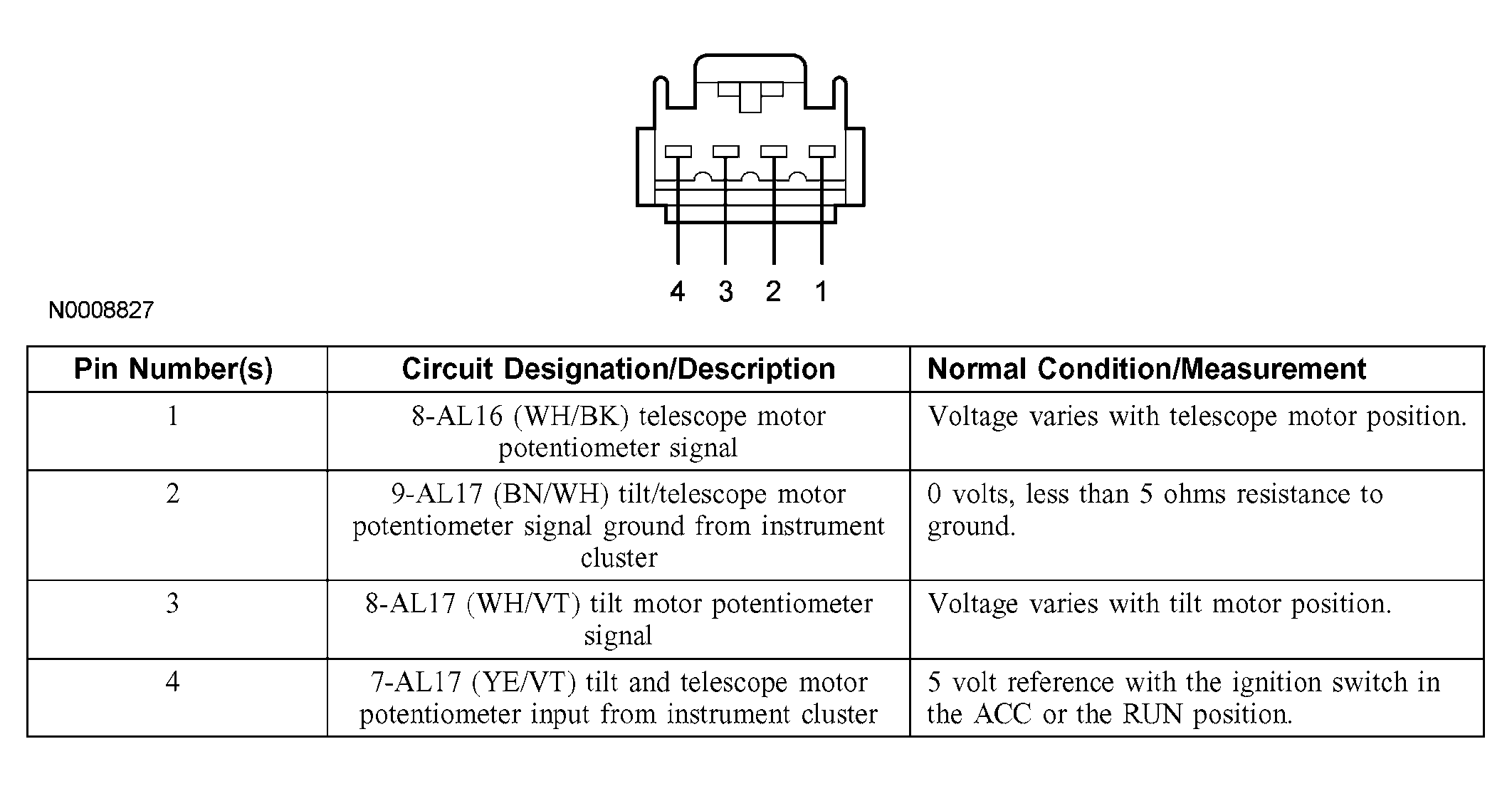

Steering Column Potentiometer C222

Fig 2: Identifying Steering Column Potentiometer C222 Connector Pins

Courtesy of FORD MOTOR CO.

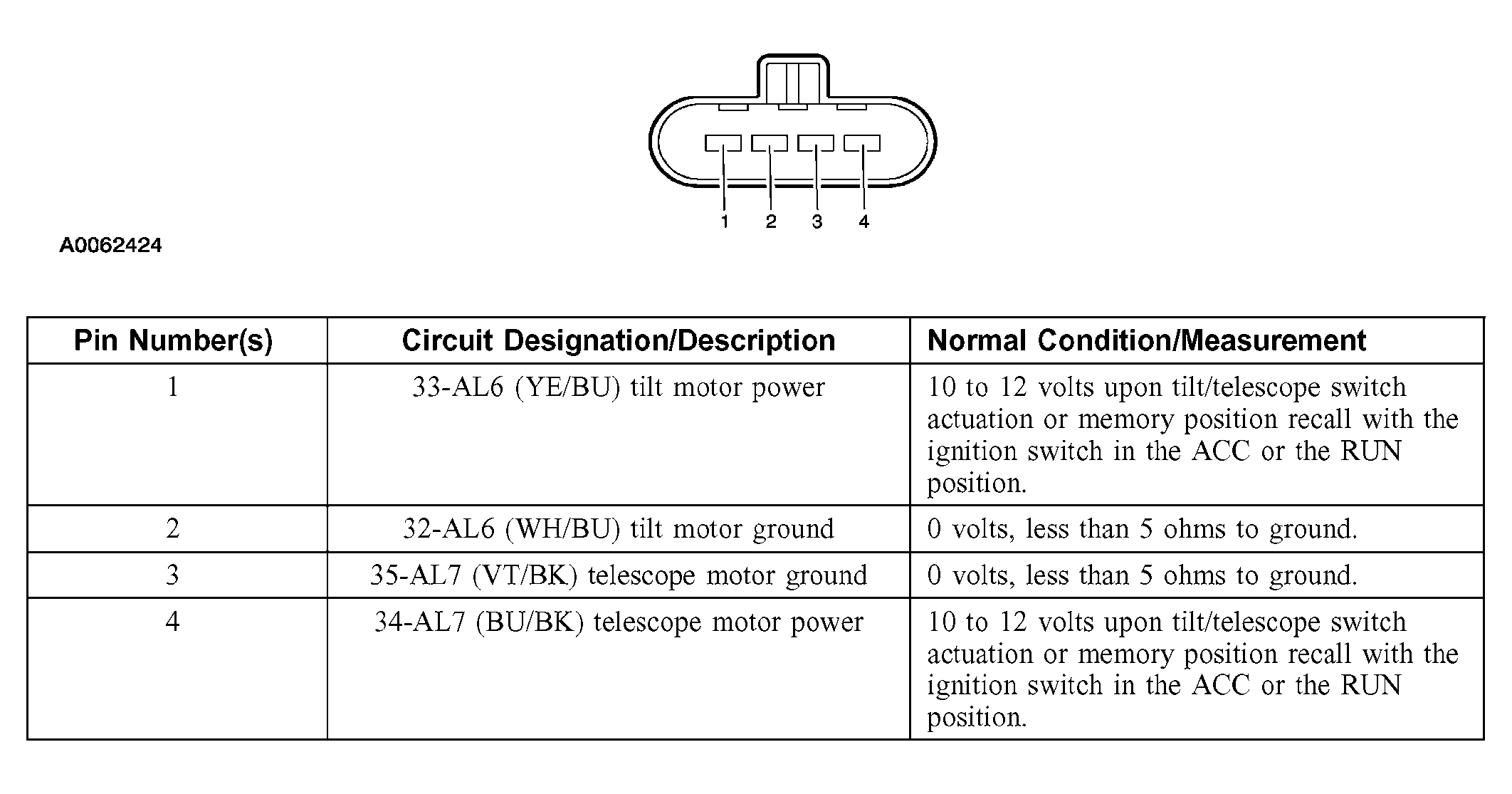

Tilt/Telescope Motor C227

Fig 3: Identifying Tilt/Telescope Motor C227 Connector Pins

Courtesy of FORD MOTOR CO.

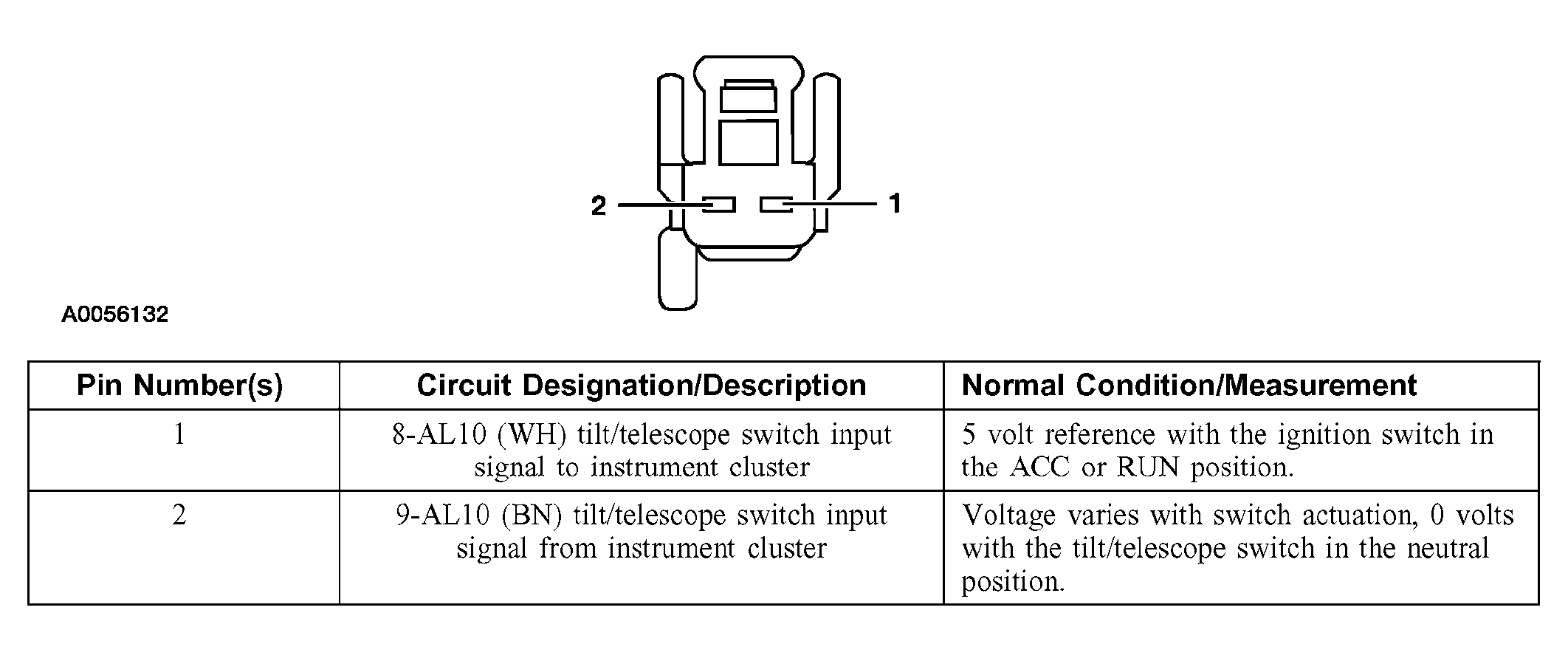

Tilt/Telescope Switch C2250

Fig 4: Identifying Tilt/Telescope Switch C2250 Connector Pins

Courtesy of FORD MOTOR CO.
