Diagnosis And Testing: Diagnostics: Notes

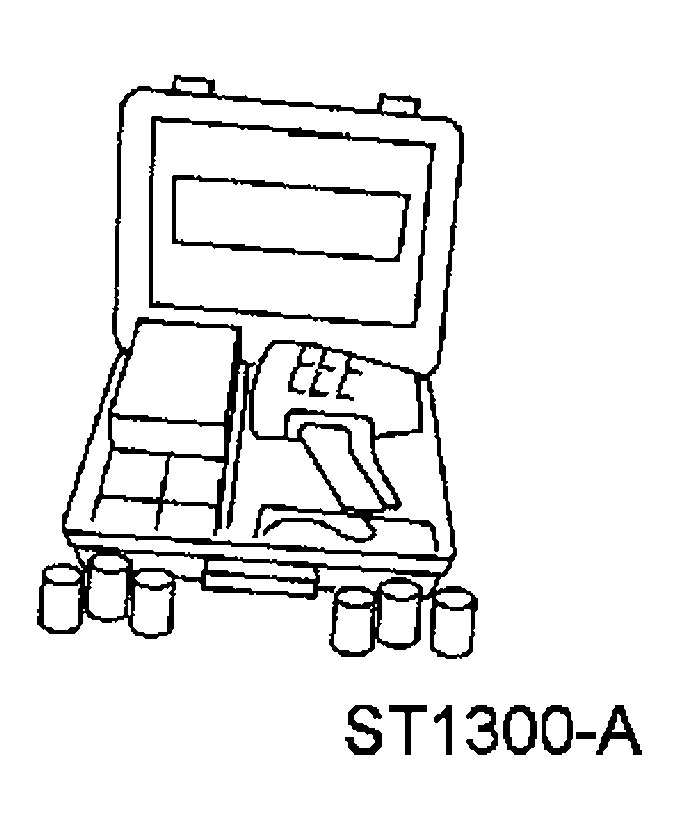

	UV Leak Detector 164-R0756 or equivalent

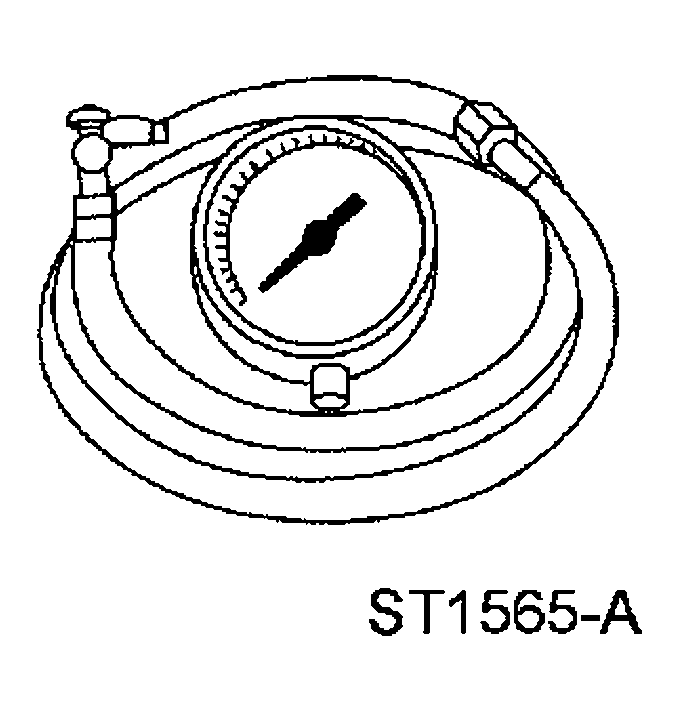

	Pressure Gauge, Transmission Fluid 307-004 (T57L-77820-A)

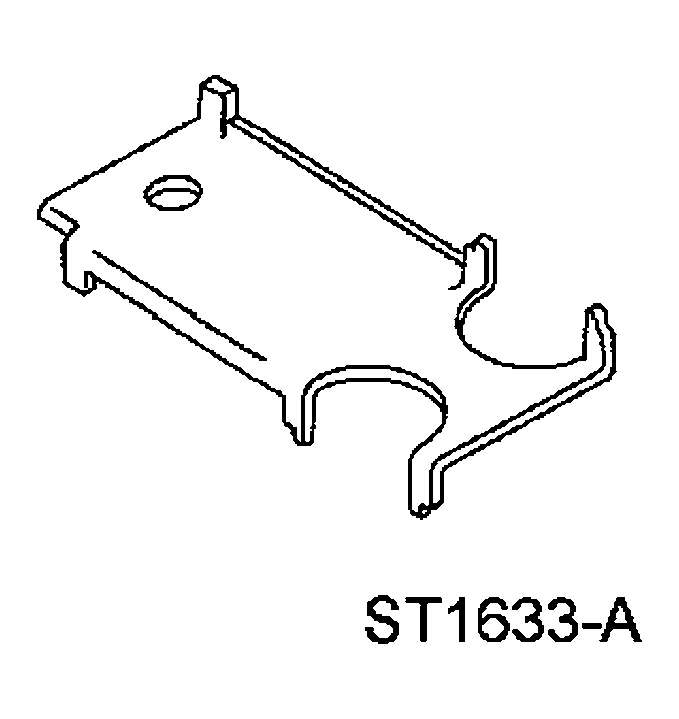

	Alignment Gauge, TR Sensor 307-351 (T97L-70010-A)

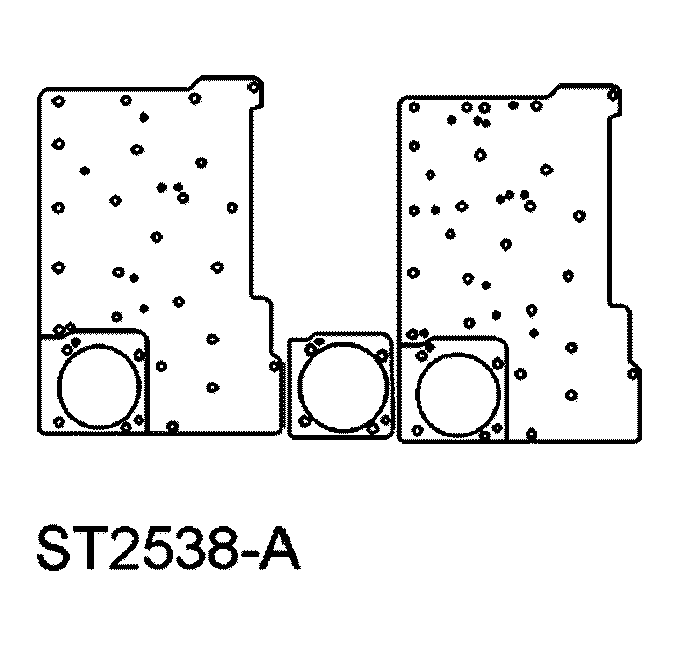

	Transmission Test Plate and Gasket 307-433-01, 307-433-02, 307-433-03
	73 III Automotive Meter 105-R0057 or equivalent

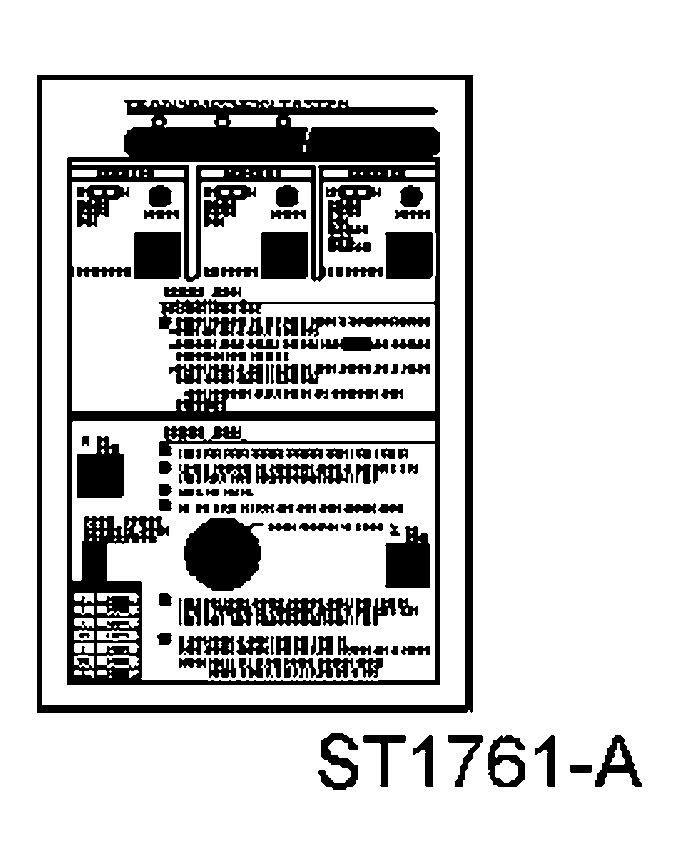

	Trans Tester TR/MLP Overlay and Manual 007-00131 or equivalent

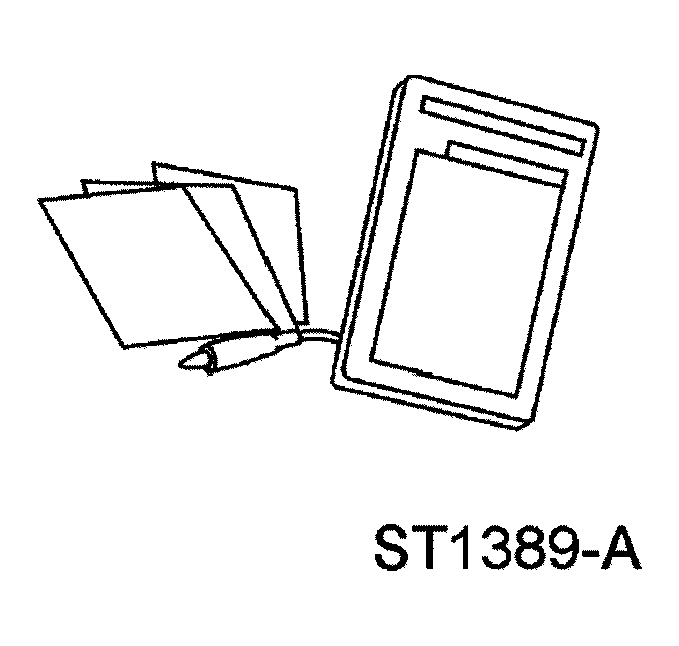

	Worldwide Diagnostic System (WDS) Vehicle Communication module (VCM) with appropriate adapters, or equivalent diagnostic tool

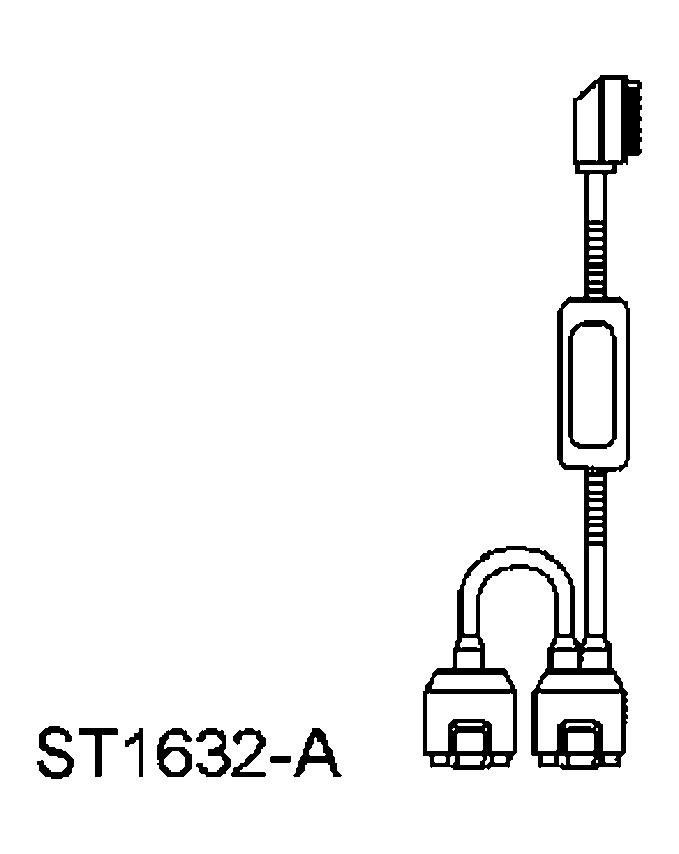

	MLP-TR Cable 418-F107 (007-00111) or equivalent
	Transmission Tester 307-F016 (007-00130) or equivalent

Diagnosing electronically controlled automatic transmissions is simplified using the following procedures. It is important to remember that there is a definite procedure to follow. Do not take shortcuts or assume that critical checks or adjustments have already been made. Follow the procedures as written to avoid missing critical components or steps. By following the diagnostic sequence, the technician will be able to diagnose and repair the concern the first time.
