Powertrain Control Module (PCM)

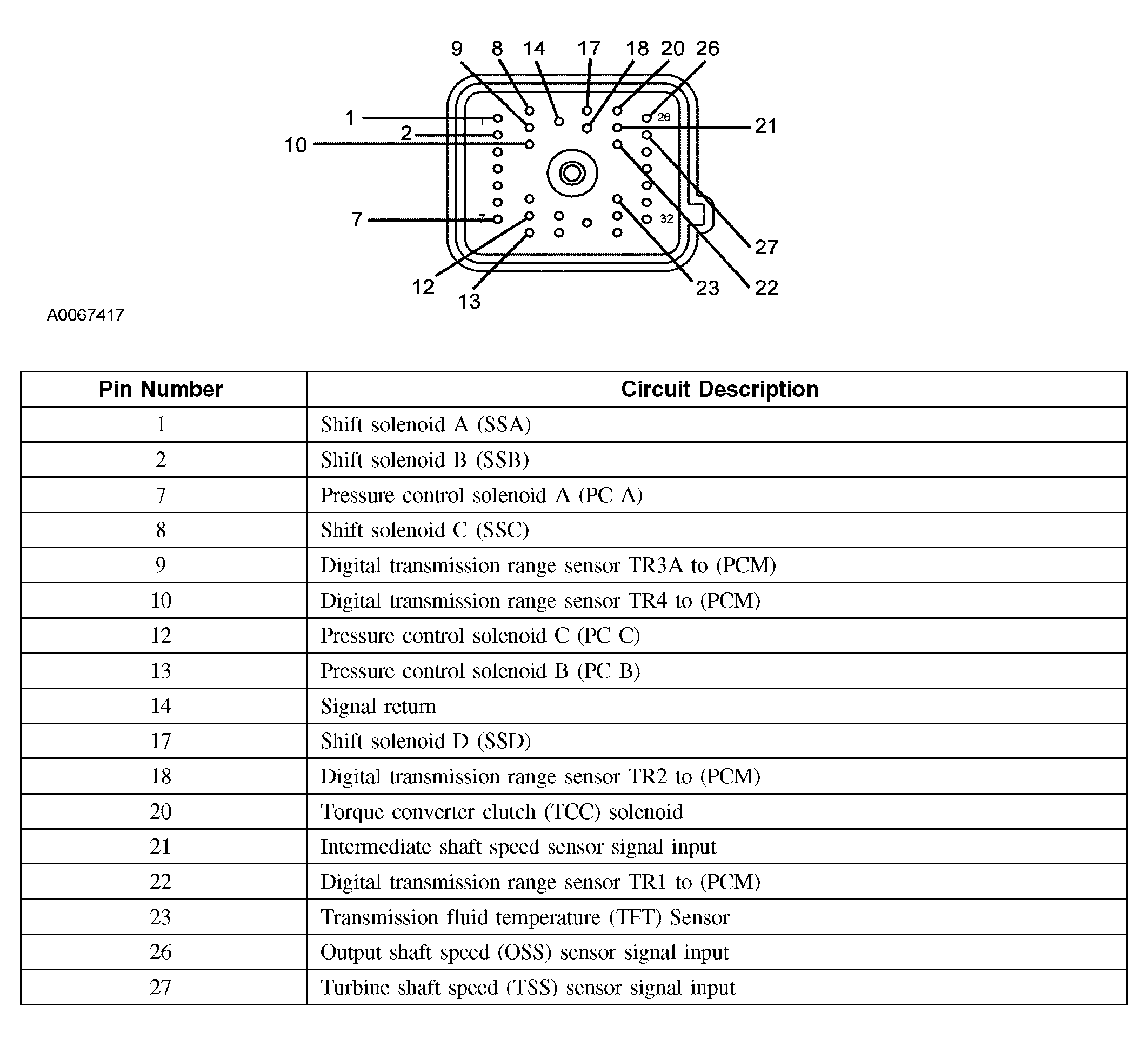

Fig 1: Identifying Connector Terminals Powertrain Control Module
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
