Direct Clutch Drum Assembly: Notes

SPECIAL TOOLS

G03915058
 Compressor, Clutch Spring 307-015 (T65L-77515-A)

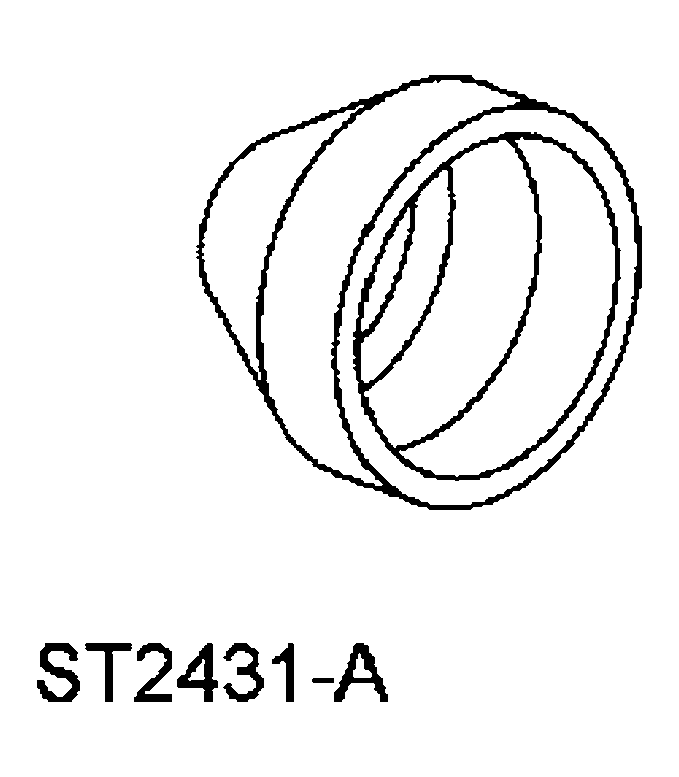

G04008451
 Protector, Piston Seal 307-049 (T74P-77404-A)
MATERIAL SPECIFICATION

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V
Fig 1: Identifying Components Direct Clutch Drum Assembly
G04008452Courtesy of FORD MOTOR CO.
