Fluid Pump: Disassembly

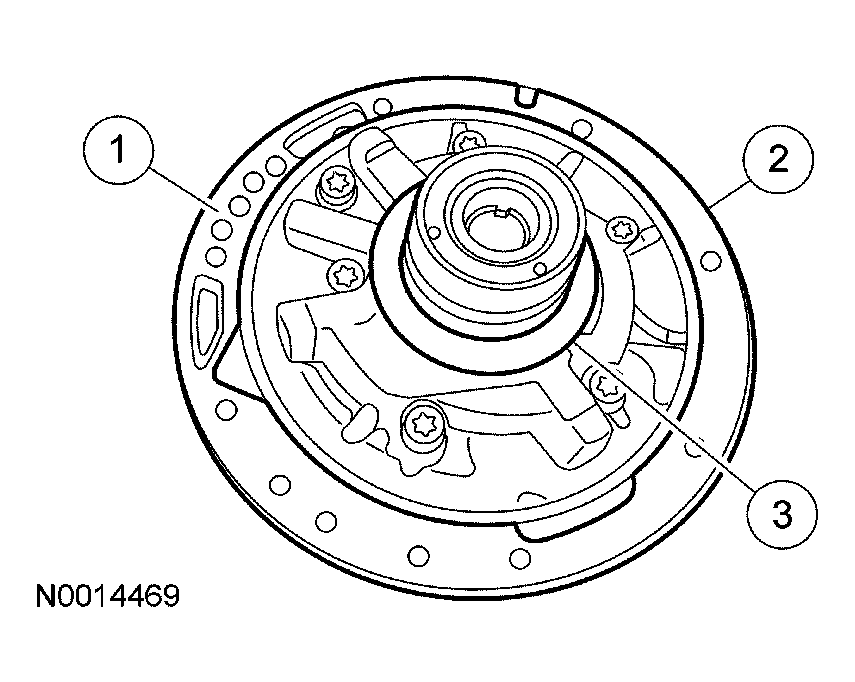

Remove the fluid pump gasket, fluid pump seal ring, and the No. 1 thrust washer.
1. Remove and discard the fluid pump gasket.
2. Remove and discard the fluid pump seal ring (square cut).
3. Remove and tag the No. 1 thrust washer.

  Fig 1: Removing Fluid Pump Gasket
  Courtesy of FORD MOTOR CO.

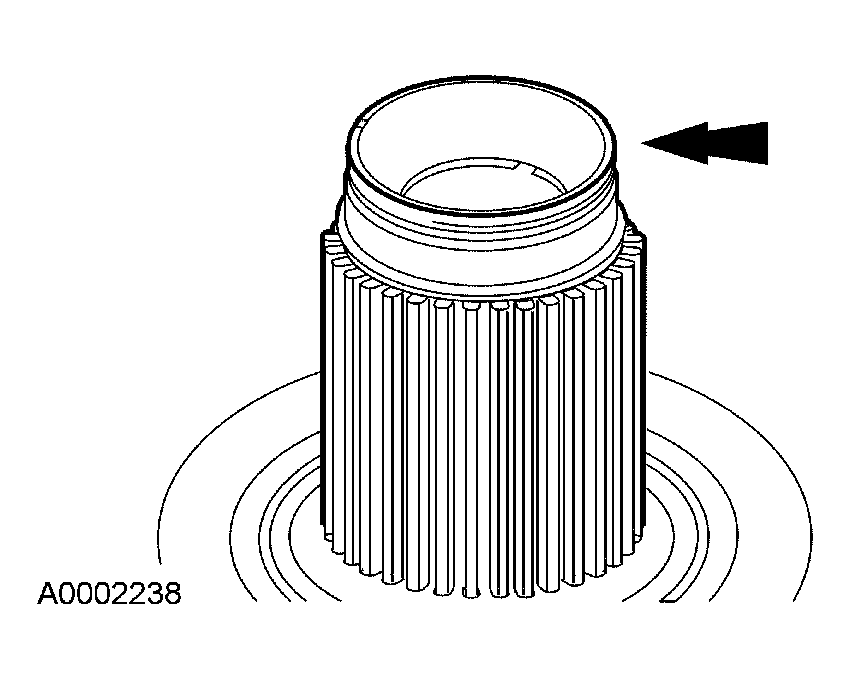

Remove the fluid pump support seal ring.

Fig 2: Verifying Seal Is Installed Correctly
Courtesy of FORD MOTOR CO.
Remove the seal rings.

Fig 3: Identifying Overdrive Brake Drum Seals
Courtesy of FORD MOTOR CO.
Remove the fluid pump housing.

Fig 4: Identifying Fluid Pump Housing Retaining Screws
Courtesy of FORD MOTOR CO.

NOTE: A rough casting on the pump surface crescent is not a flaw.

NOTE: The fluid pump gears are part of the pump assembly and are not repaired separately.

Fig 5: Identifying Fluid Pump Gears

Courtesy of FORD MOTOR CO.

Remove the fluid pump gears.
Remove the drive gear O-ring seal and discard. Inspect the fluid pump gears for cracks and scoring.

Fig 6: Identifying Fluid Pump Drive Gear O-Ring Seal
Courtesy of FORD MOTOR CO.
Inspect the overdrive pump.
- Inspect the overdrive pump support gear pockets for scoring and wear.
- Clean and inspect the overdrive and rear input shaft bushings.

  Fig 7: Identifying Overdrive Pump
  Courtesy of FORD MOTOR CO.

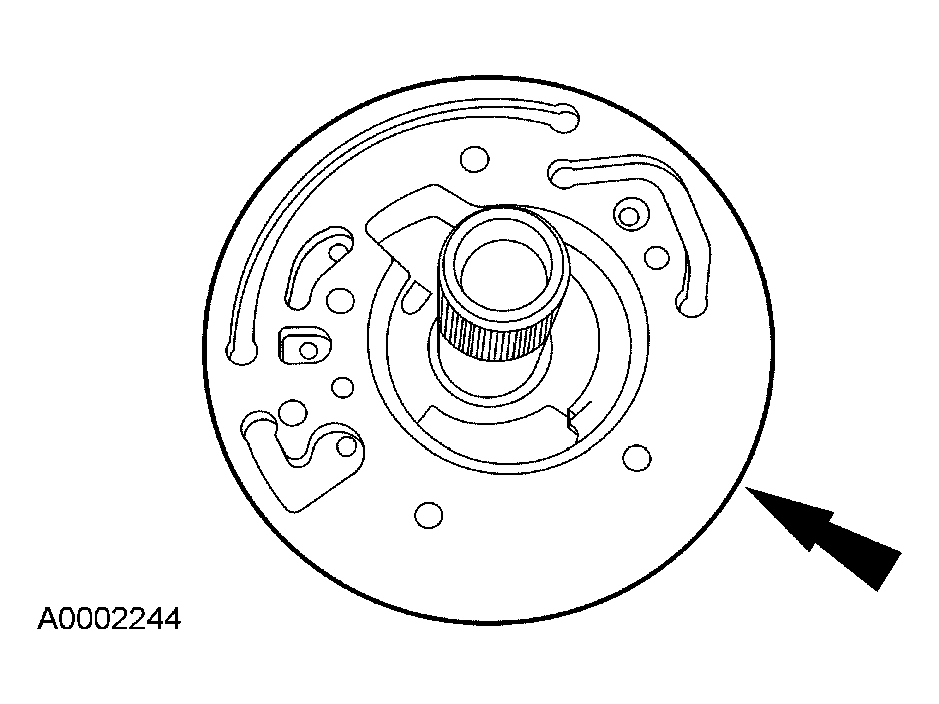

Inspect the fluid pump adapter plate for scoring and wear.

Fig 8: Inspecting Fluid Pump Adapter Plate
Courtesy of FORD MOTOR CO.

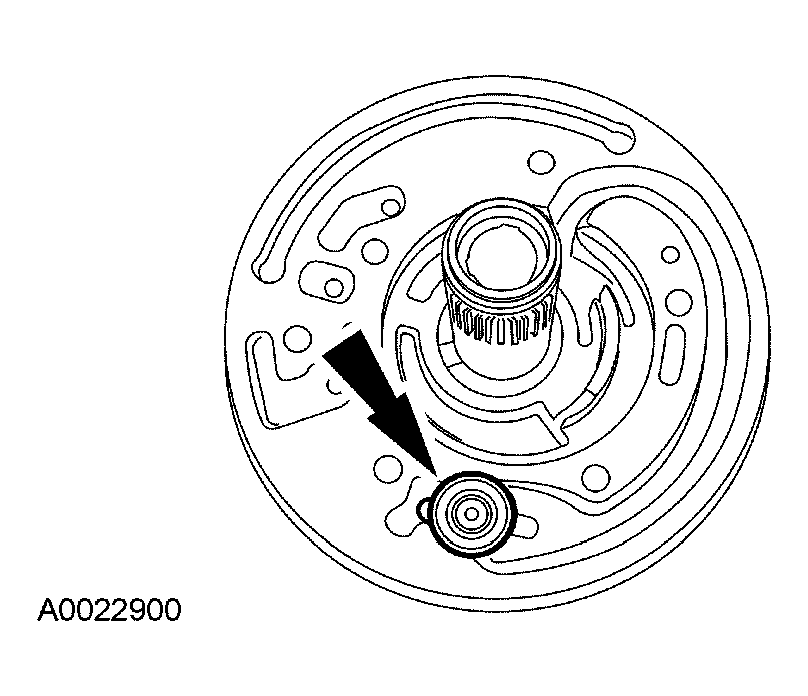

Remove the valve.

Fig 9: Removing Valve
Courtesy of FORD MOTOR CO.

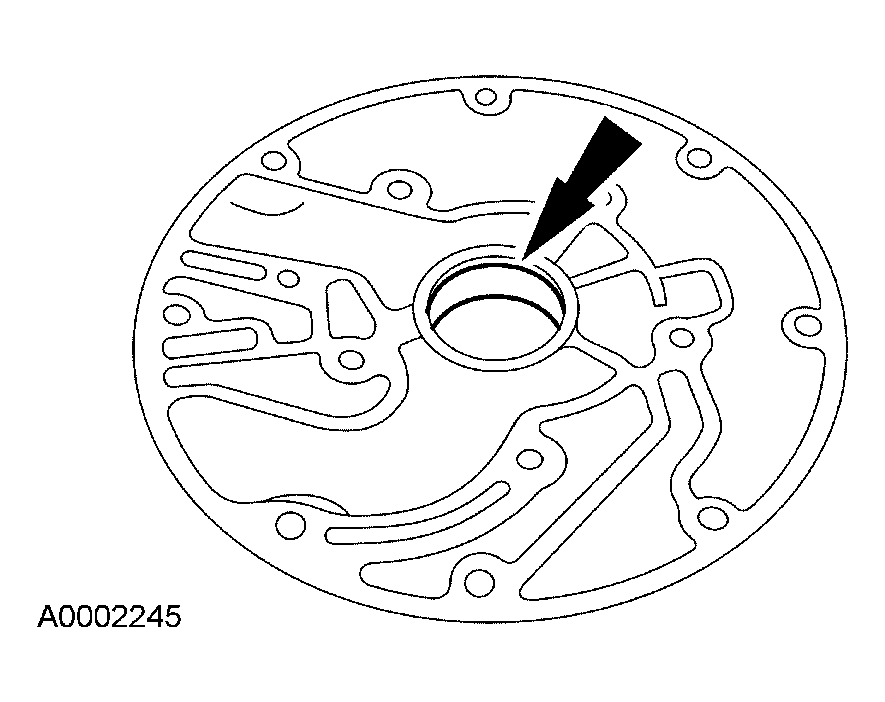

Remove and discard the seal.

Fig 10: Removing Seal
Courtesy of FORD MOTOR CO.
Inspect the fluid pump to converter housing bushing.

Fig 11: Identifying Fluid Pump-To-Converter Housing Bushing
Courtesy of FORD MOTOR CO.
