Forward Clutch: Notes

SPECIAL TOOLS

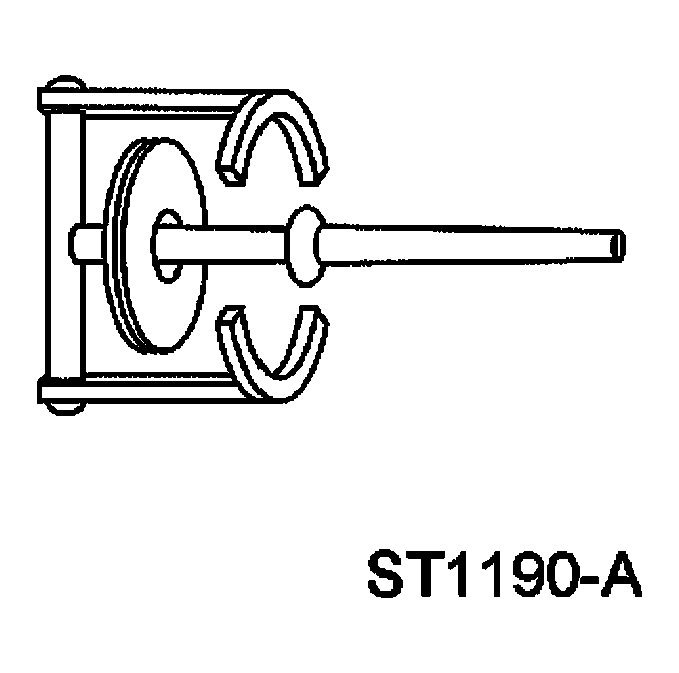

G03915058
 Compressor, Clutch Spring 307-015 (T65L-77515-A)

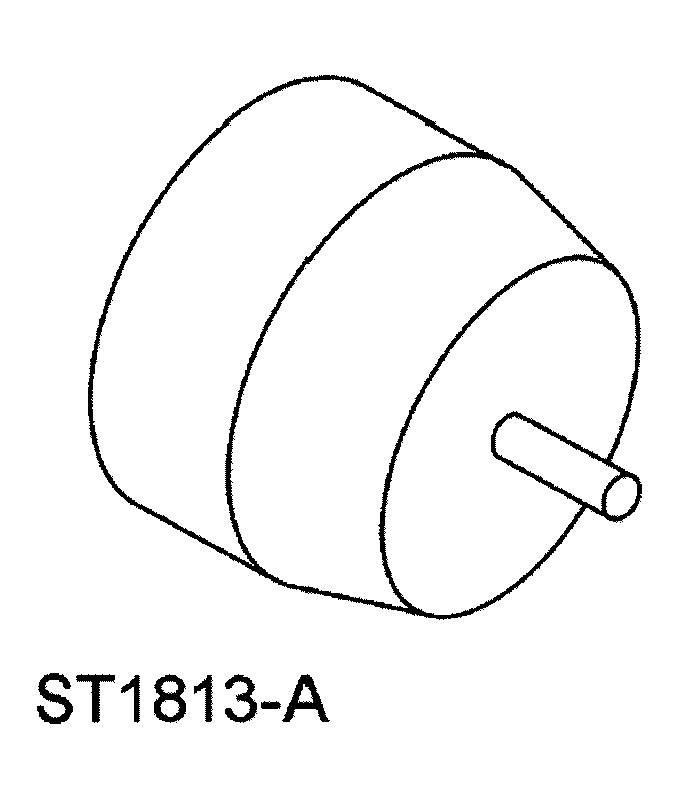

G03949022
 Protector, Piston Seal 307-051 (T74P-77548-A)

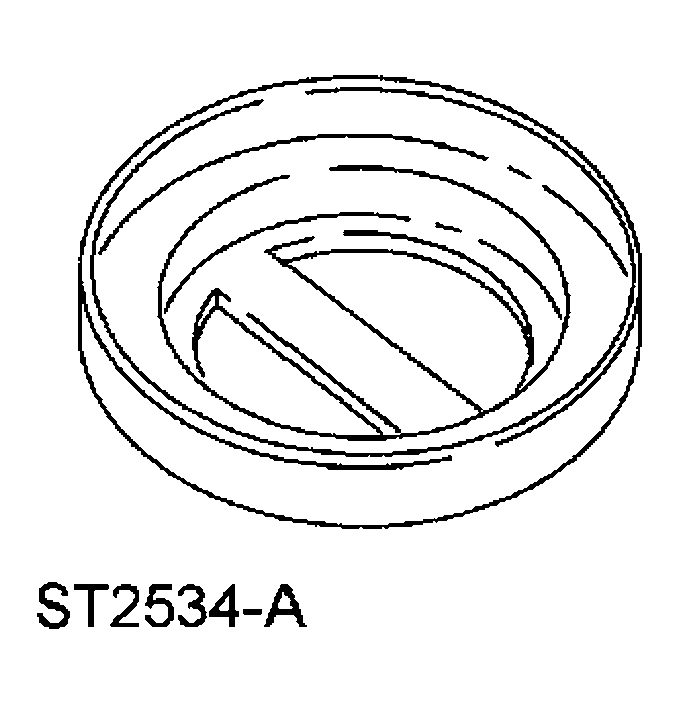

G04008471
 Bonded Piston Seal Sizer 307-434
MATERIAL SPECIFICATION

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V

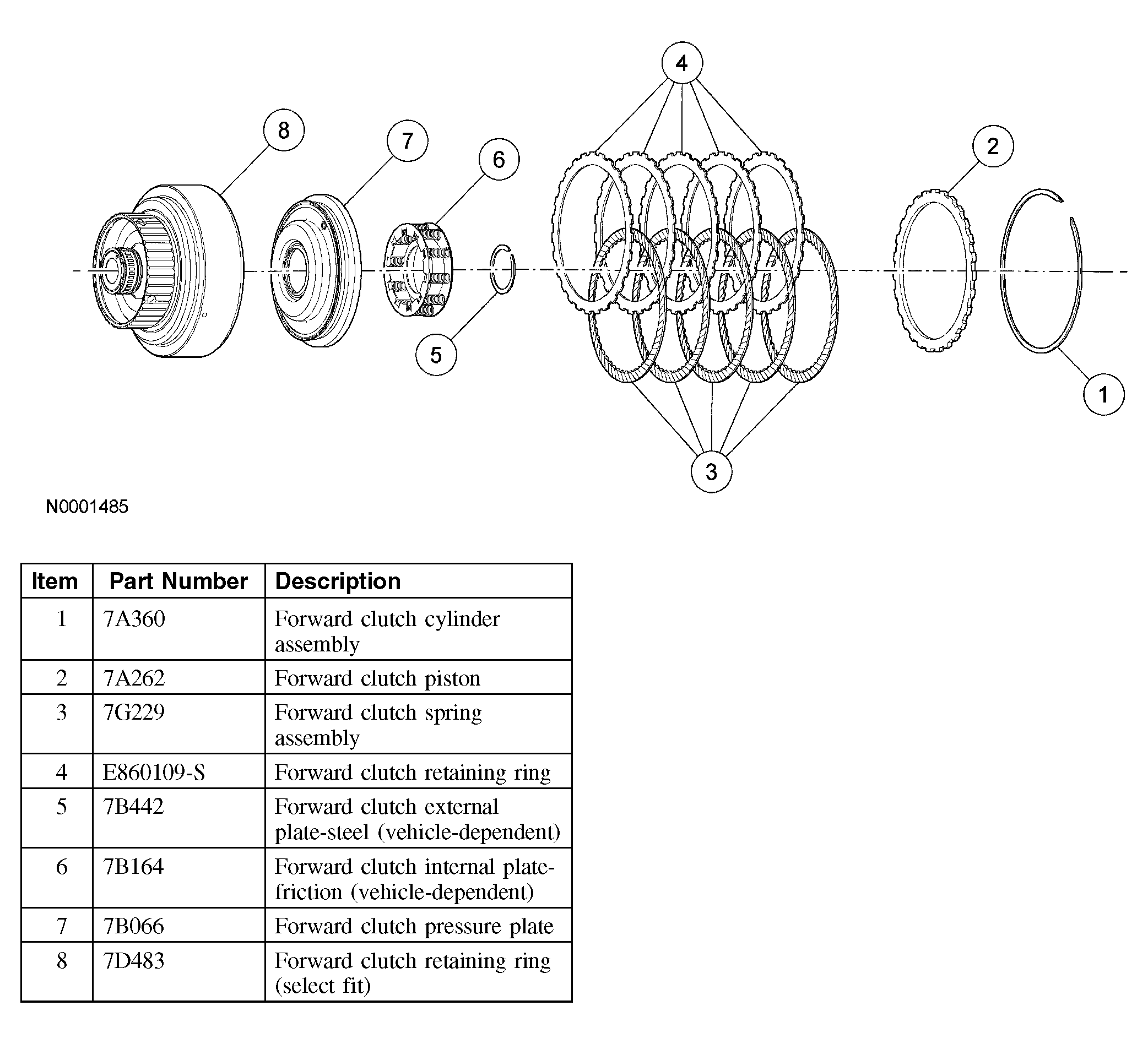

Fig 1: Identifying Components Forward Clutch Assembly
G04008472Courtesy of FORD MOTOR CO.
