Main Control Valve Body: Disassembly

    NOTE: The valve body separator plate has a bonded gasket. Do not reuse. Discard the plate.

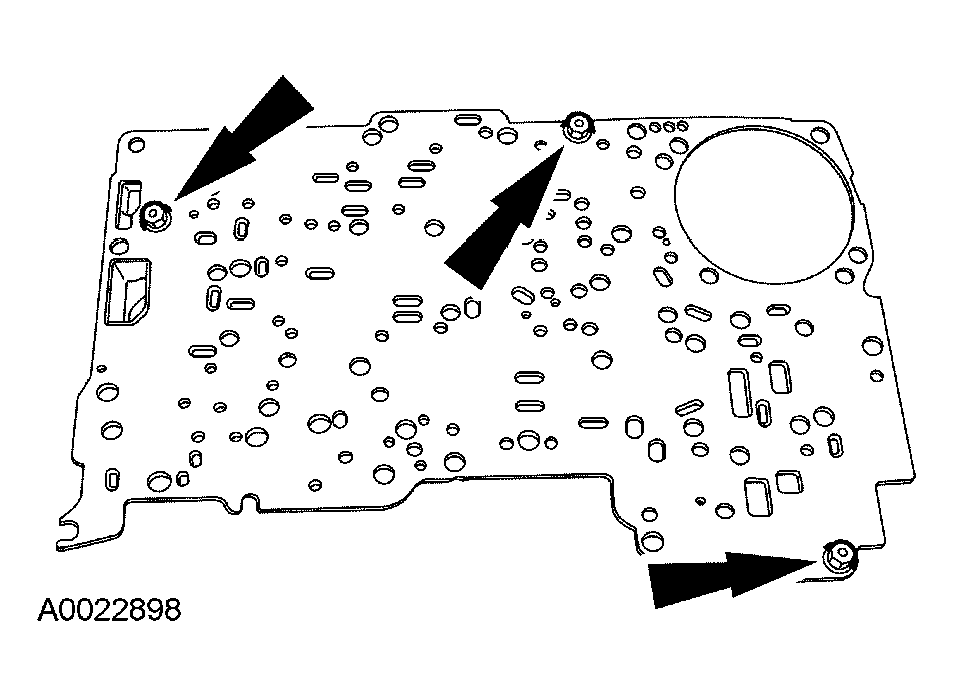

    Fig 1: Removing Valve Body Separator Plate
    G03948942Courtesy of FORD MOTOR CO.
  1. Remove and discard the valve body separator plate.
  2. Remove the check balls.
    Fig 2: Removing Check Balls
    G03948943Courtesy of FORD MOTOR CO.

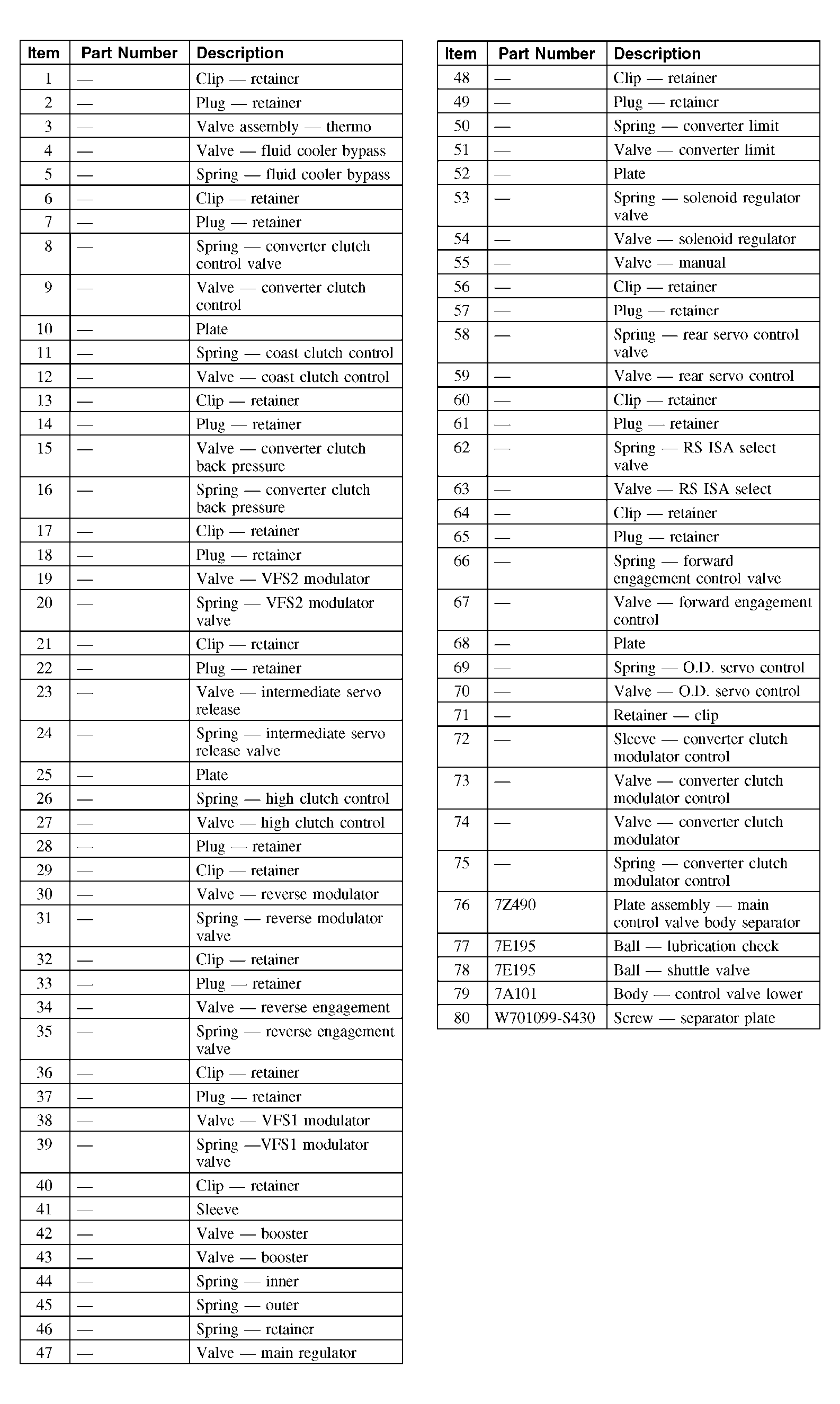

    3. NOTE: Refer to Figure and Figure.
  3. Disassemble the main control valve body only if cleaning is required.
