Overdrive Planetary Gears: Assembly

NOTE: Thoroughly clean all parts and blow dry with moisture-free compressed air.

NOTE: Use petroleum jelly to hold the No. 2 overdrive planetary thrust bearing in place.

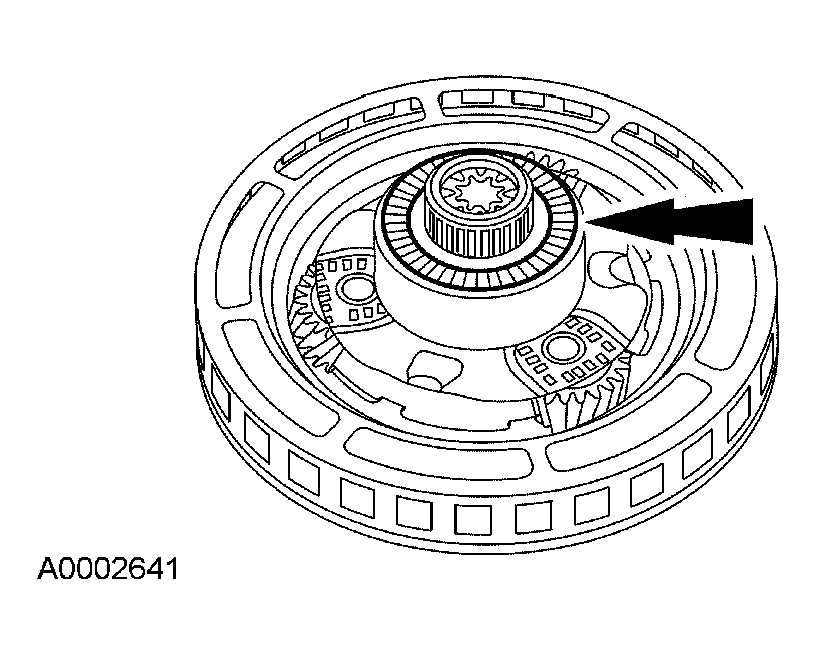

Fig 1: Identifying Overdrive Planetary Thrust Bearing

Courtesy of FORD MOTOR CO.

Install the No. 2 overdrive planetary thrust bearing.
Install the overdrive planetary gear carrier into the center shaft and overdrive.

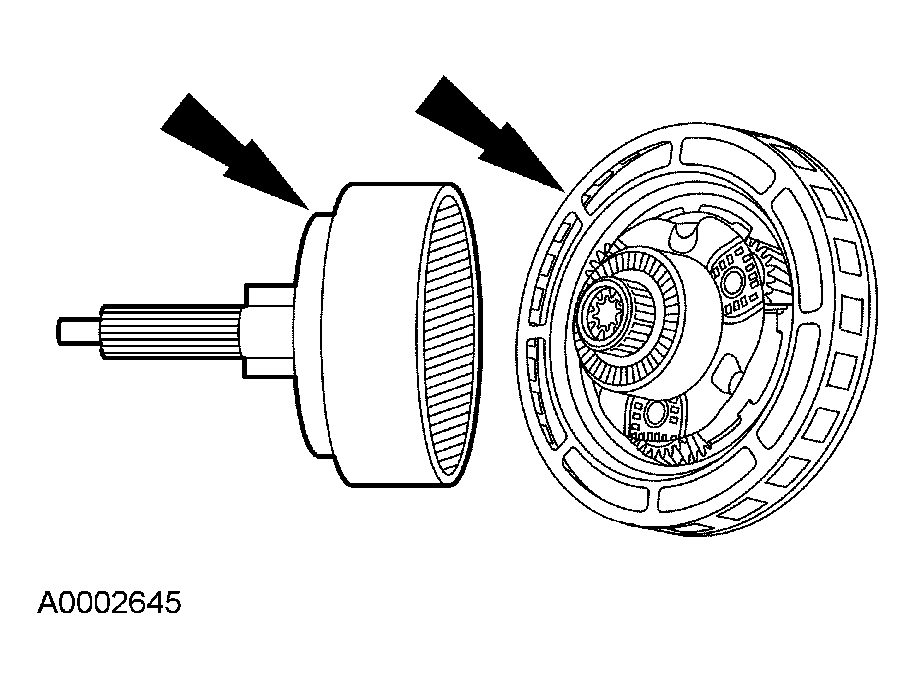

Fig 2: Identifying Overdrive Planetary Gear Carrier, Center Shaft And Overdrive
Courtesy of FORD MOTOR CO.

CAUTION: Make sure that the No. 12 bearing is in place in the overdrive planetary prior to installing the overdrive sun gear.

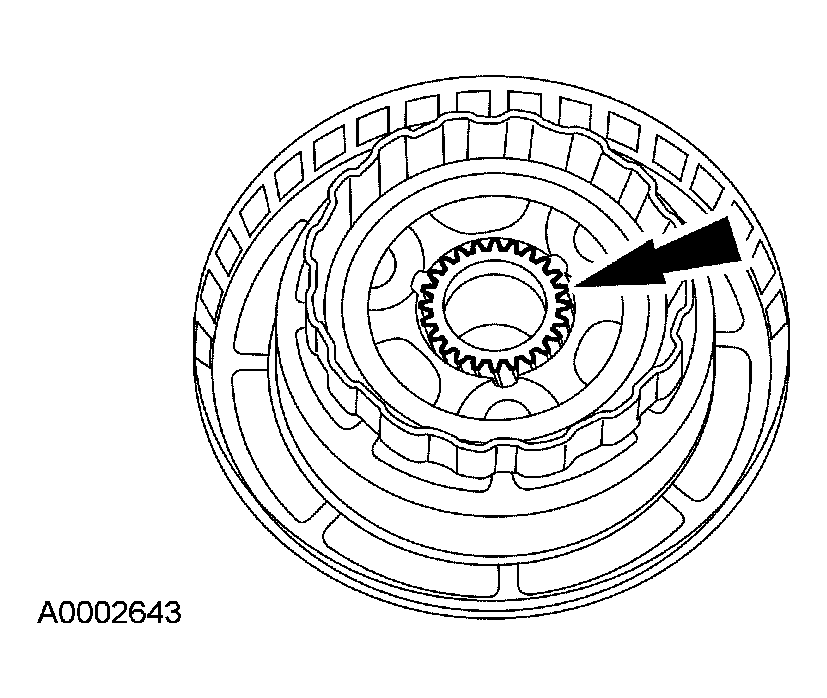

Fig 3: Identifying Overdrive Sun Gear

Courtesy of FORD MOTOR CO.

Install the overdrive sun gear with the recessed gear teeth facing toward the adapter.

CAUTION: Adapter part number must not be visible after installation.

NOTE: Inspect the sun gear for damaged or worn teeth.

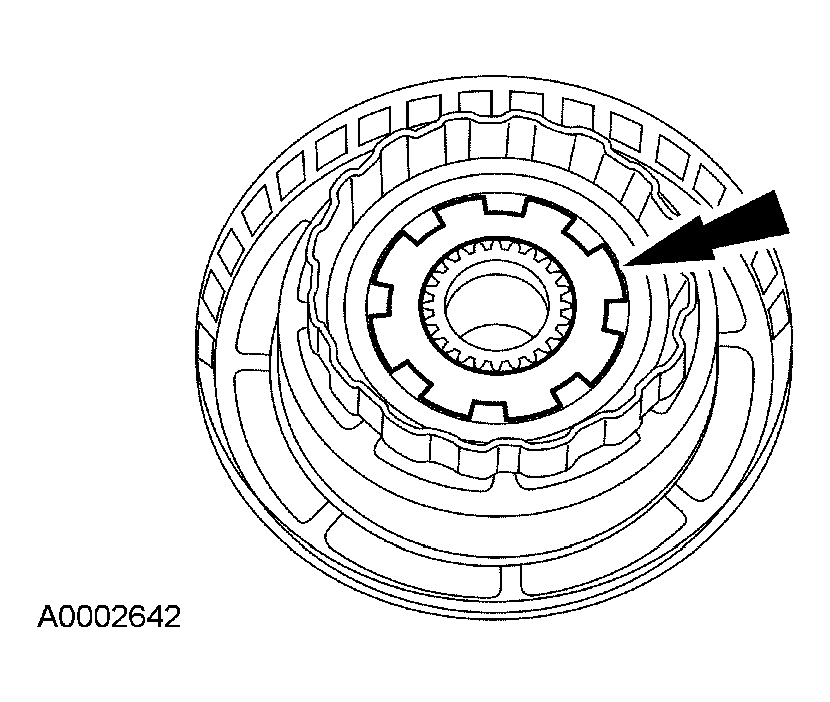

Fig 4: Identifying Coast Clutch-To-Overdrive Carrier Adapter

Courtesy of FORD MOTOR CO.
