Overdrive Planetary and One-Way Clutch Assembly: Notes

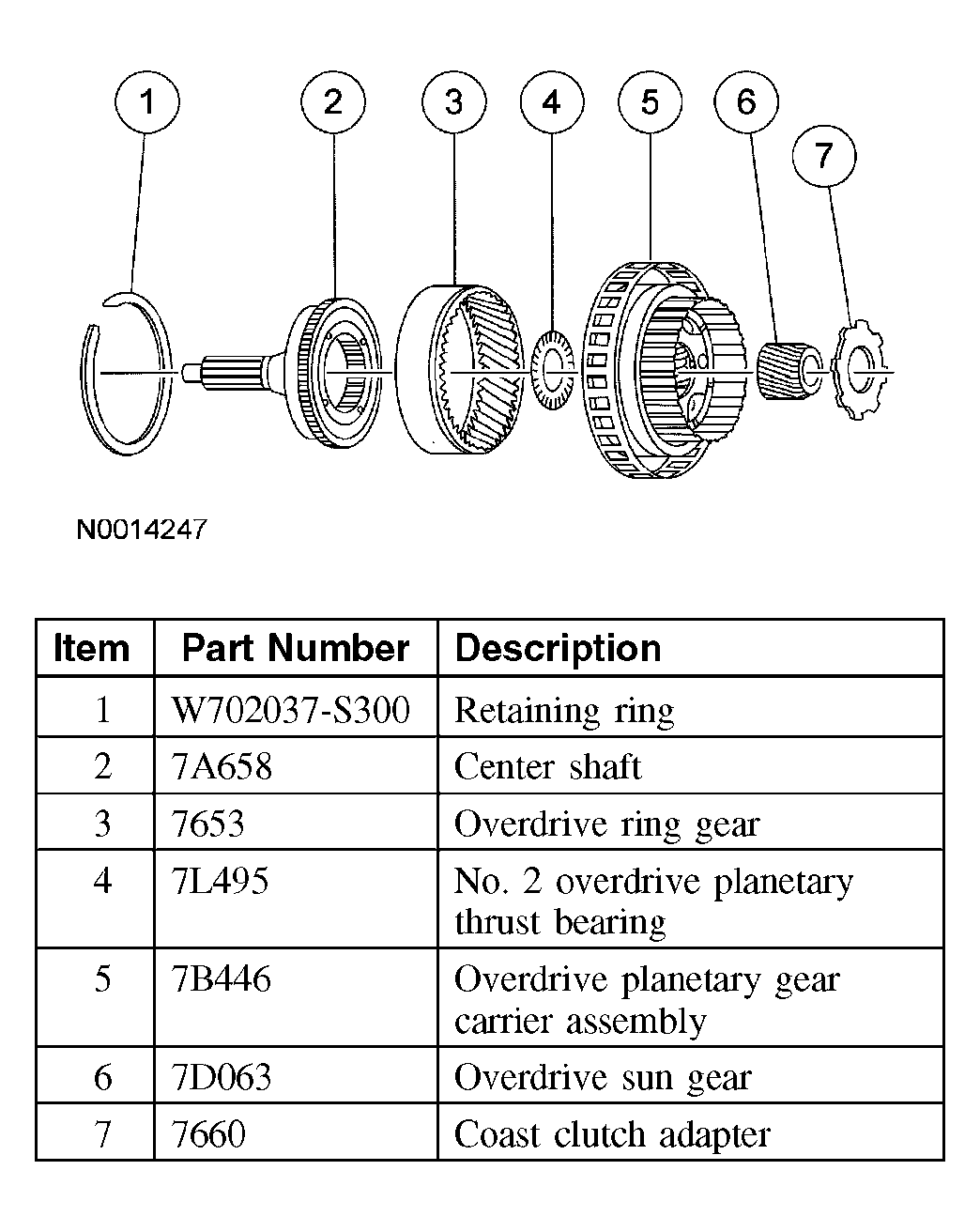

Fig 1: Identifying Components Overdrive Planetary And One-Way Clutch Assembly
G04008489Courtesy of FORD MOTOR CO.
