Reverse Servo Assembly: Assembly

NOTE: Try not to roll the seal onto the housing when installing the seal, or damage to the seal can occur.

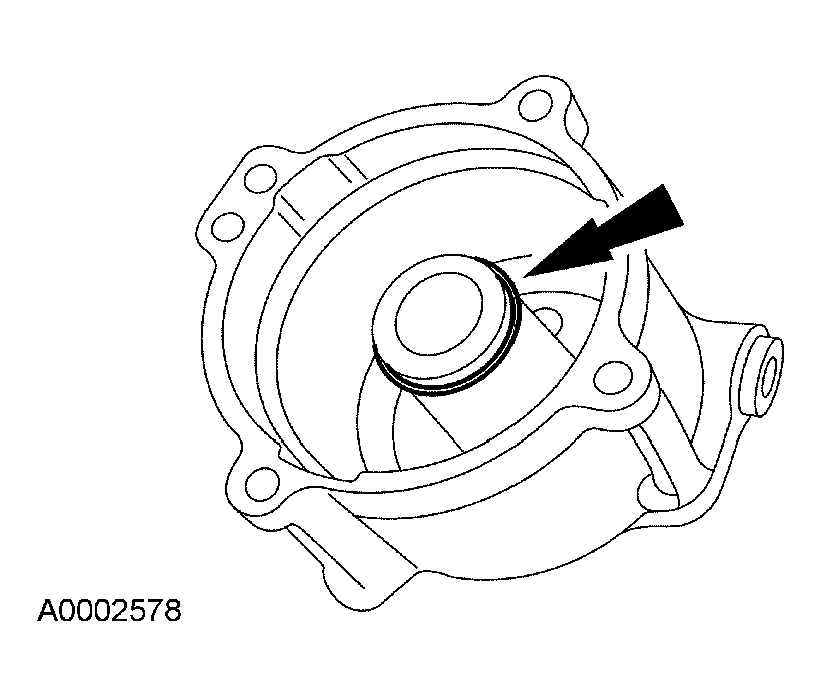

Fig 1: Identifying Reverse Servo Piston Seal

Courtesy of FORD MOTOR CO.

Lubricate and install a new reverse servo piston seal.
Lubricate and install the reverse servo piston and seal assembly.

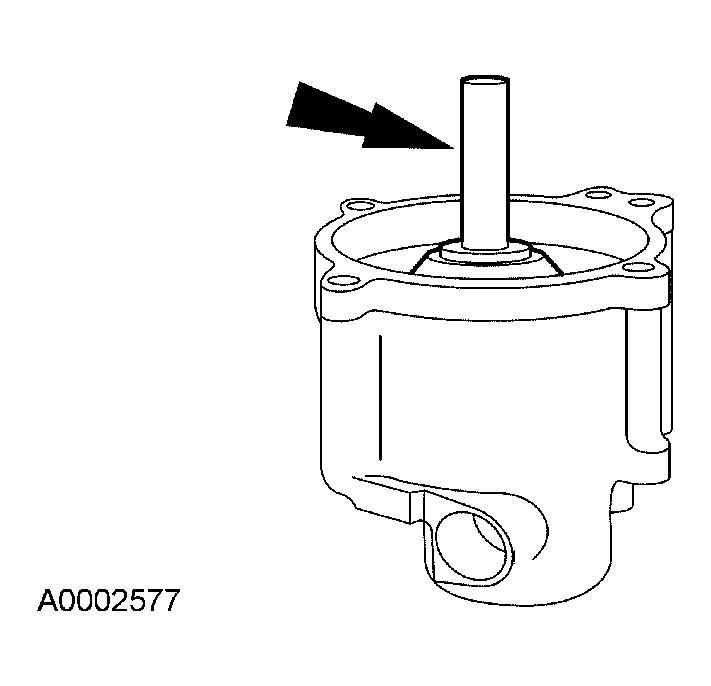

Fig 2: Identifying Reverse Servo Piston
Courtesy of FORD MOTOR CO.
Install the reverse servo spring.

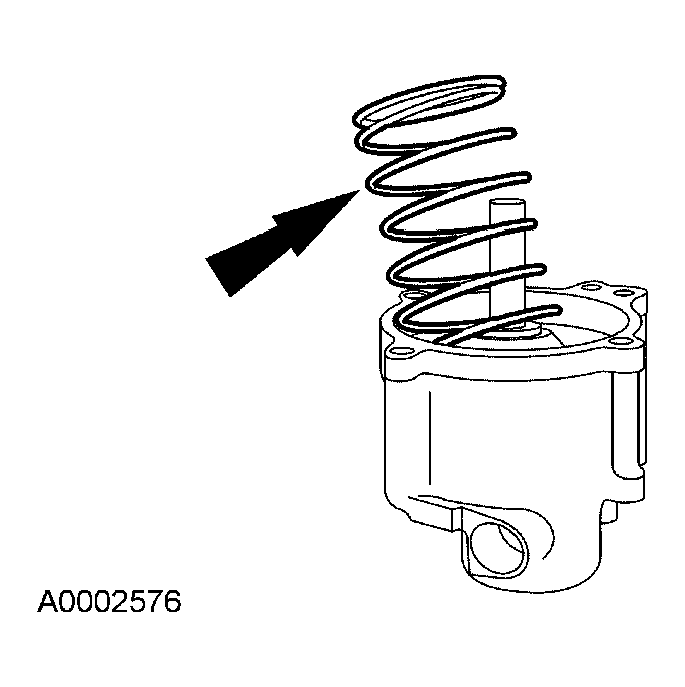

Fig 3: Identifying Reverse Servo Spring
Courtesy of FORD MOTOR CO.

WARNING: The upper and lower servo covers are under spring tension. Use care when assembling the 2 halves. Failure to follow these instructions can result in personal injury.

CAUTION: The arrow on the servo plate must be aligned evenly between any 2 slots on the cover.

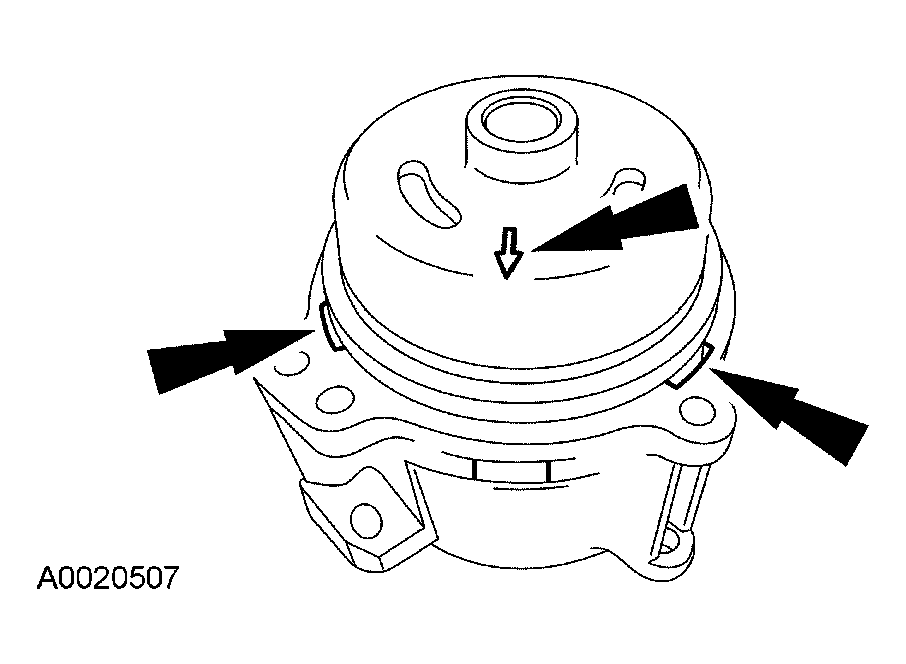

Fig 4: Installing Reverse Servo Plate

Courtesy of FORD MOTOR CO.

Install the reverse servo plate.
Install the reverse servo spring and check valve.

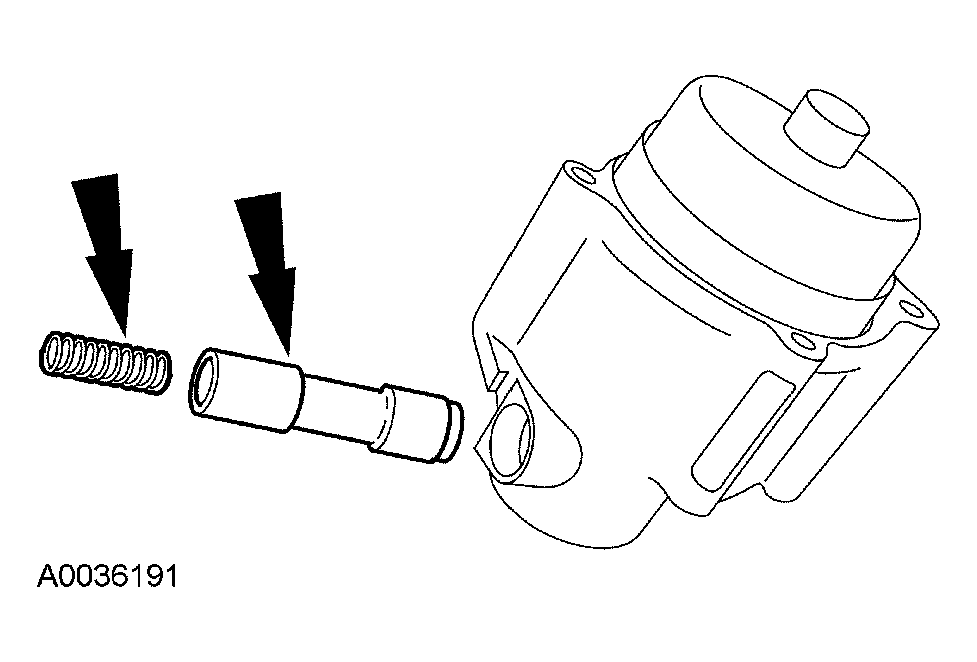

Fig 5: Installing Reverse Servo Spring And Check Valve
Courtesy of FORD MOTOR CO.
Install the control valve spring retainer.
- Tighten to 10 Nm (89 lb-in).

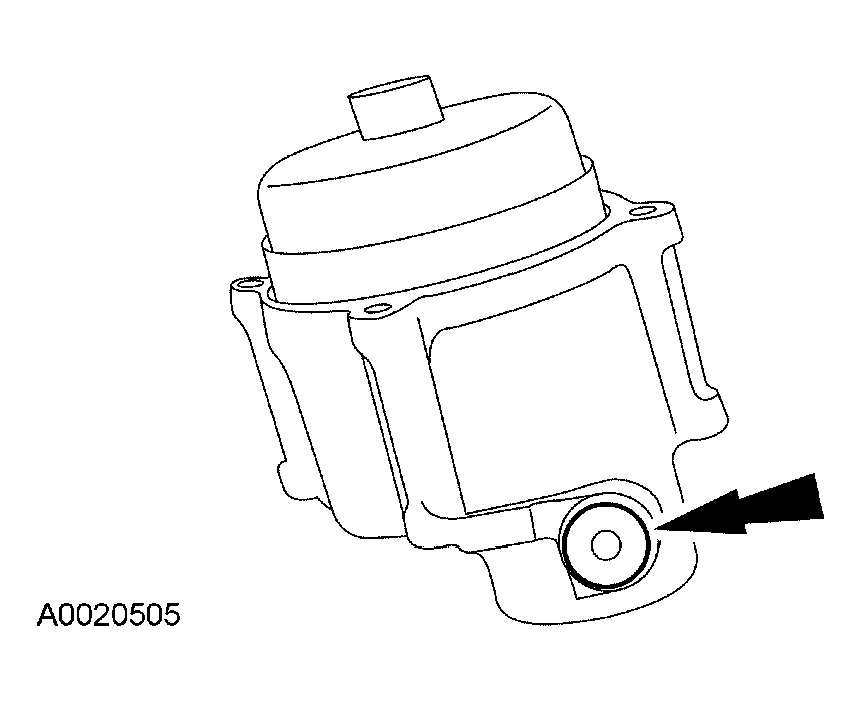

  Fig 6: Installing Control Valve Spring Retainer
  Courtesy of FORD MOTOR CO.
