Digital Transmission Range (TR) Sensor: Notes

SPECIAL TOOLS

G03888878
 Alignment Gauge, TR Sensor 307-351 (T97L-70010-A)

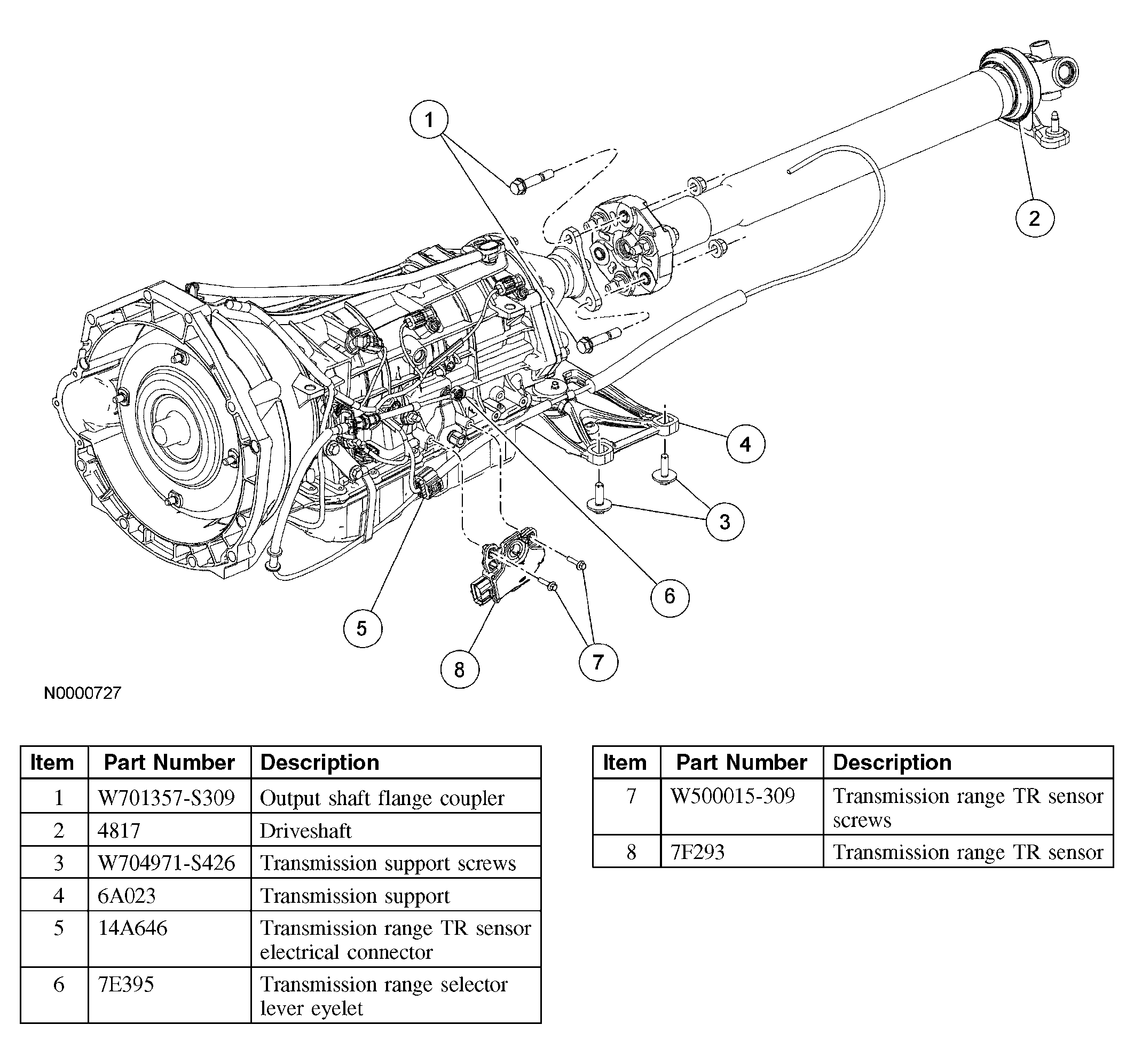

Fig 1: Identifying Components Digital Transmission Range Sensor
G04008259Courtesy of FORD MOTOR CO.
