Extension Housing Gasket: Notes

SPECIAL TOOLS

G04008227
 Installer, Drive Pinion Flange 205-479
G04008228
 Installer, Output Shaft Flange 307-404

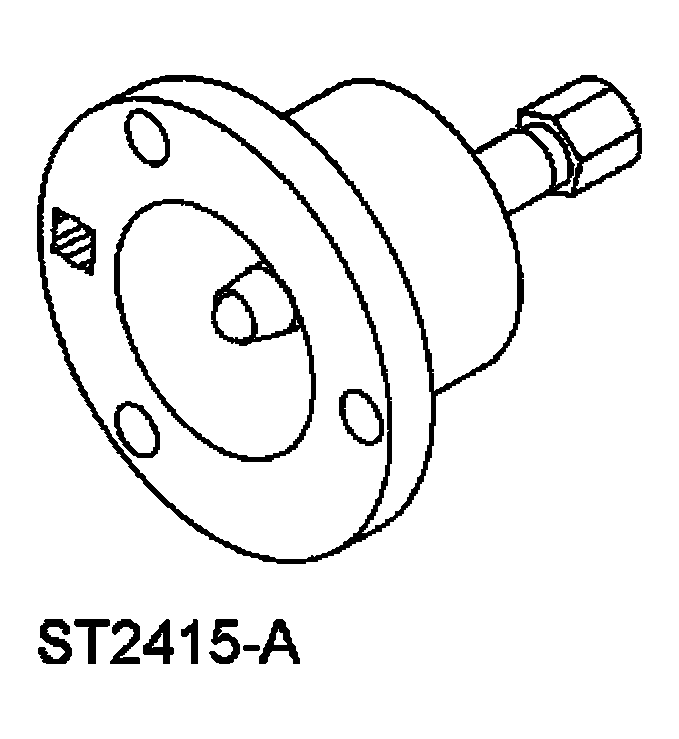

G03997382
 Remover, Output Shaft Flange 307-523

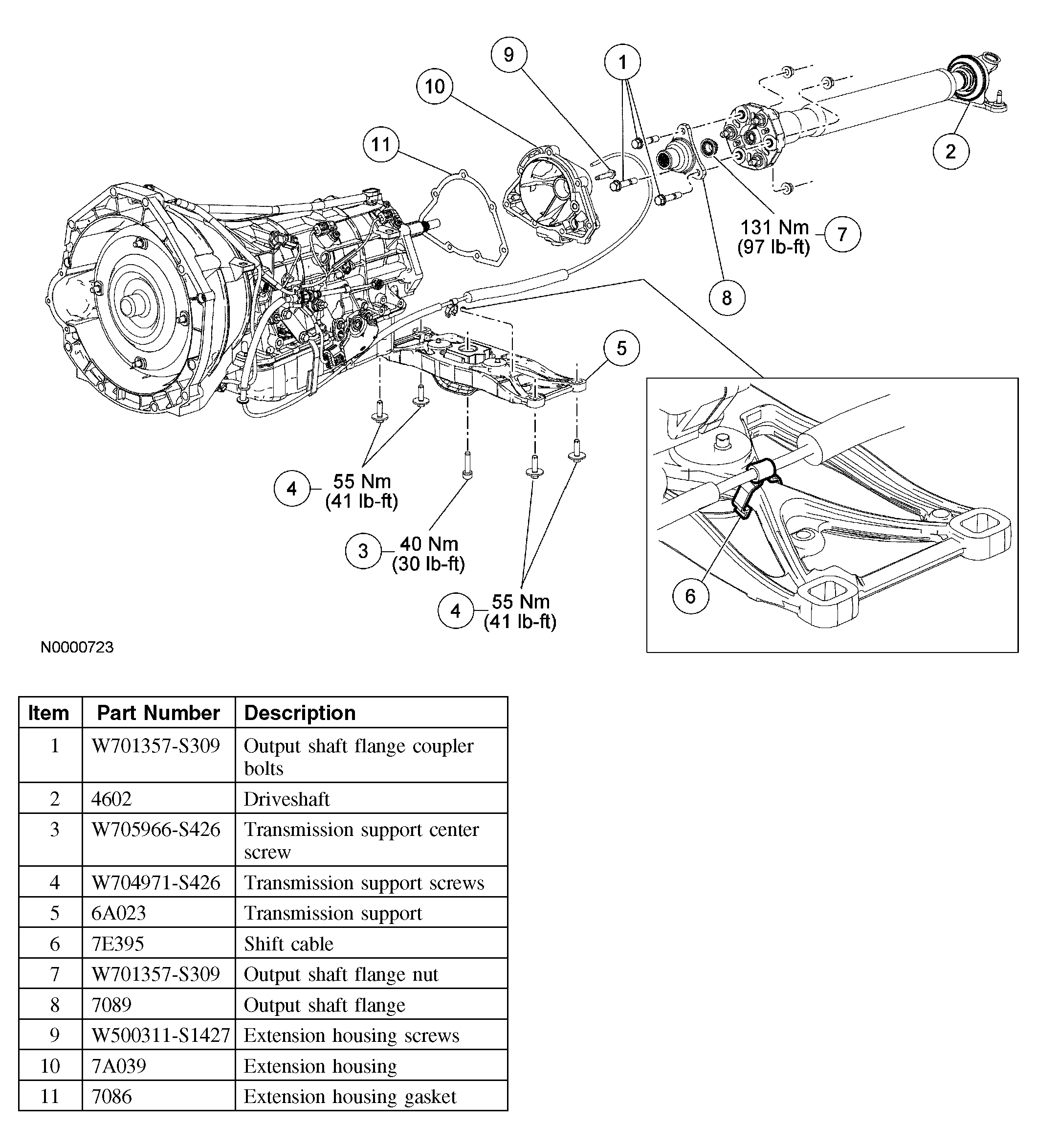

Fig 1: Replacement Components Extension Housing Gasket With Torque Specifications
G04008230Courtesy of FORD MOTOR CO.
