Transmission Support Insulator: Notes

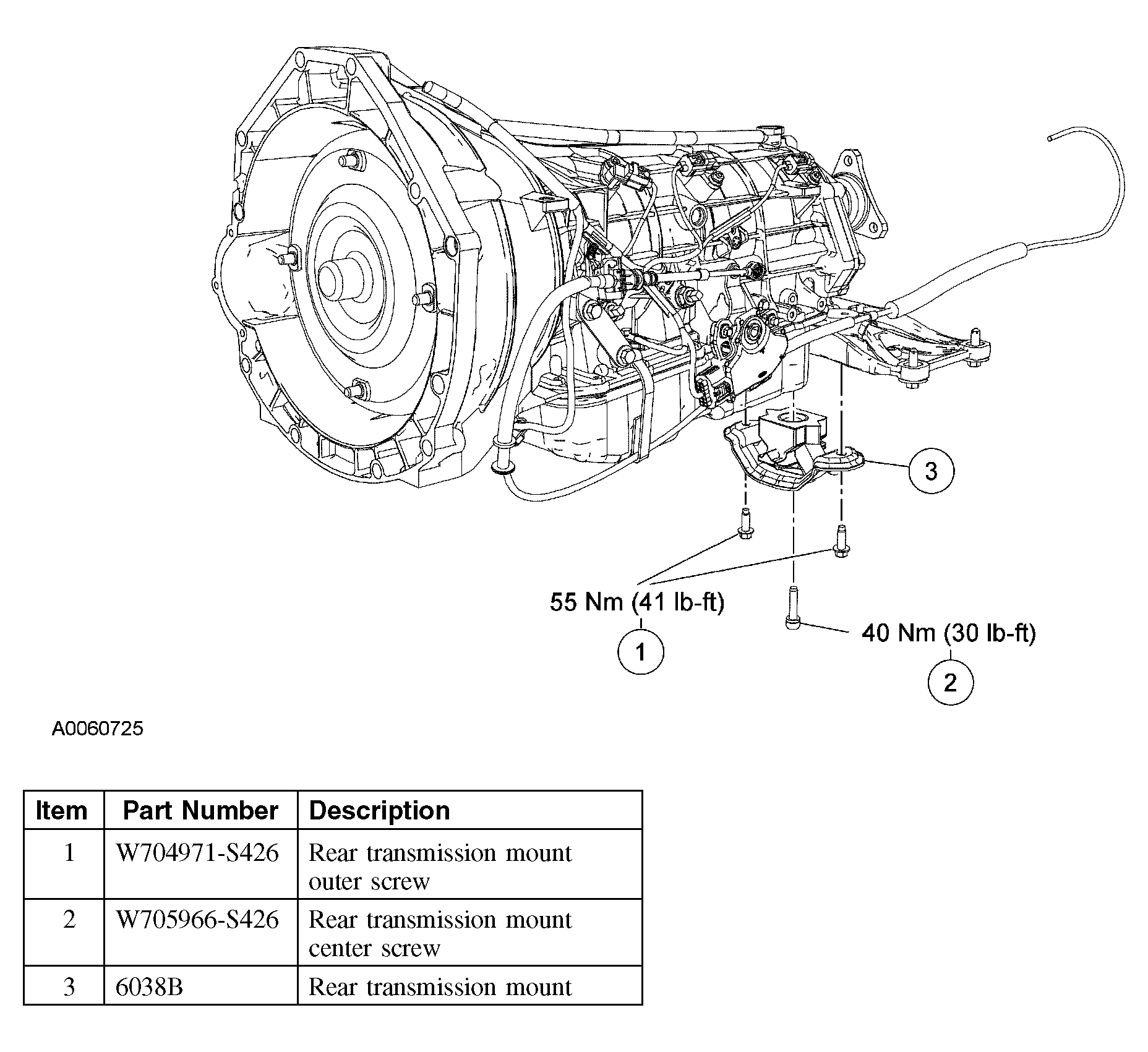

Fig 1: Replacement Components Transmission Support Insulator With Torque Specifications
G04008267Courtesy of FORD MOTOR CO.
