Safety Belt Retractor - Front: Notes

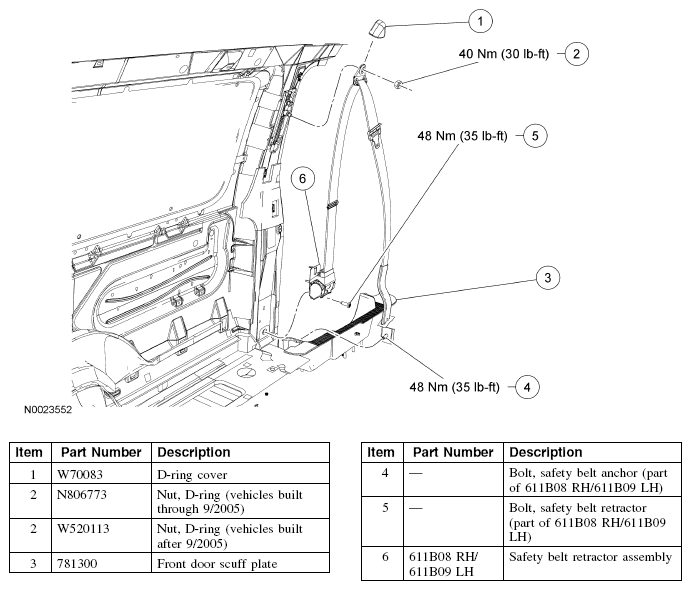

Fig 1: Front Safety Belt Retractor Replacement Components With Torque Specifications
G04617103Courtesy of FORD MOTOR CO.
