Engine Lubrication

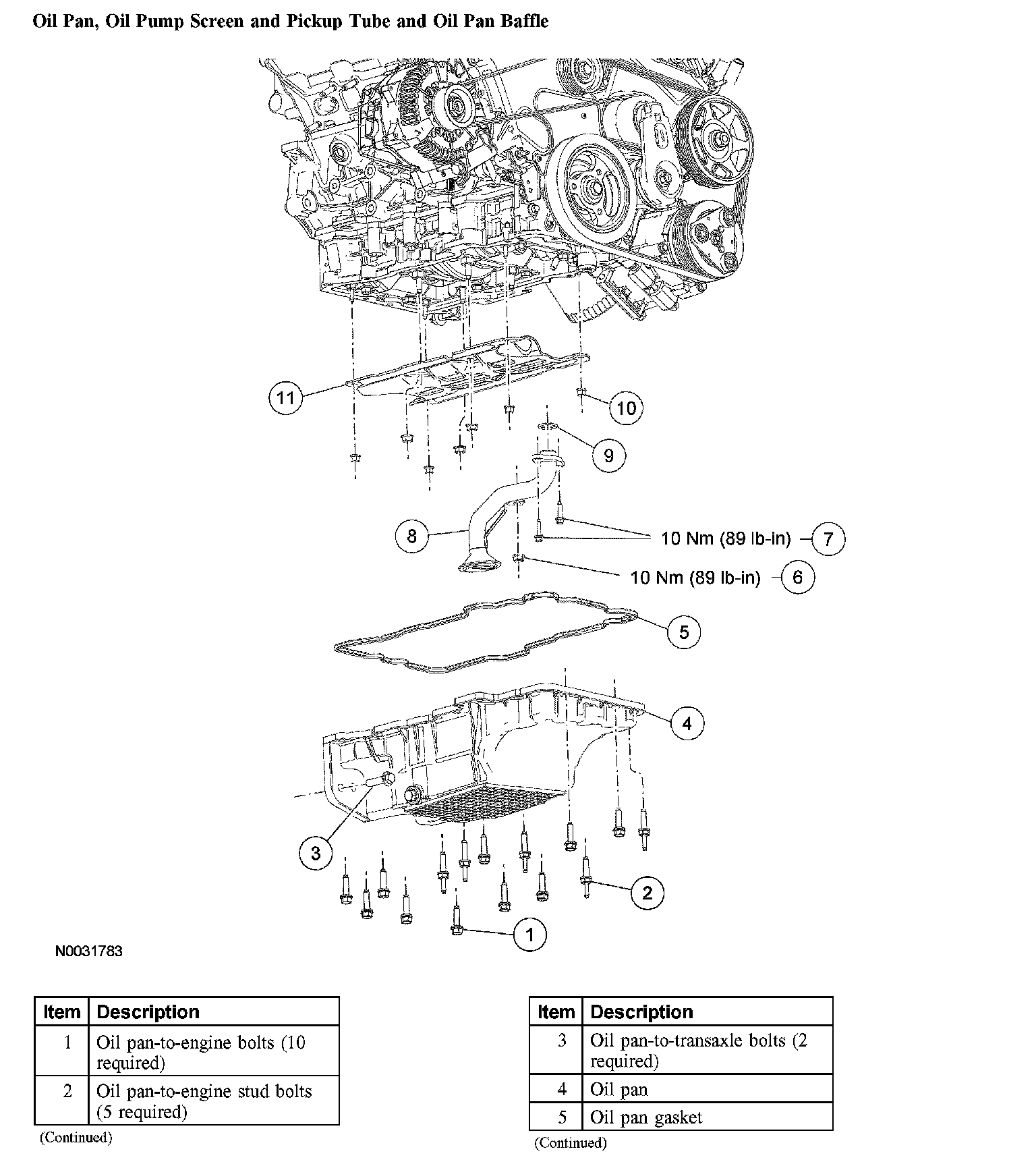

Oil Pan, Oil Pump Screen and Pickup Tube and Oil Pan Baffle:

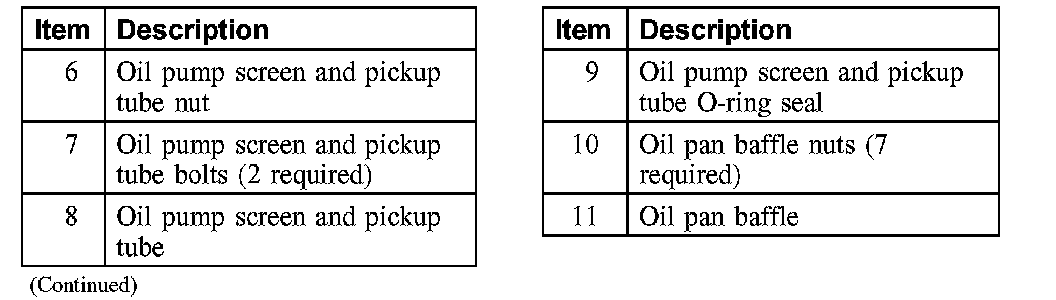

Oil Pan, Oil Pump Screen and Pickup Tube and Oil Pan Baffle:

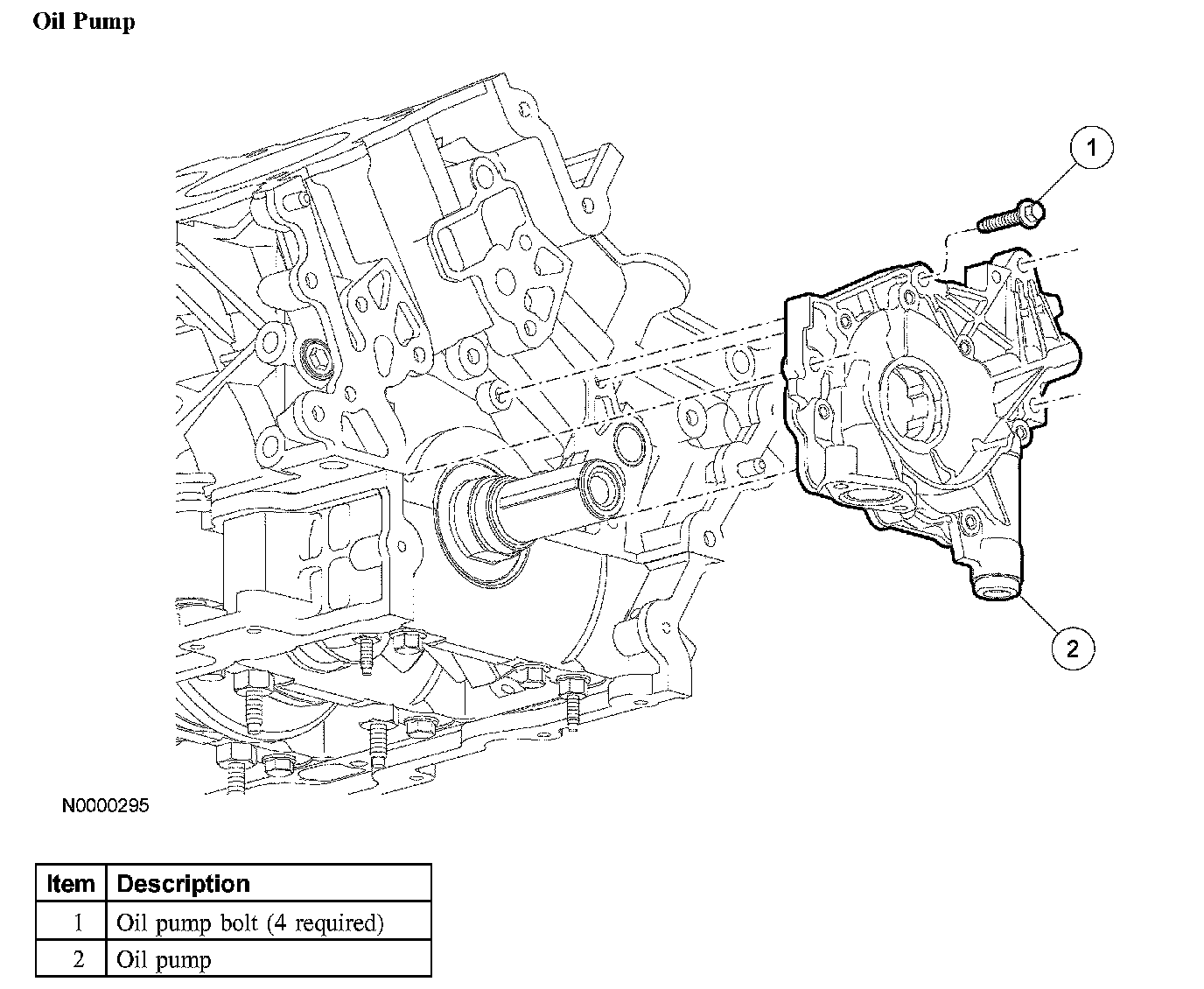

Oil Pump:
