Navigation Module: Service and Repair

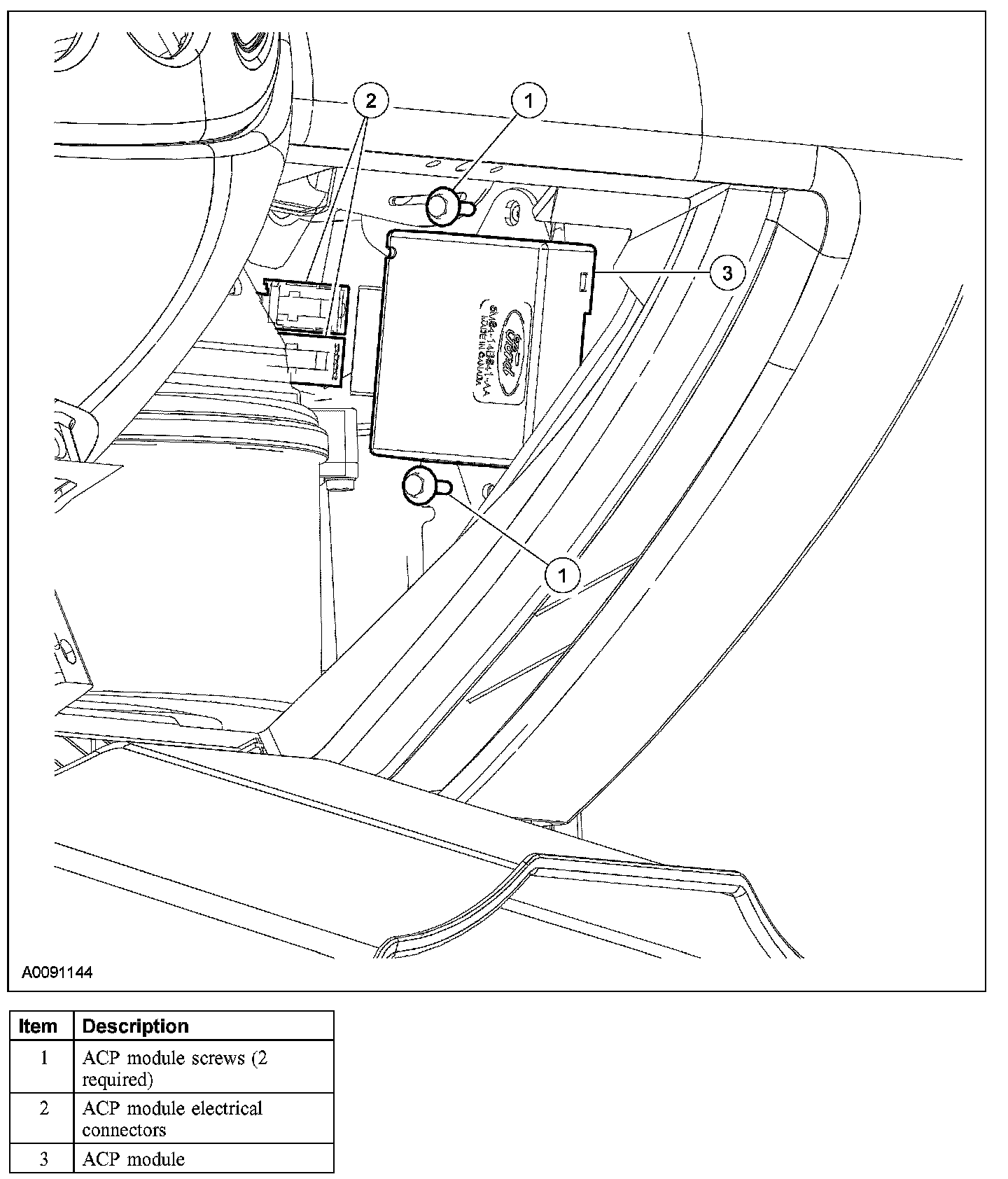

AUDIO CONTROL PROTOCOL (ACP) MODULE







Removal and Installation
1. Disconnect the battery.
2. Lower the glove box.
3. Remove the 2 ACP module screws.
4. Disconnect the electrical connectors and remove the ACP module.
5. To install, reverse the removal procedure.
