Diagnostic Trouble Code Descriptions

DIAGNOSTIC TROUBLE CODE CHART

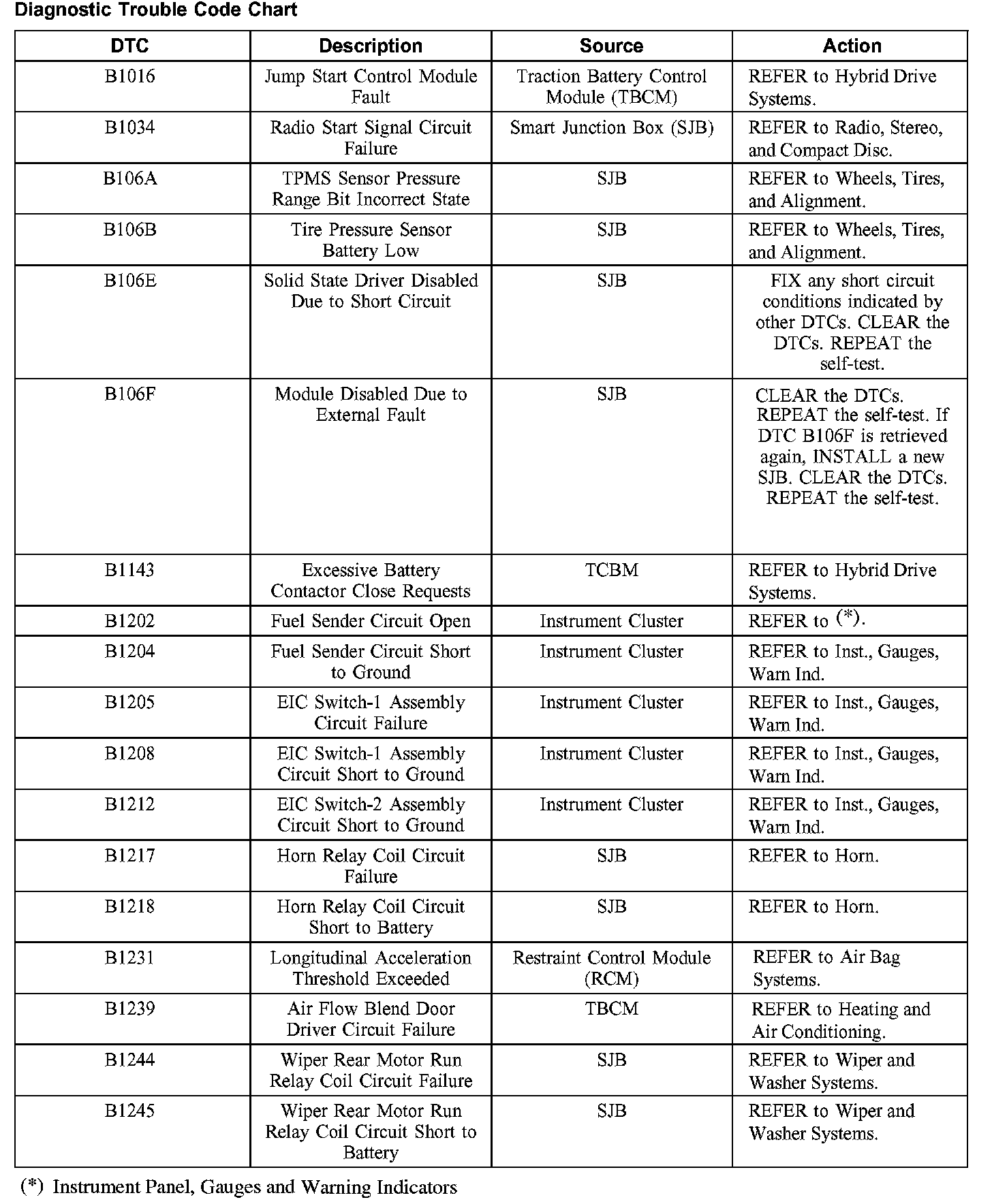

B1016-B1245:

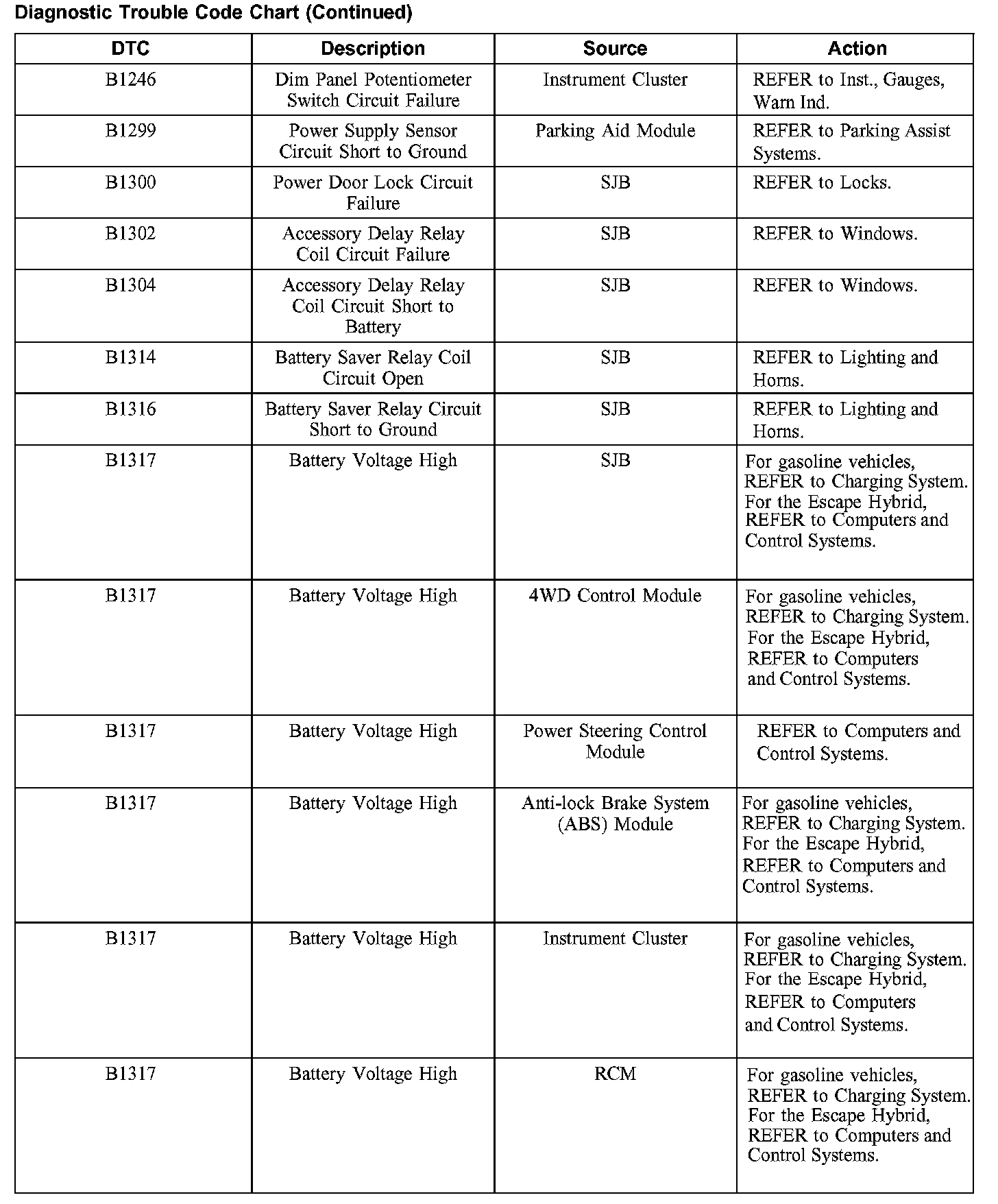

B1246-B1317:

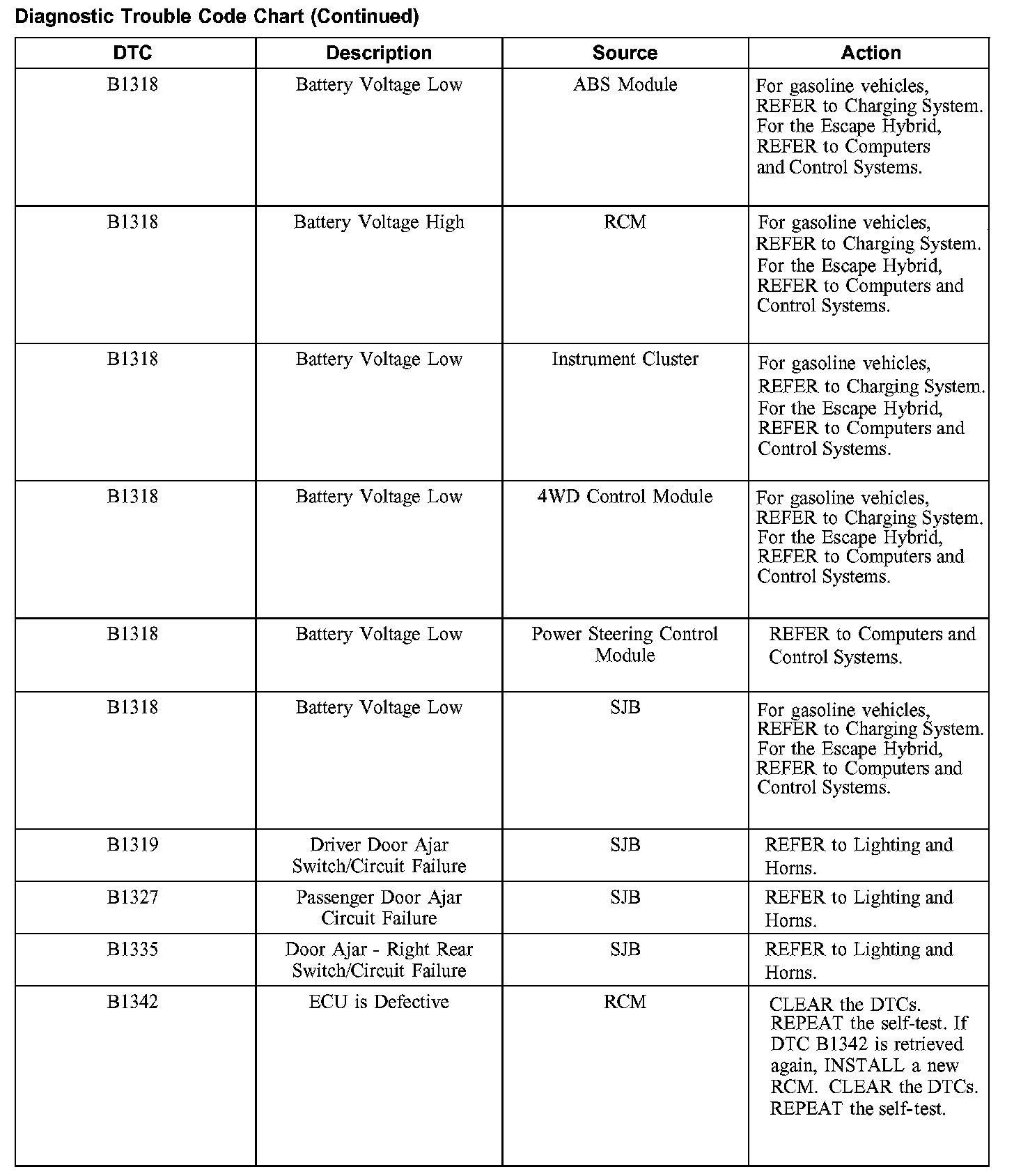

B1318-B1342:

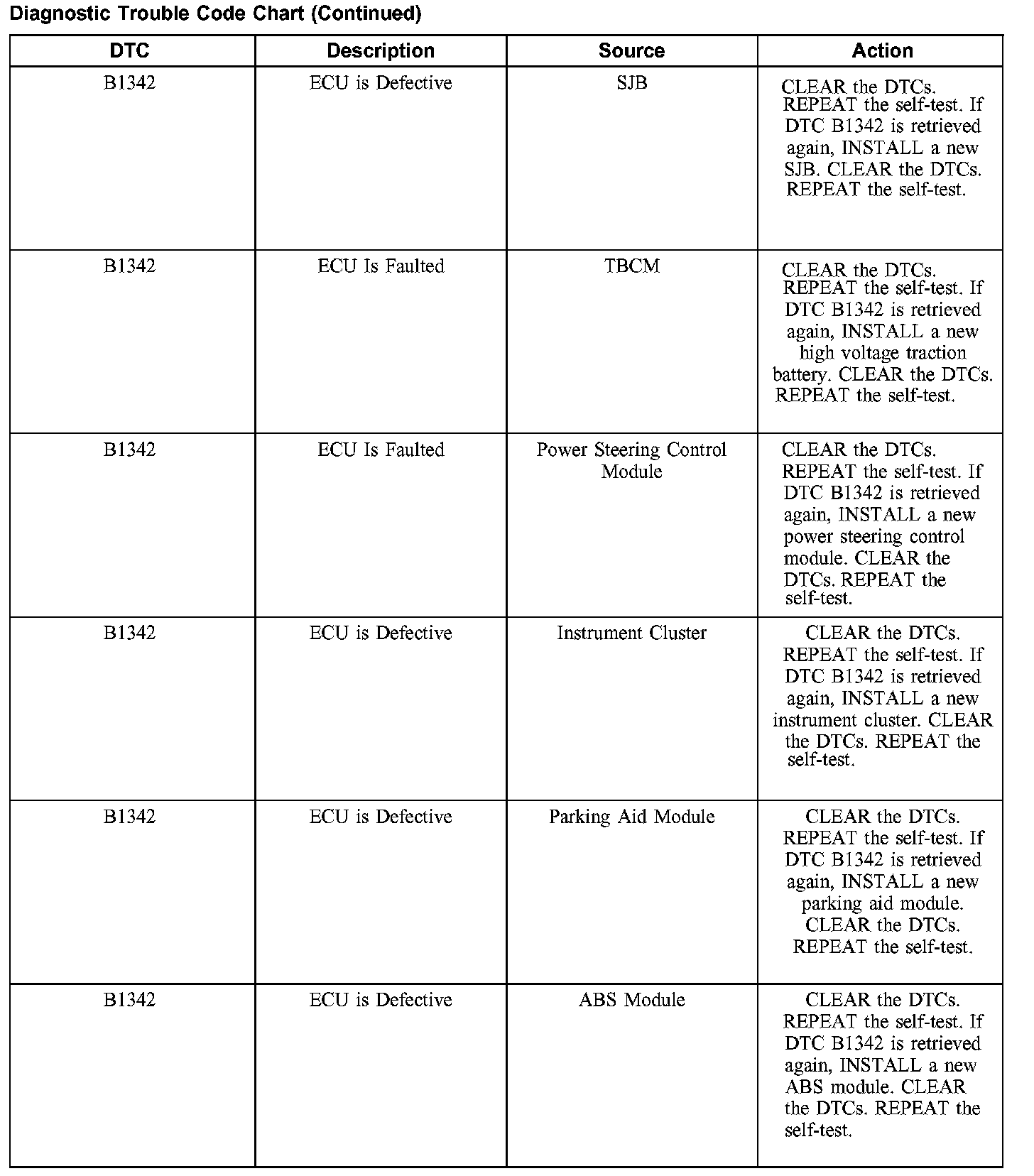

B1342:

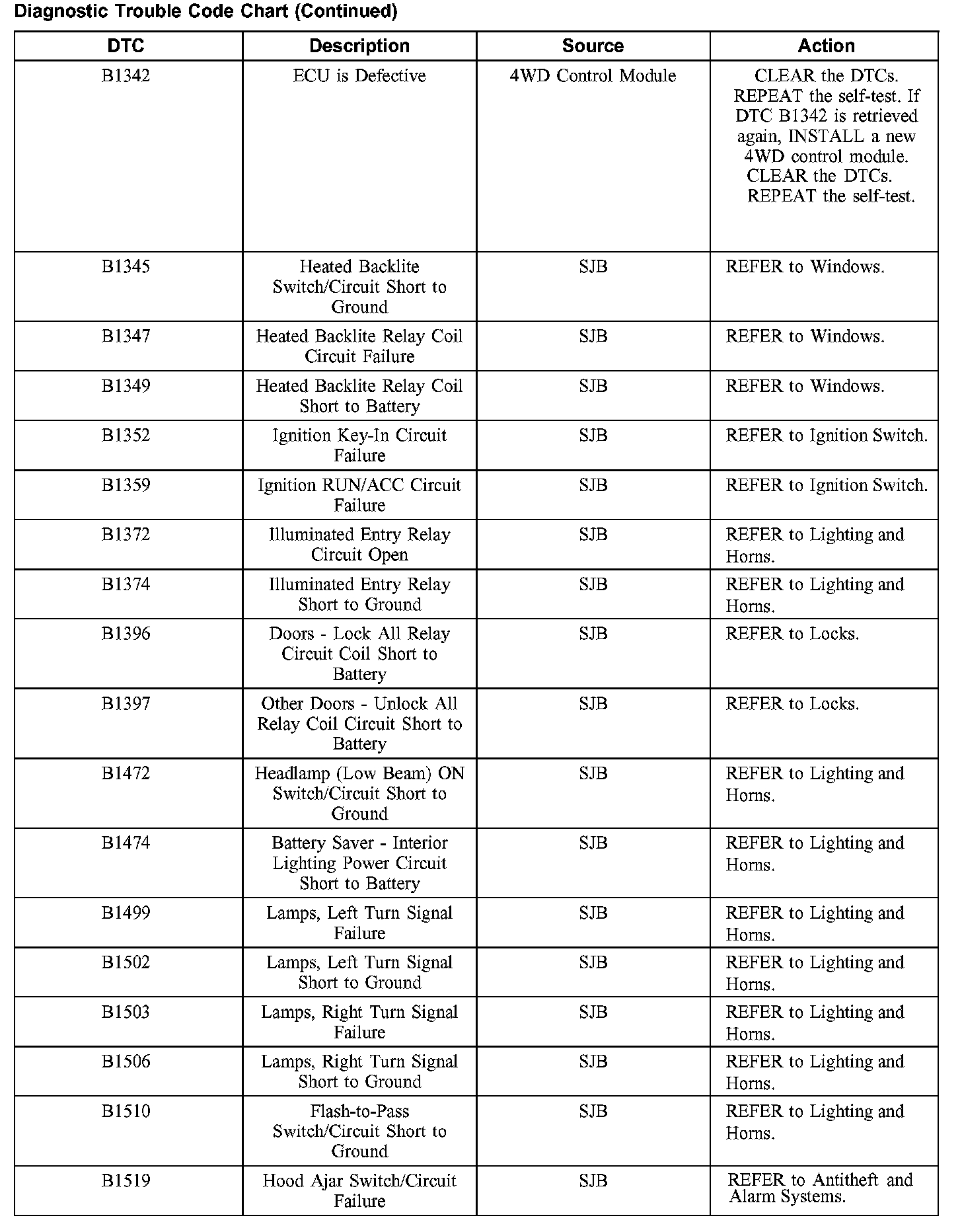

B1342-B1519:

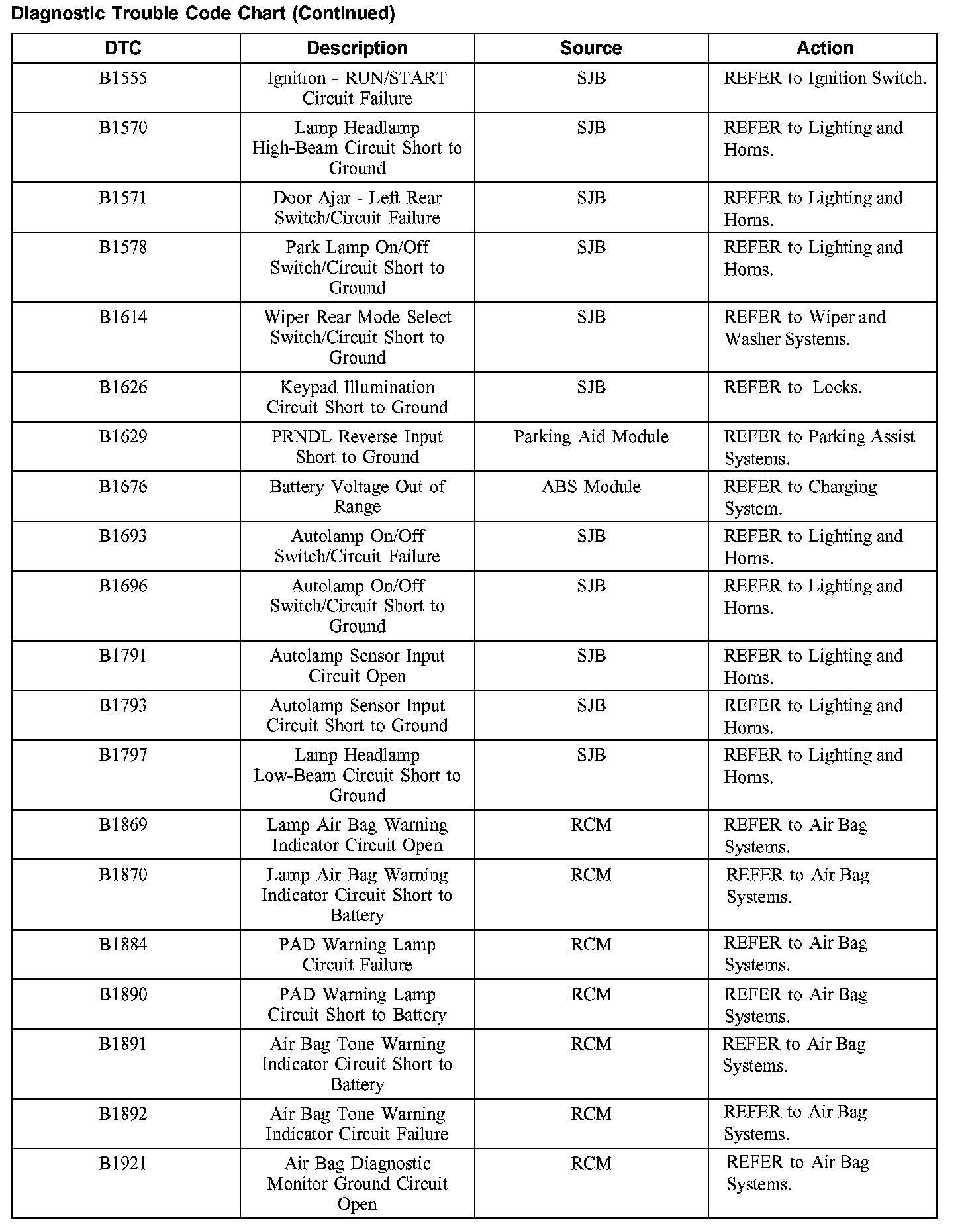

B1555-B1921:

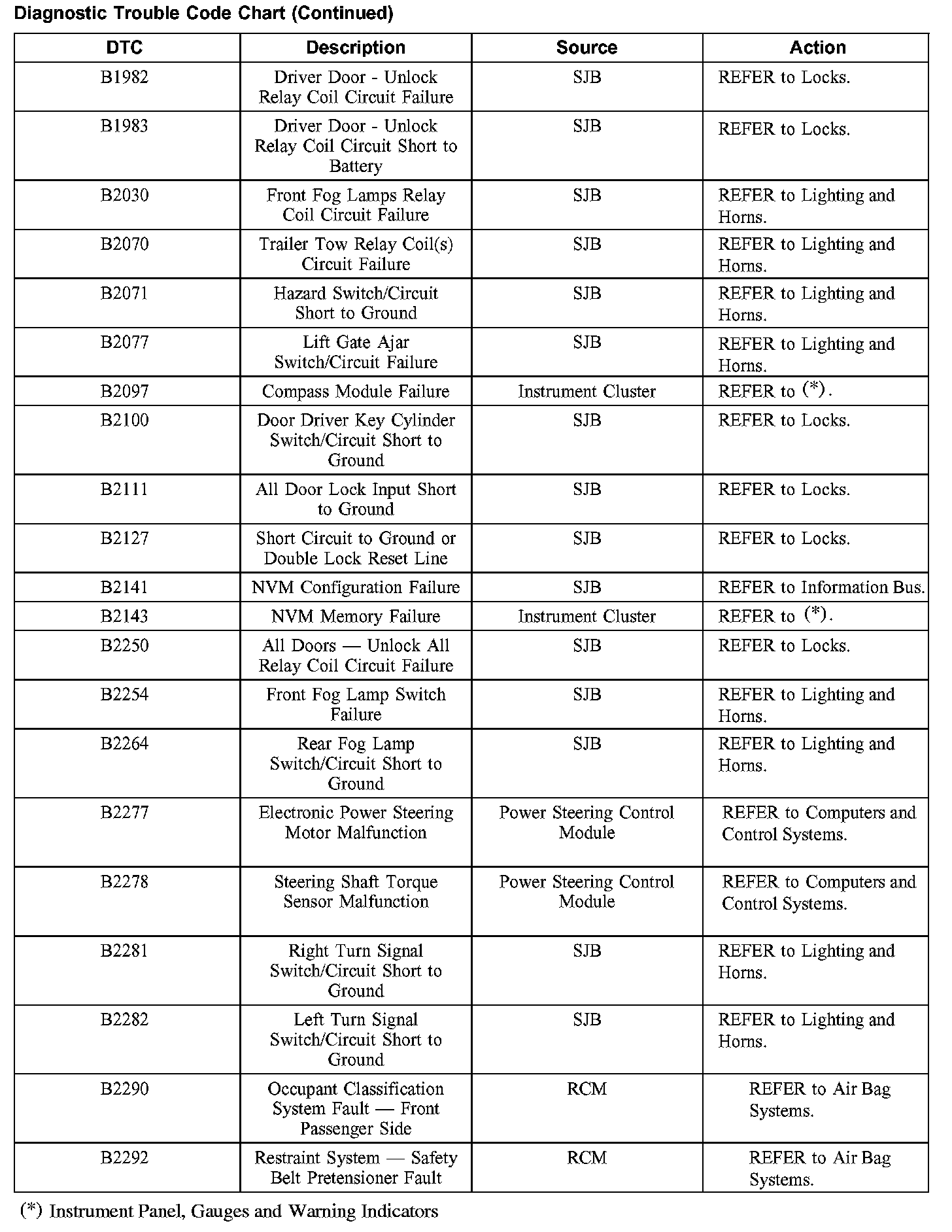

B1982-B2292:

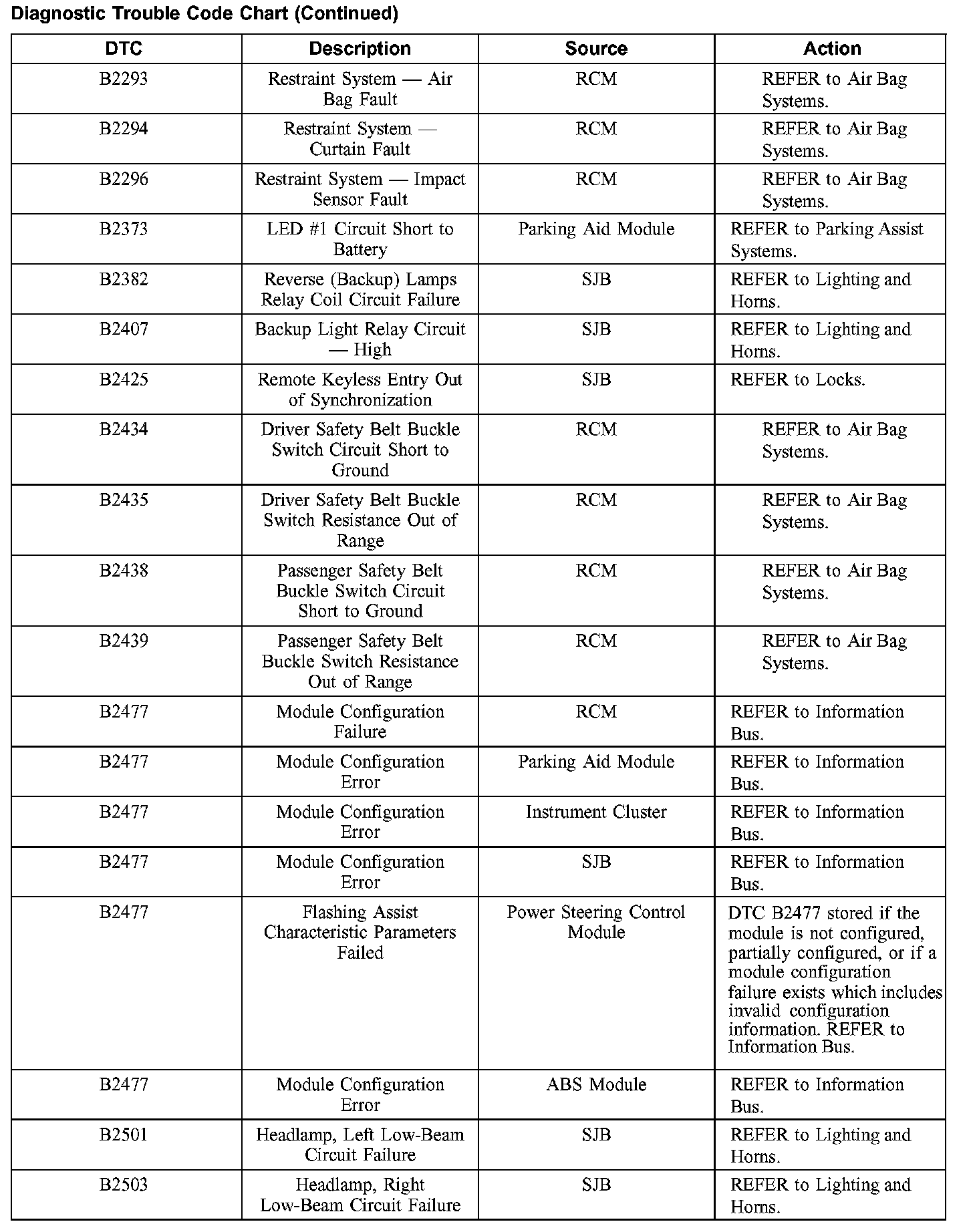

B2293-B2503:

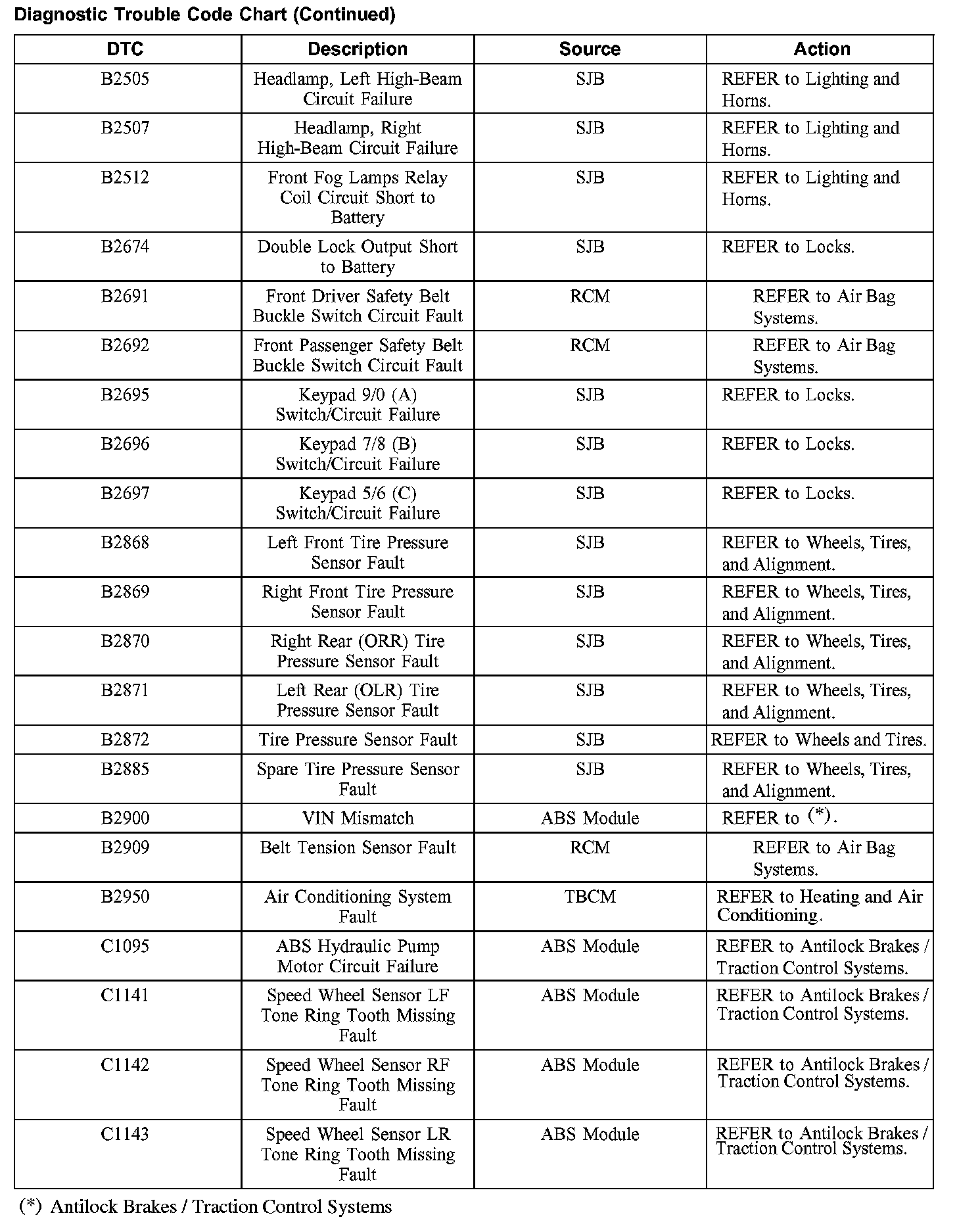

B2505-C1143:

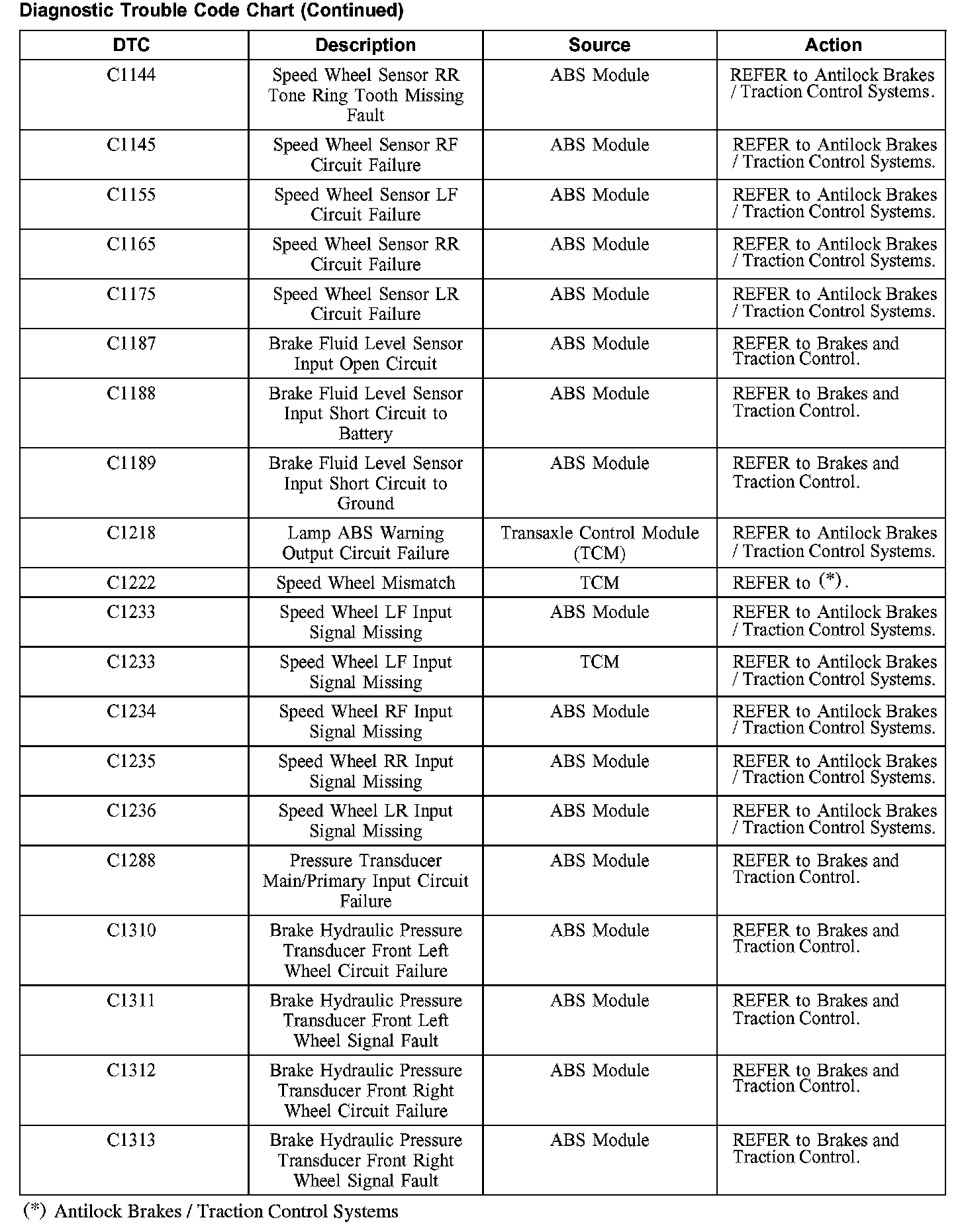

C1144-C1313:

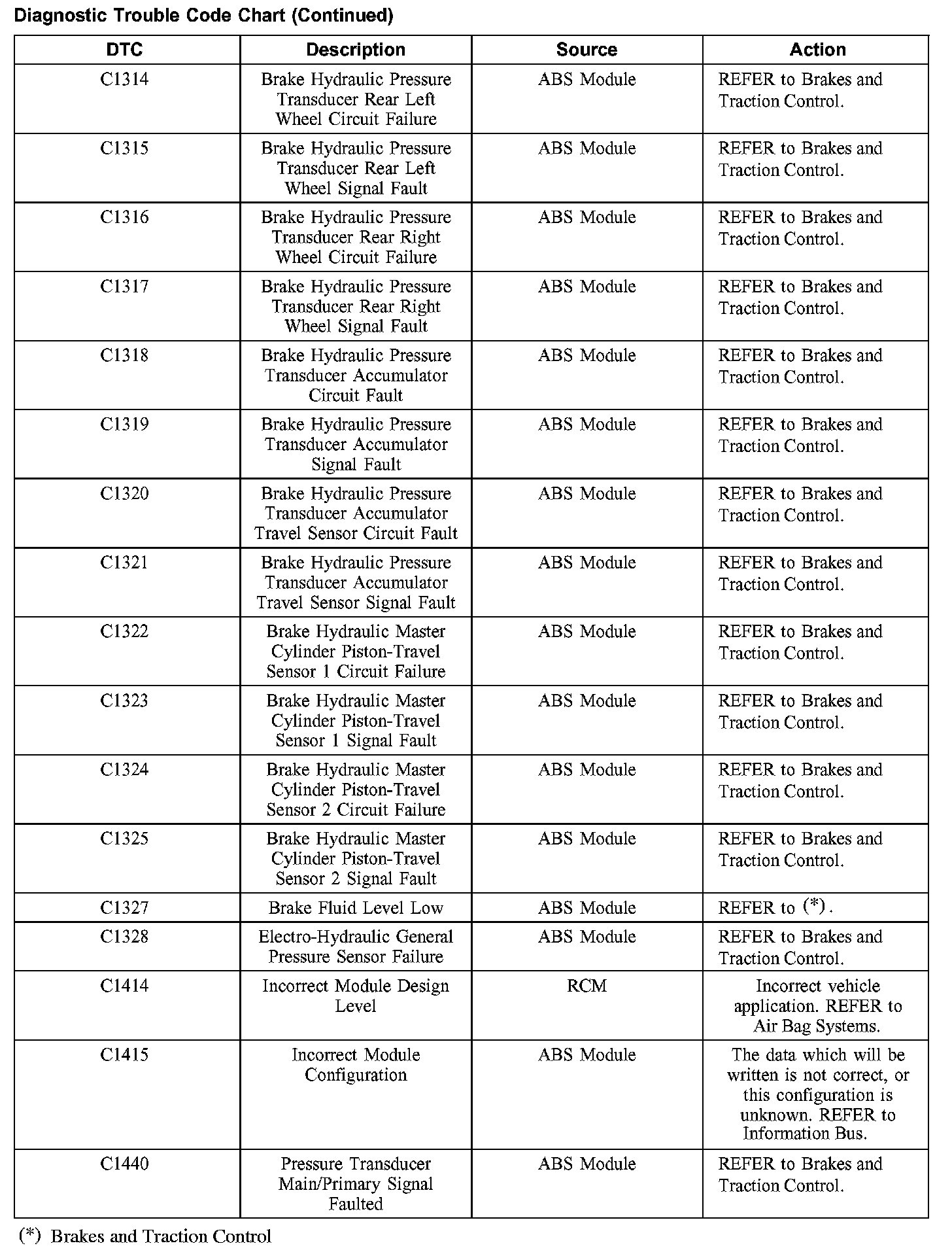

C1314-C1440:

C1446-C1701:

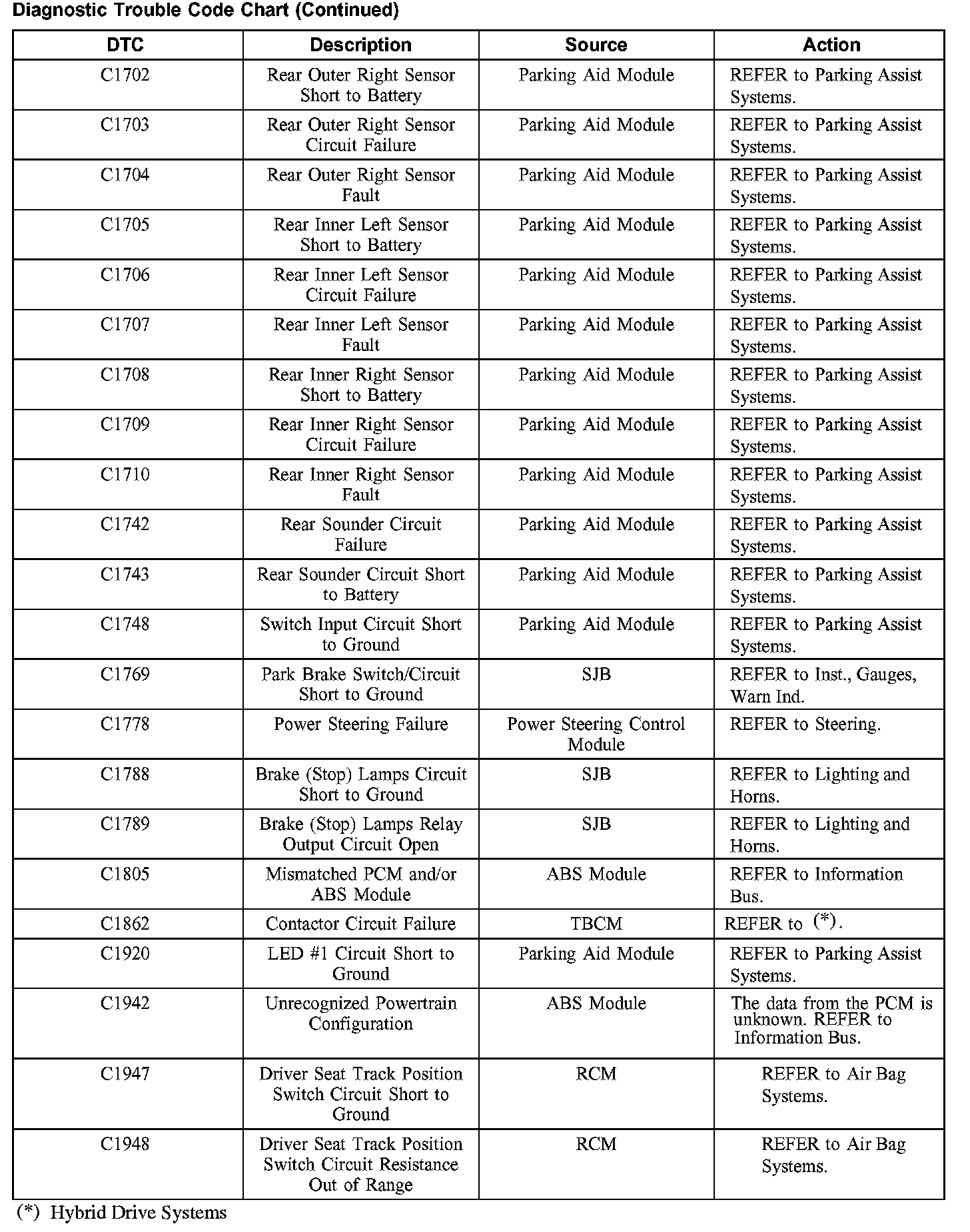

C1702-C1948:

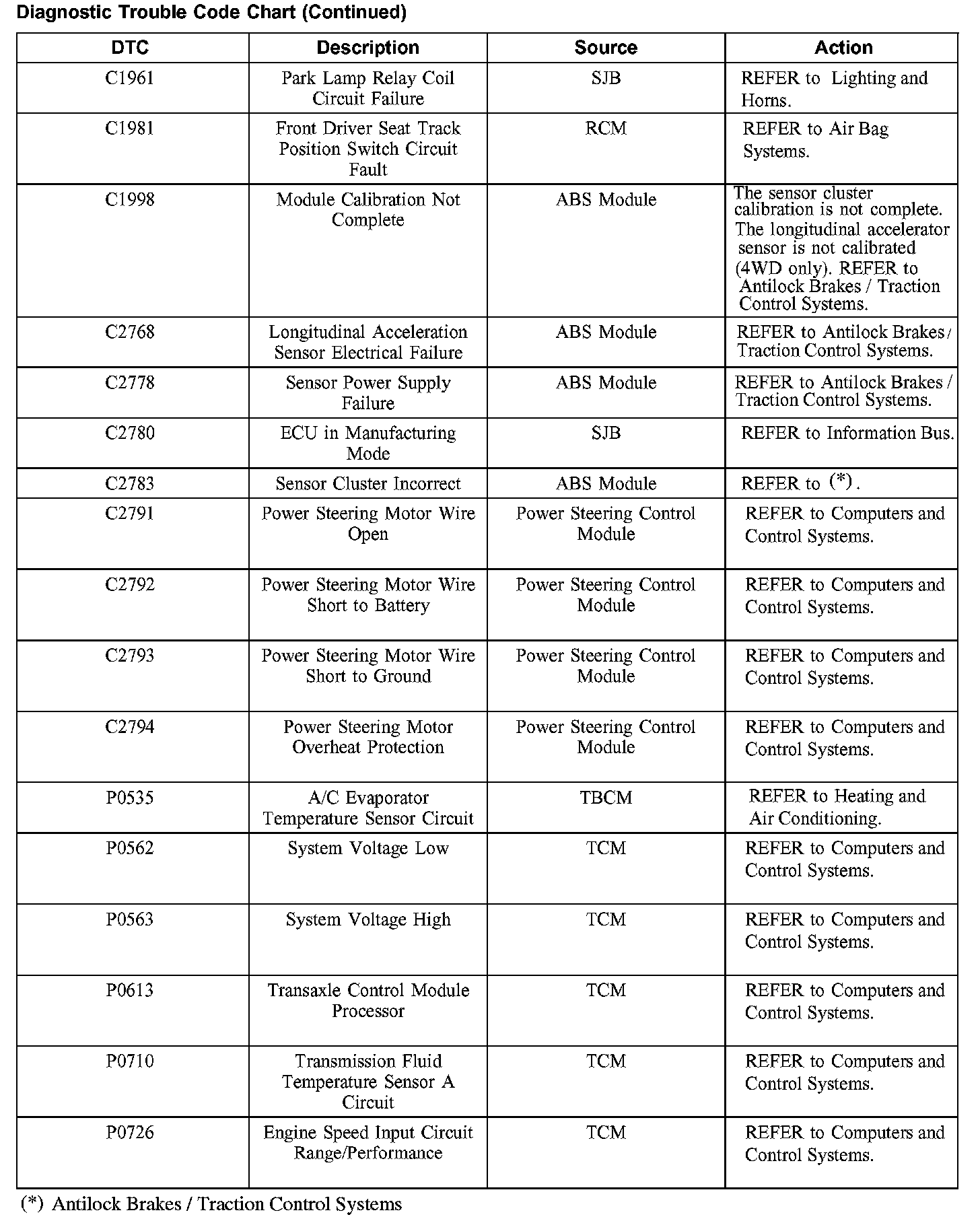

C1961-P0726:

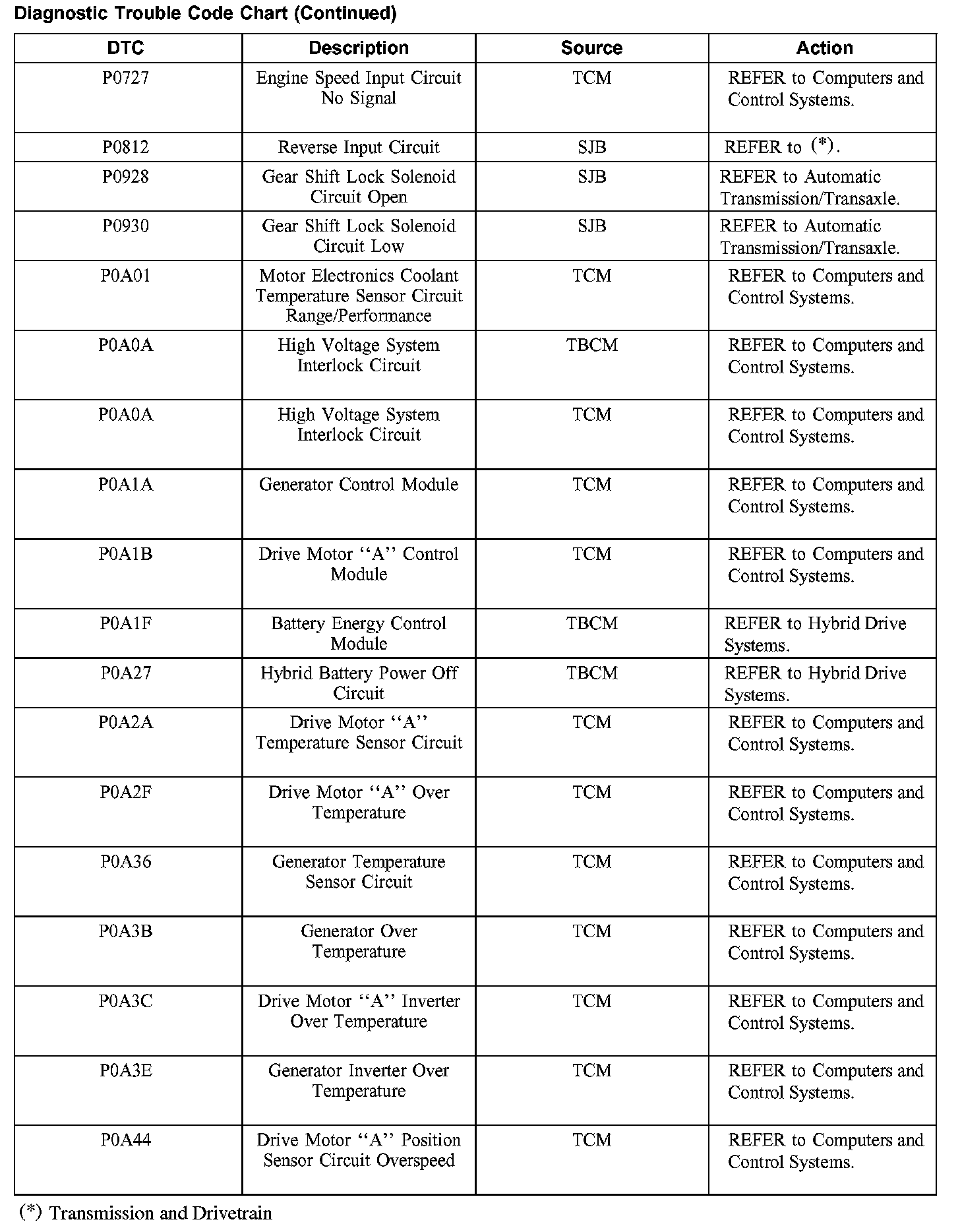

P0727-P0A44:

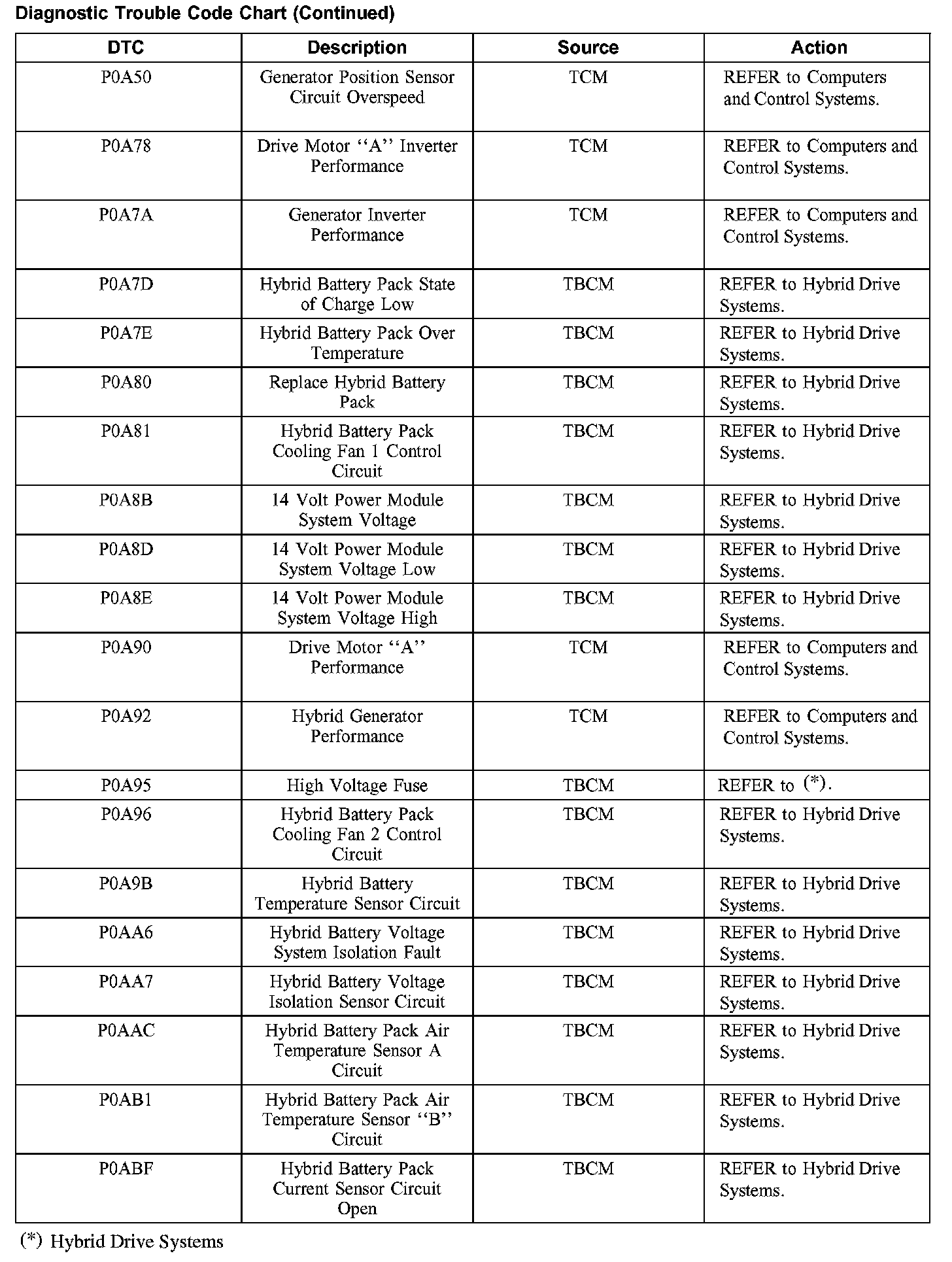

P0A50-P0ABF:

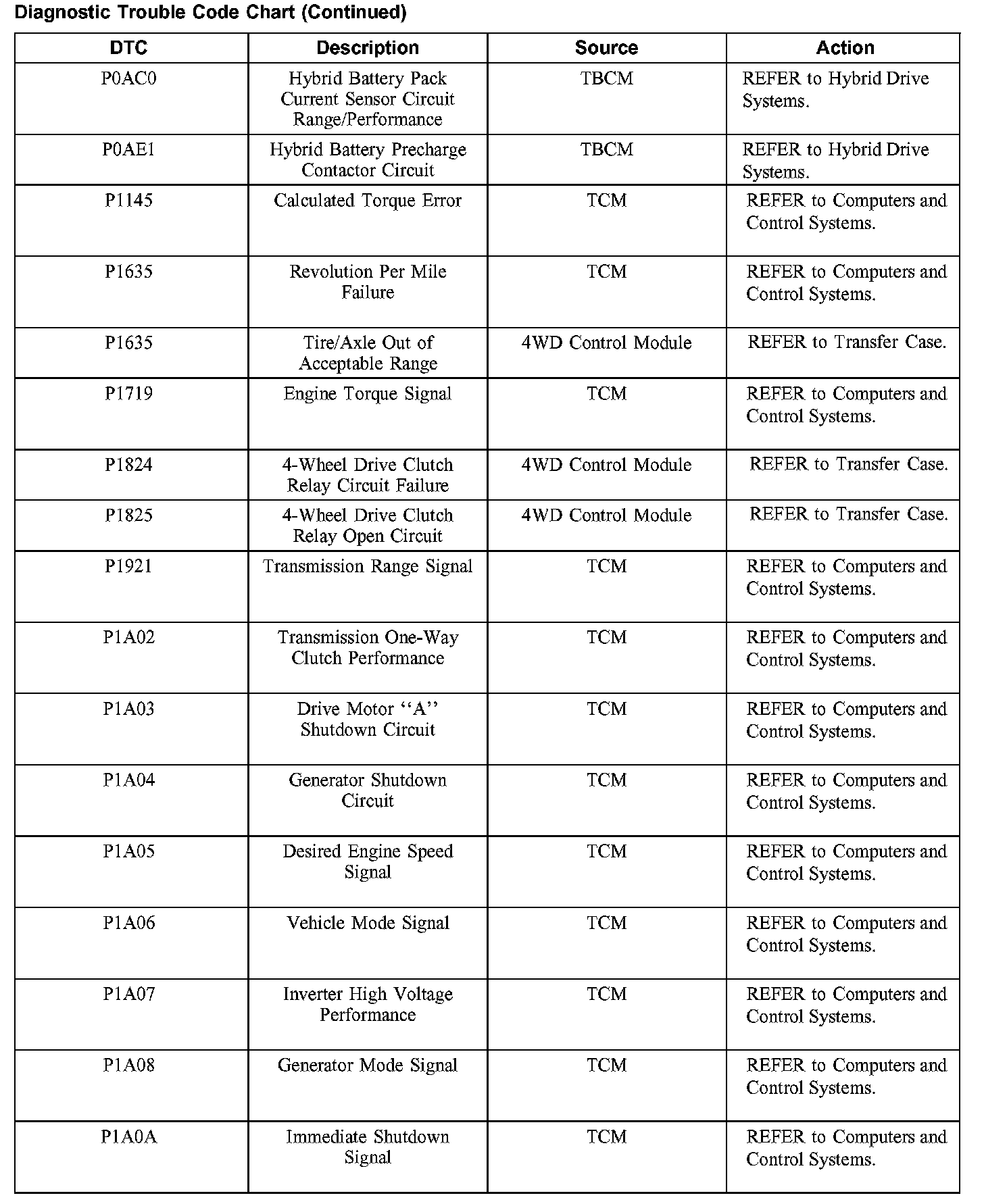

P0AC0-P1A0A:

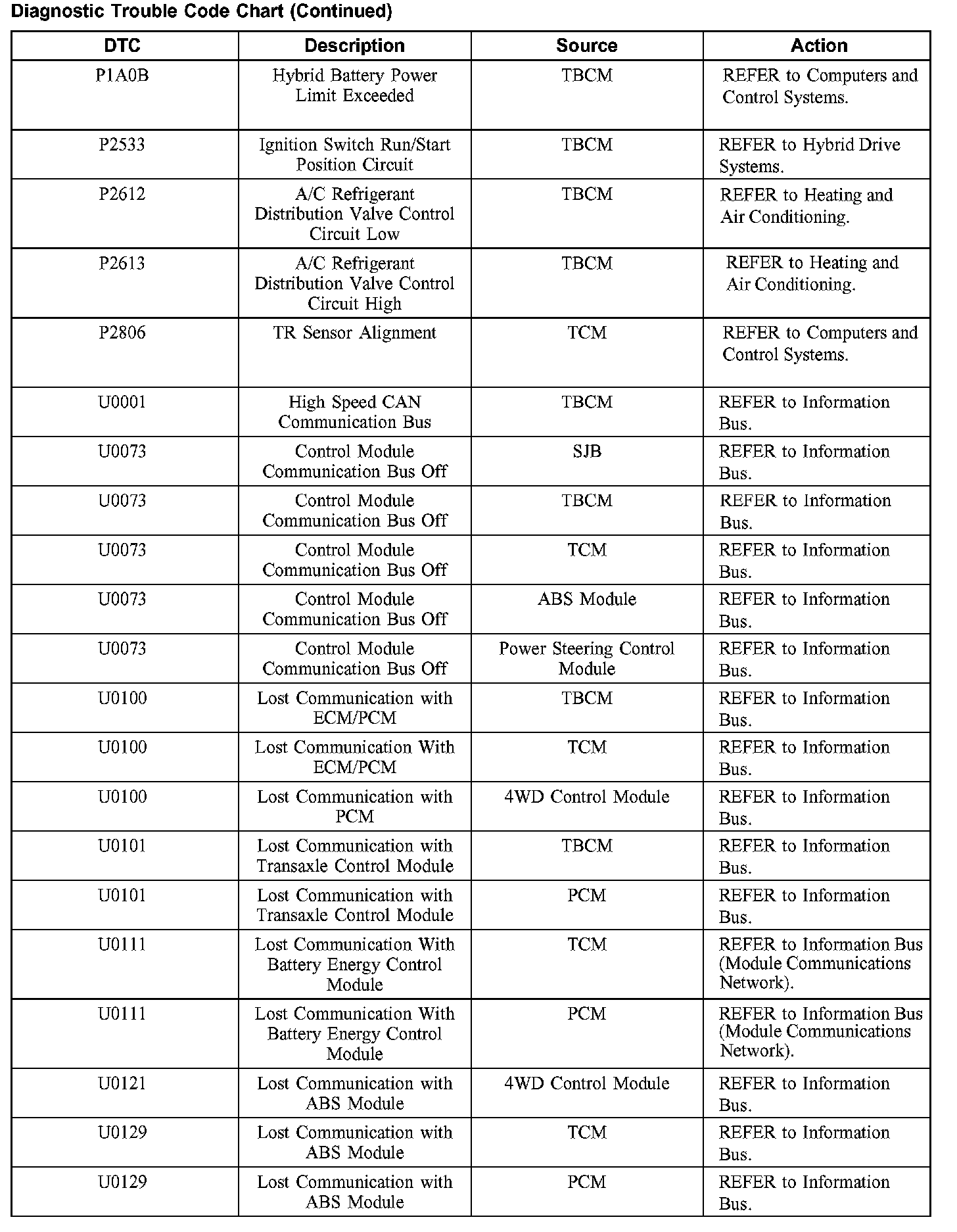

P1A0B-U0129:

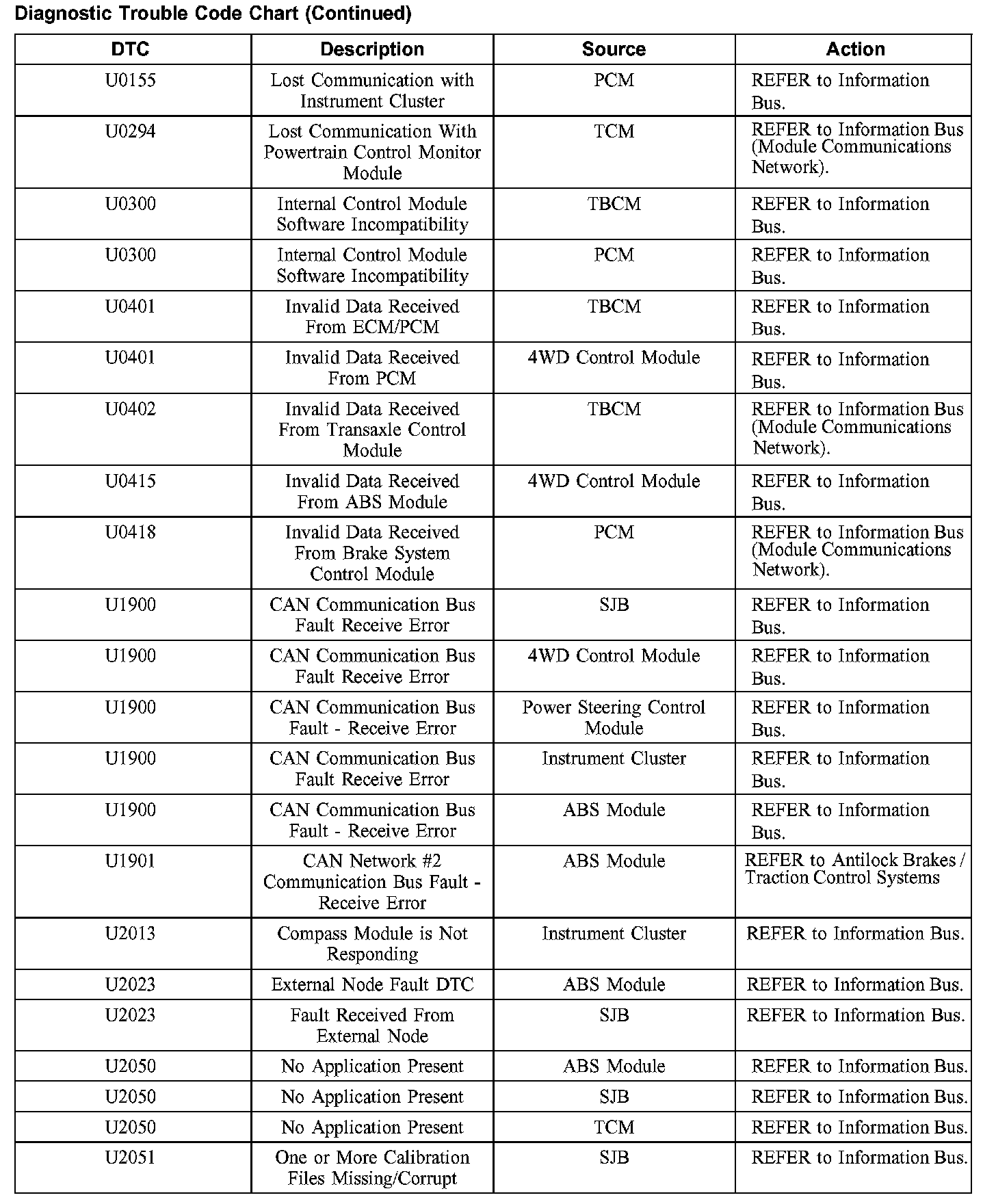

U0155-U2051:

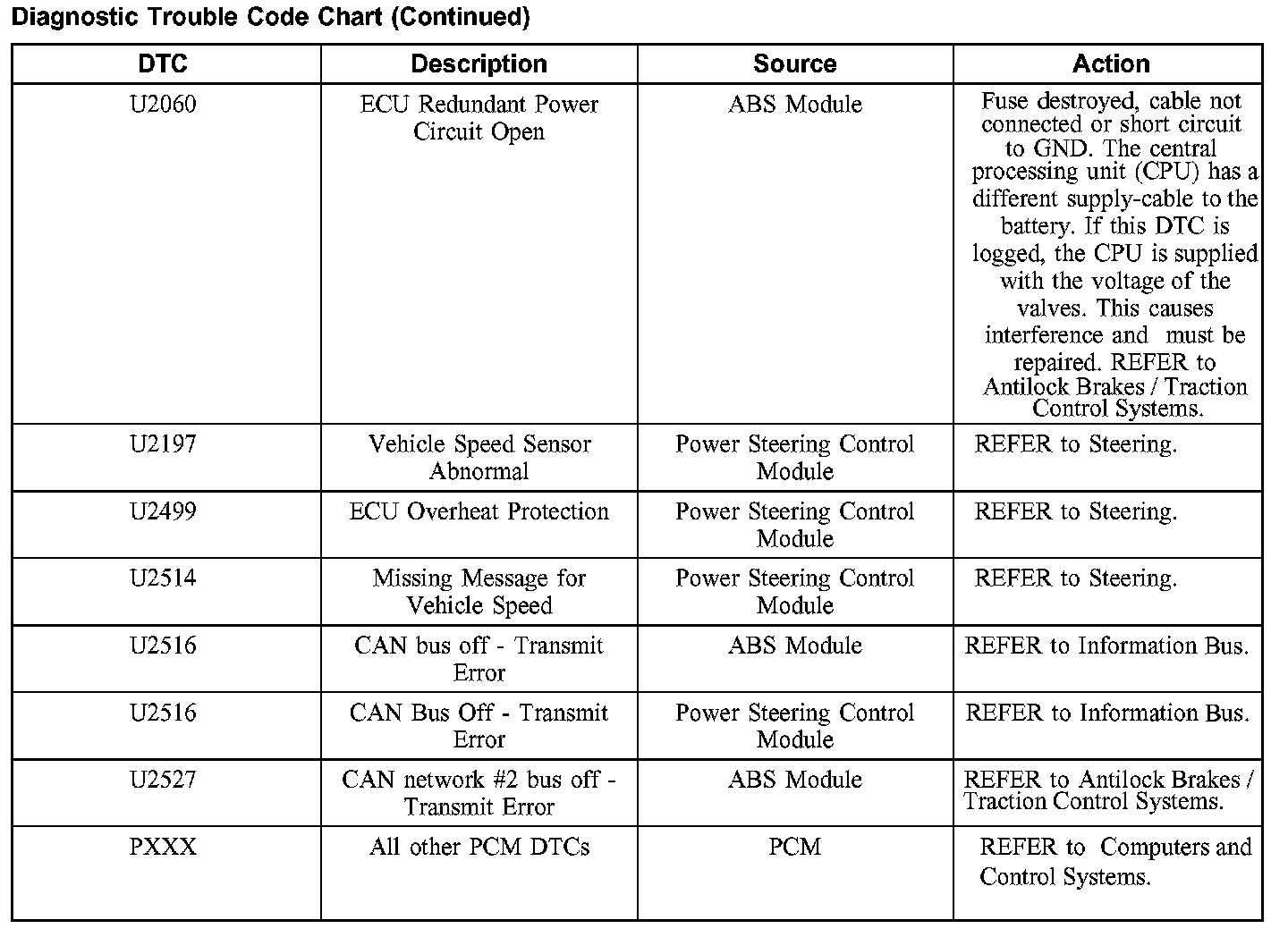

U2060-PXXX:
