Home
>>
Ford
>>
2006
>>
Escape 4WD L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Smart Junction Box
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Smart Junction Box

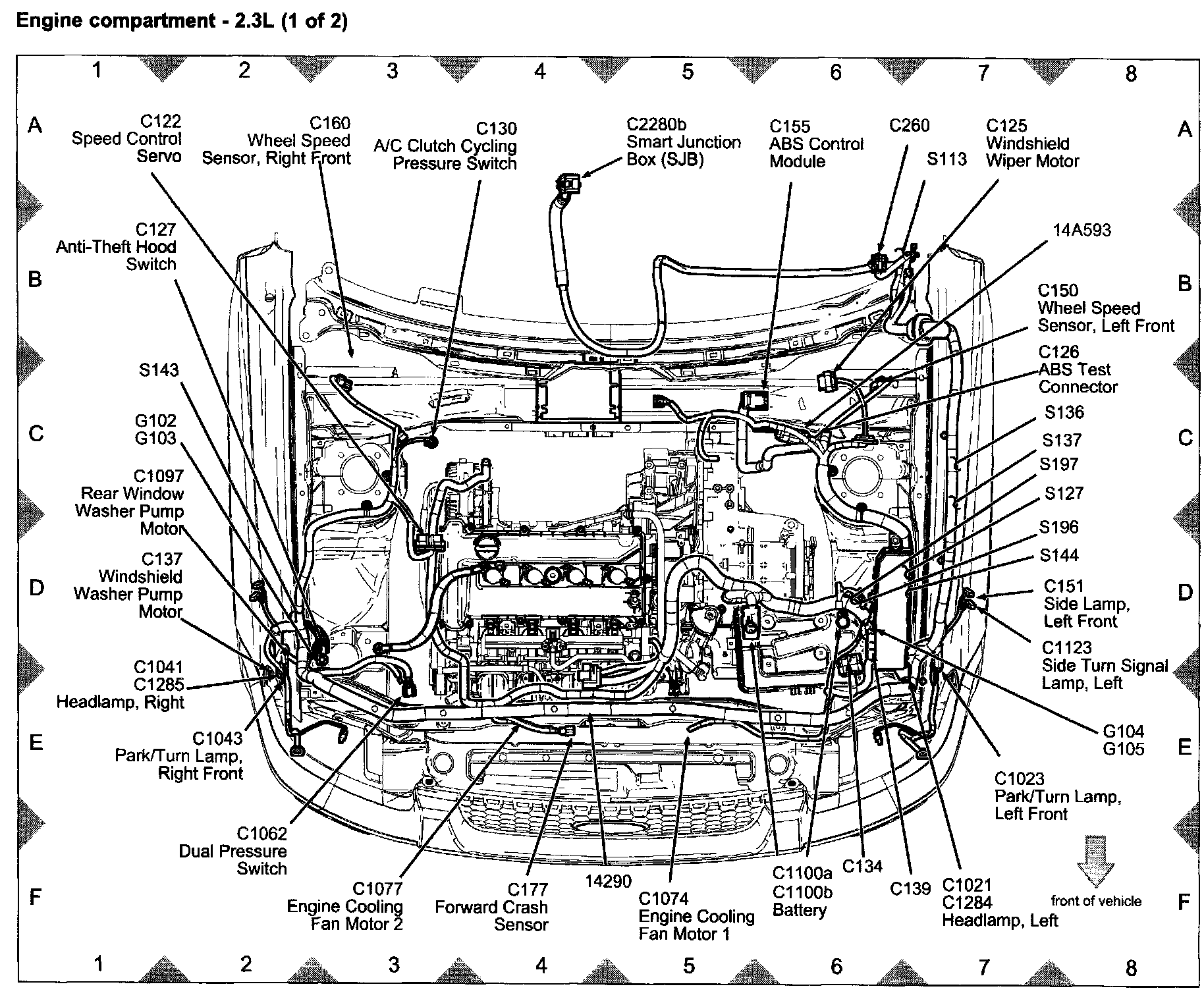

View 151-3 (Engine Compartment (1 Of 2)):
