Torque Specifications

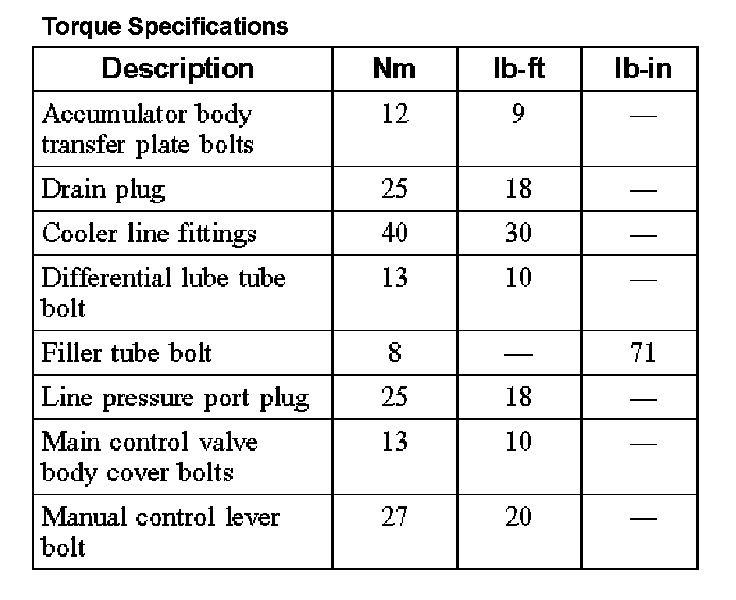

Torque Specifications (Part 1):

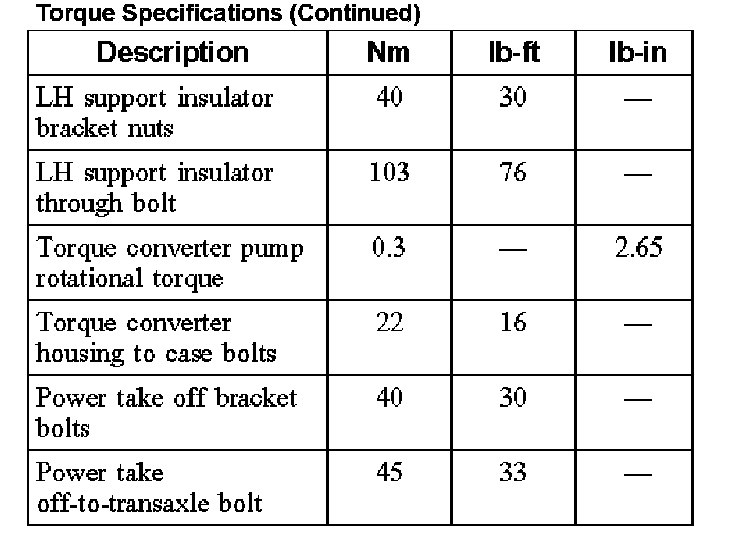

Torque Specifications (Part 2):

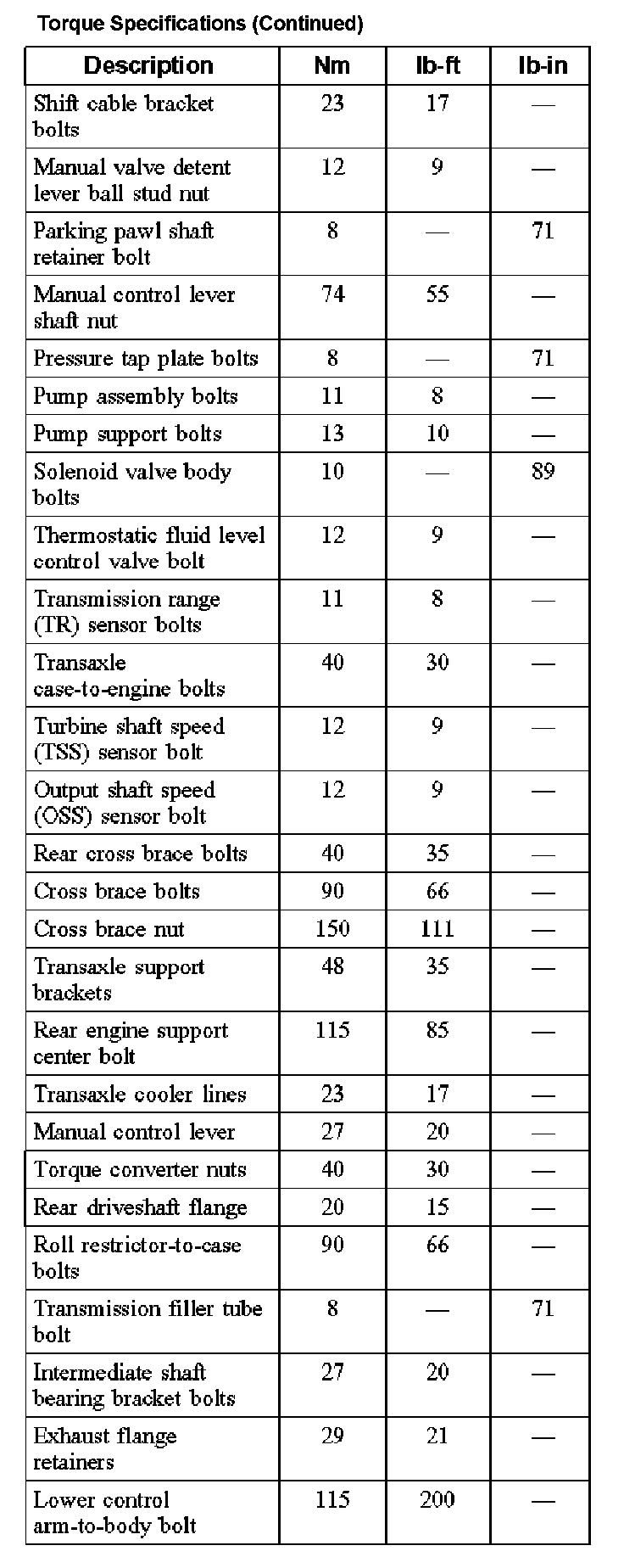

Torque Specifications (Part 3):

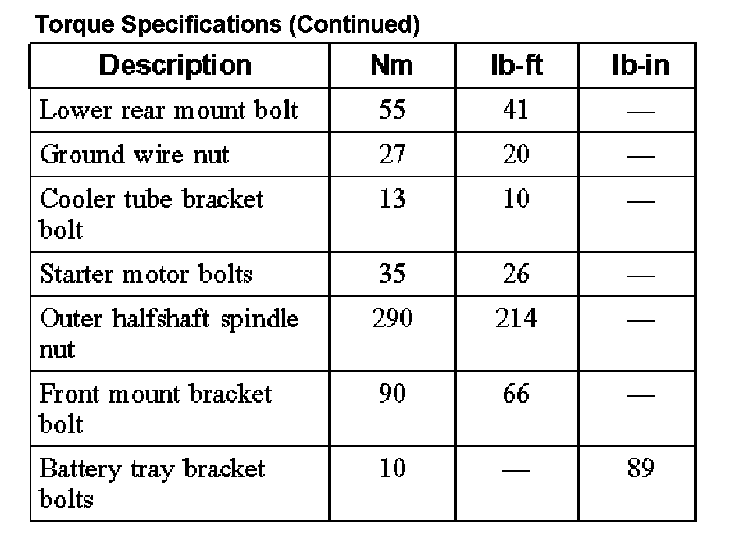

Torque Specifications (Part 4):

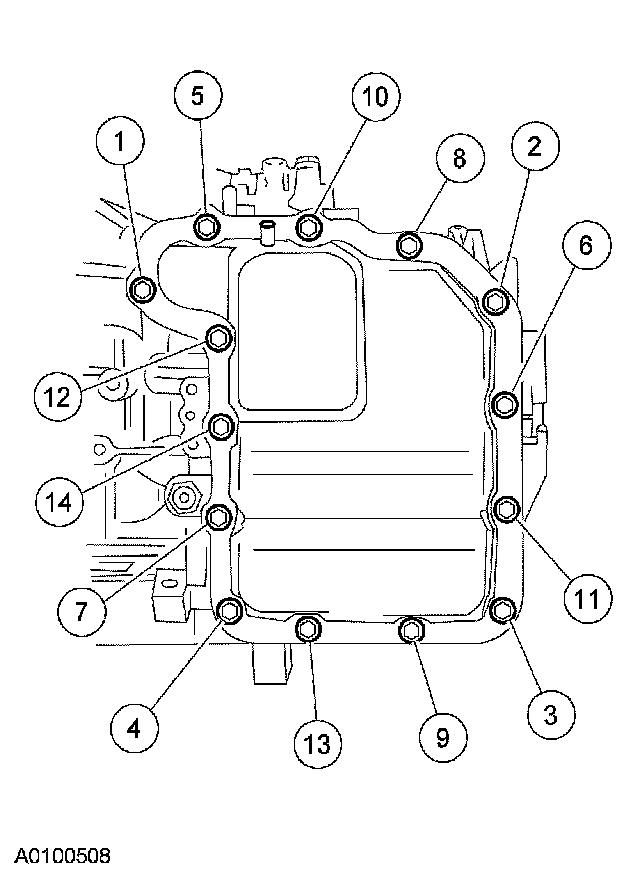

Transmission Pan Torque and Sequence






NOTE: Tighten the bolts and studs in the indicated sequence.

NOTE: The cooler bypass valve studs are in locations 3 and 11.

Install the main control cover.
Tighten to 13 Nm (10 ft. lbs.).
