Steering Column - Exploded View

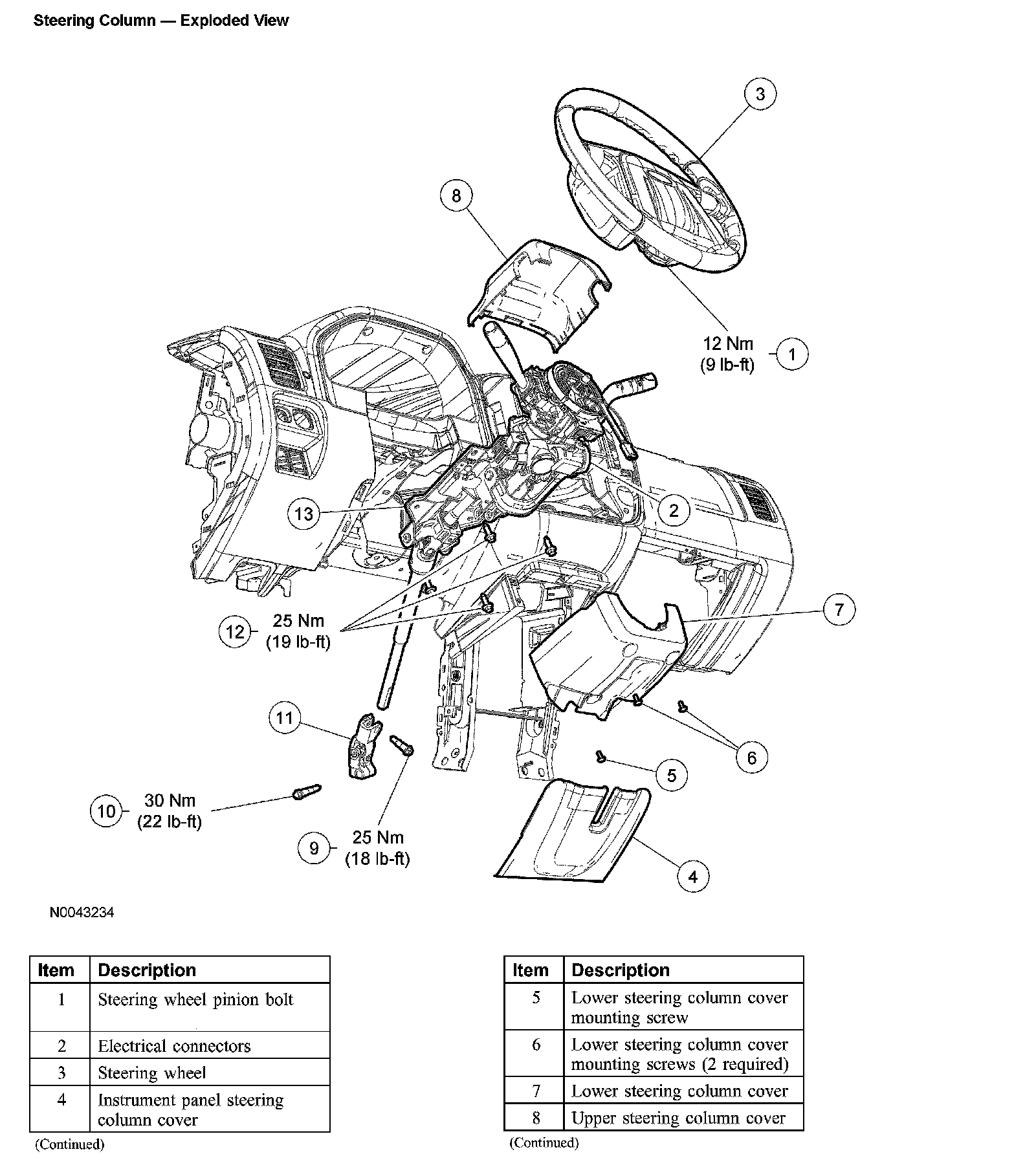

Steering Column - Exploded View (Part 1):

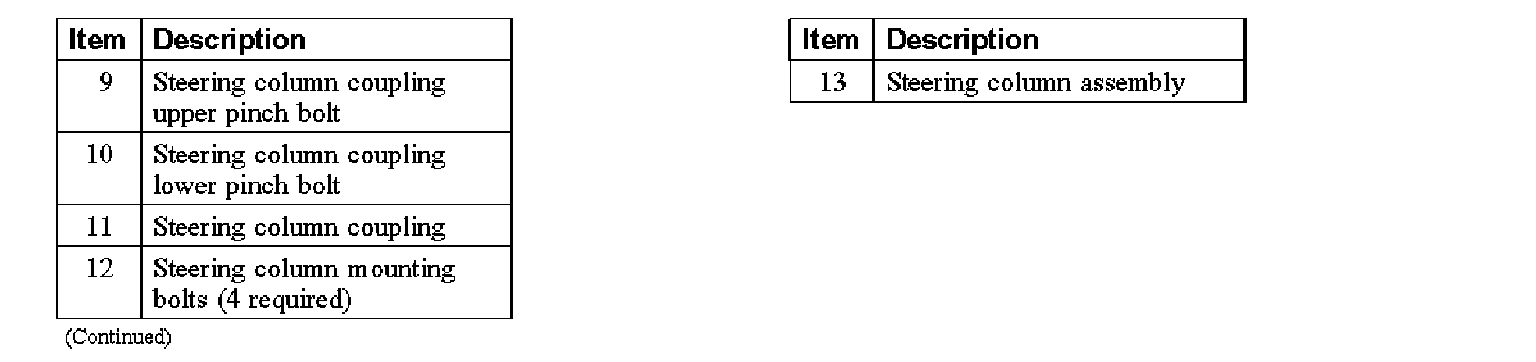

Steering Column - Exploded View (Part 2):
