Steering Column - Exploded View

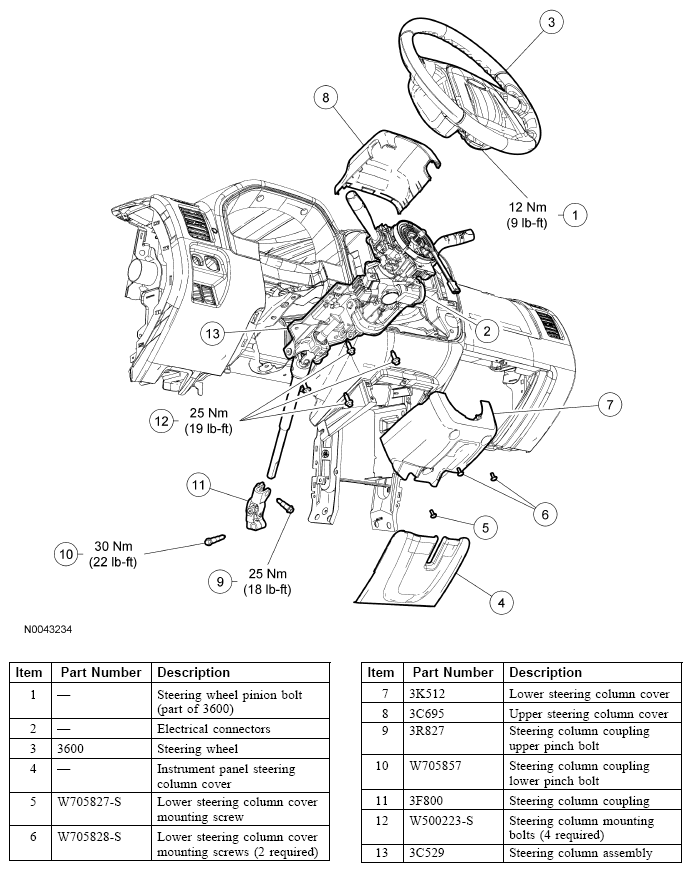

Fig 1: Exploded View Of Steering Column Components (With Torque Specifications & Part Numbers)
G04617812Courtesy of FORD MOTOR CO.
