Engine Ignition Components - Exploded View

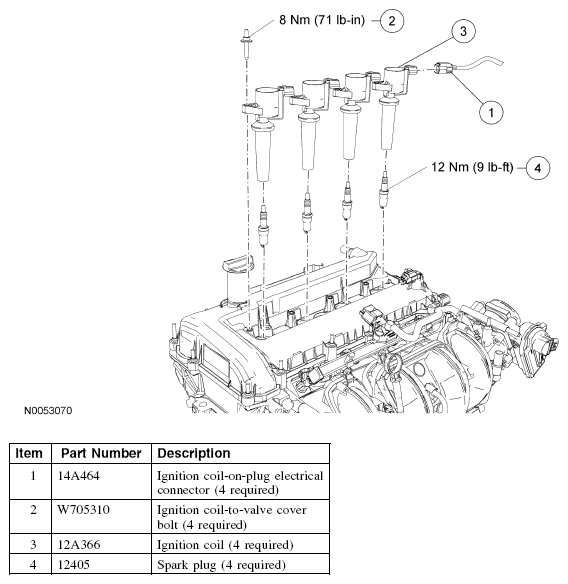

Fig 1: Engine Ignition Components - Exploded View (With Torque Specifications & Part Numbers)
G04619655Courtesy of FORD MOTOR CO.
