Exhaust Manifold - LH: Notes

SPECIAL TOOL(S)

G04627101Courtesy of FORD MOTOR CO.
Engine Support Bar, Heavy Duty
303-F070
G04627102Courtesy of FORD MOTOR CO.
Support Hook
303-F071
G04627103Courtesy of FORD MOTOR CO.
Engine Support Bracket
303-639
MATERIALS

Item Specification
Motorcraft Metal Surface Prep
ZC31
-

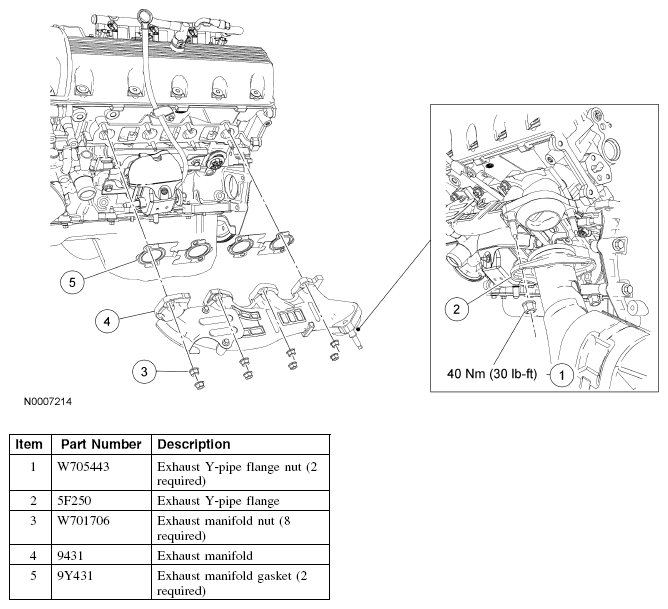

Fig 1: Location Of Exhaust Manifold Replacement Components -- LH With Torque Specifications
G04627104Courtesy of FORD MOTOR CO.
