Charge Motion Control Valve (CMCV): Notes

MATERIAL SPECIFICATION

Item Specification
SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent WSS-M2C930-A

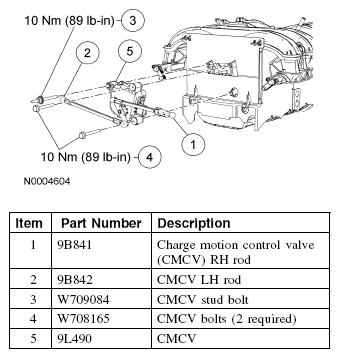

Fig 1: Charge Motion Control Valve Replacement Components With Torque Specifications
G04627667Courtesy of FORD MOTOR CO.
