Steering Wheel Rotation Sensor: Notes

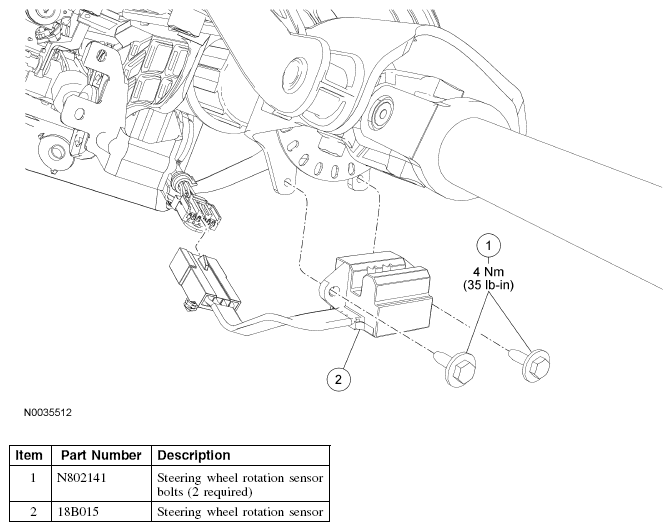

Fig 1: Steering Wheel Rotation Sensor Replacement Components With Torque Specifications
G04626705Courtesy of FORD MOTOR CO.
