Wheel Speed Sensor - Front: Notes

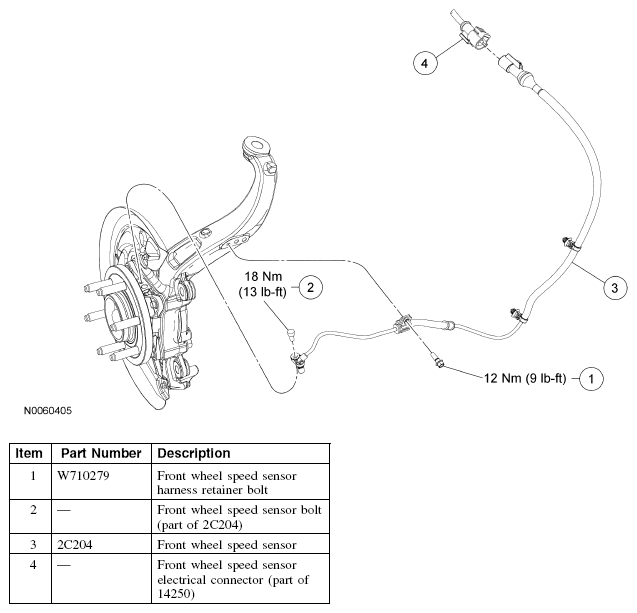

Fig 1: Front Wheel Speed Sensor Replacement Components With Torque Specifications
G04626701Courtesy of FORD MOTOR CO.
