Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | At left side of engine compartment. See Figure . |
| Air Suspension Module | Under left side of dash. See Figure . |
| Audio/Navigation Control Unit | Behind center of dash. See Figure . |
| Climate Controlled Seat Module (Passenger Side) | Under passenger seat. See Figure . |
| Driver Seat Module | Under driver's seat. See Figure . |
| Electronic Automatic Temperature Control (ETAC) Module | In center of dash. See Figure . |
| Electronic Hidden Antenna Module (EHAM) | Above right rear quarterpanel window. See Figure . |
| Fuel Pump Driver Module | At left rear of chassis. See Figure . |
| Heater Blower Control Module | Behind right side of dash. See Figure . |
| Liftgate Chime Module | In left side of liftgate. See Figure . |
| Navigation Module | Behind lower center of dash. See Figure . |
| Parking Aid Module (PAM) | At left side of cargo area, behind trim. See Figure . |
| Passenger Air Bag Module | Behind right side of dash. See Figure . |
| Power Liftgate Module | At left side of cargo area, behind trim. See Figure . |
| Powertrain Control Module | On right side of firewall. See Figure . |

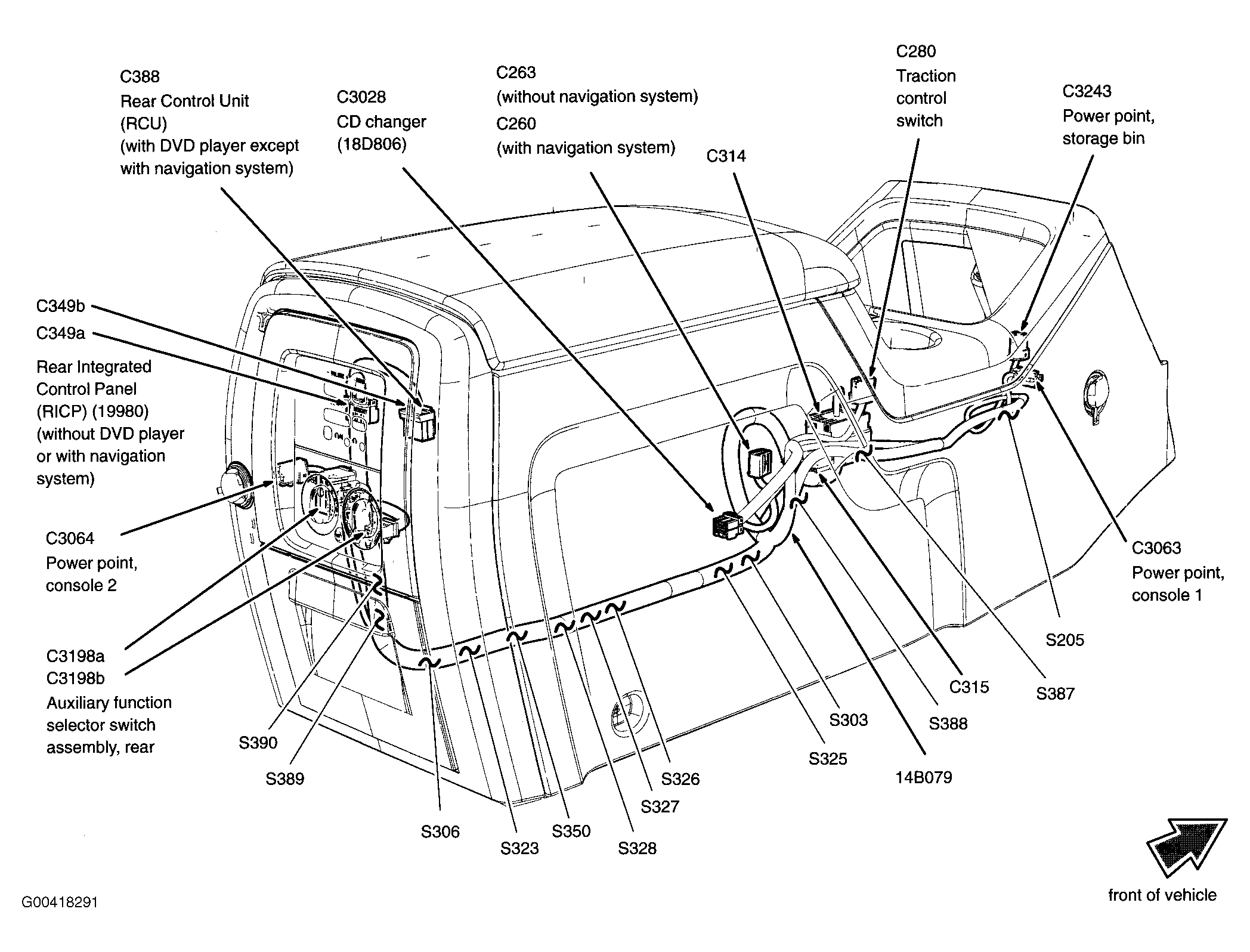

| Rear Control Unit (RCU) | In center console. See Figure . |
| Restraints Control Module | Below center console. See Figure . |
| Roof Opening Panel Module | In roof panel. See Figure . |
| Vehicle Security Module (VSM) | Under right side of dash. See Figure . |
