Exhaust System - Exploded View

NOTE:
  • Vehicle body removed for clarity.
  • Exhaust system may vary by vehicle.

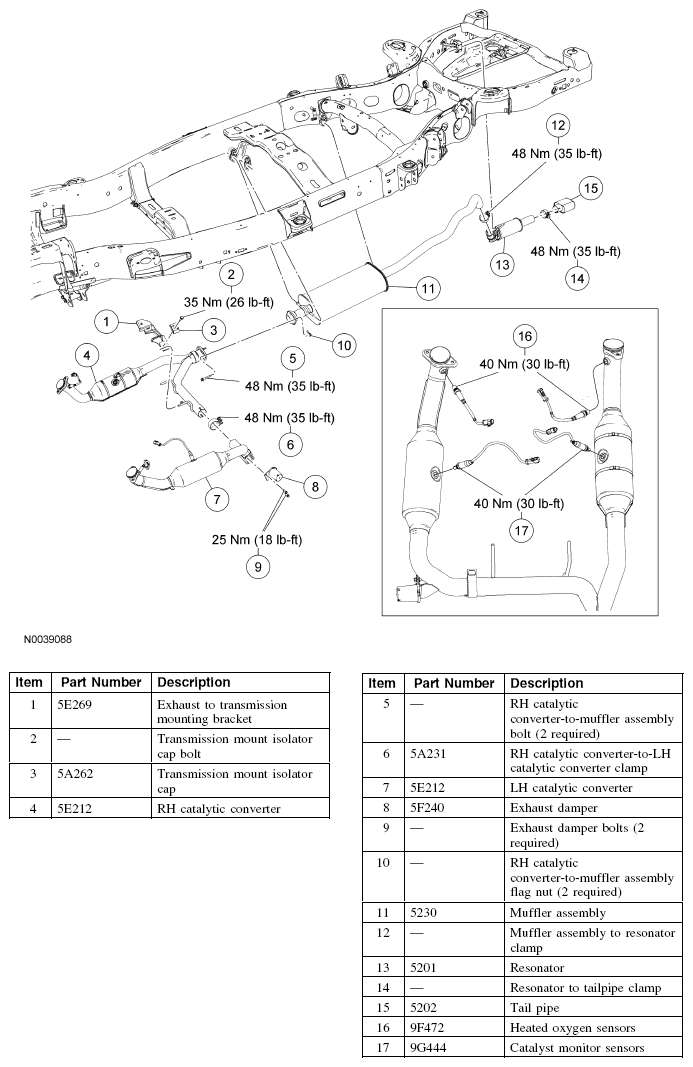

Fig 1: Exploded View Of Exhaust System Components With Torque Specifications
G04629055Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure.
