Cylinder Head: Notes

SPECIAL TOOL(S)

G04627348Courtesy of FORD MOTOR CO.
 Compressor, Valve Spring
303-1039
G04627349Courtesy of FORD MOTOR CO.
 Installer, Valve Stem Oil Seal
303-383 (T91T-6571-A)
MATERIALS

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent		 WSS-M2C930-A
Motorcraft Metal Surface Prep
ZC-31		 -
Silicone Gasket Remover
ZC-30		 -

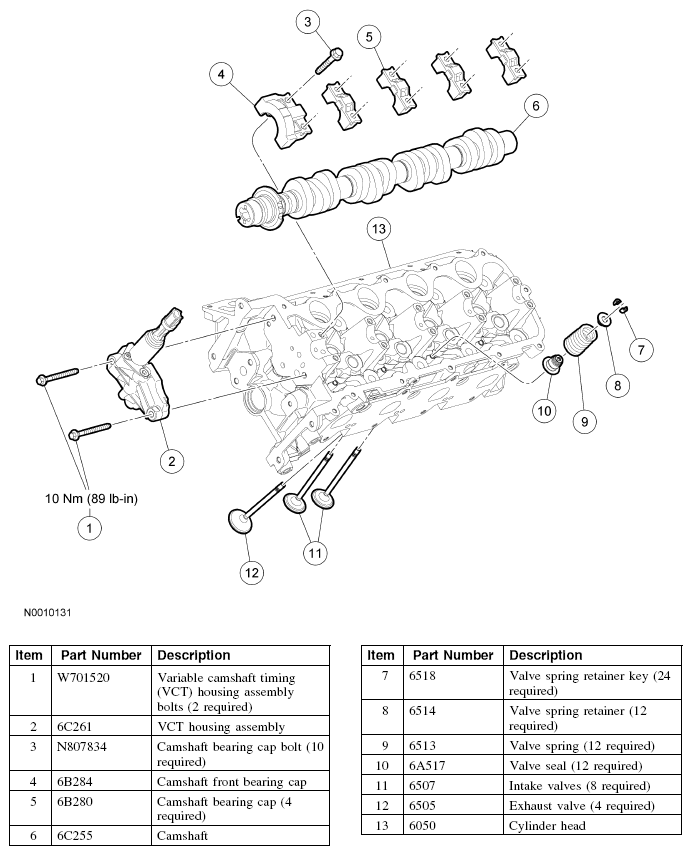

Fig 1: Exploded View Of Cylinder Head Components With Torque Specifications
G04627350Courtesy of FORD MOTOR CO.
