Intake Manifold Assembly: Notes

MATERIALS

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent		 WSS-M2C930-A

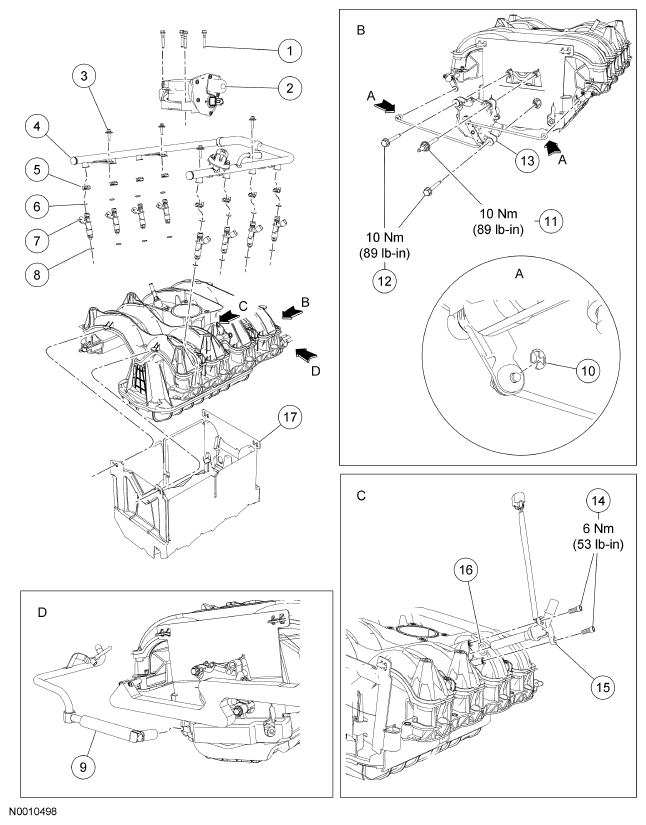

Fig 1: Location Of Intake Manifold Assembly Replacement Components With Torque Specifications
G04627356Courtesy of FORD MOTOR CO.

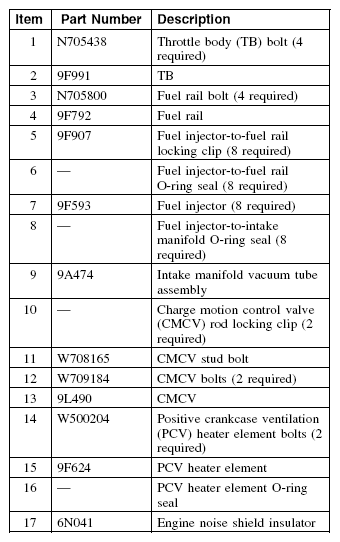

Fig 2: Intake Manifold Assembly Components Description Table
G04627357Courtesy of FORD MOTOR CO.
