Crankshaft Pulley: Notes

SPECIAL TOOL(S)

G04626926Courtesy of FORD MOTOR CO.
 Remover, Crankshaft Vibration Damper
303-009 (T58P-6316-D)
G04626927Courtesy of FORD MOTOR CO.
 Installer, Crankshaft Vibration Damper
303-102 (T74P-6316-B)
MATERIALS

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent		 WSS-M2C930-A
Motorcraft Metal Surface Prep
ZC-31		 -
Silicone Gasket Remover
ZC-30		 -
Silicone Gasket and Sealant
TA-30		 WSE-M4G323-A4

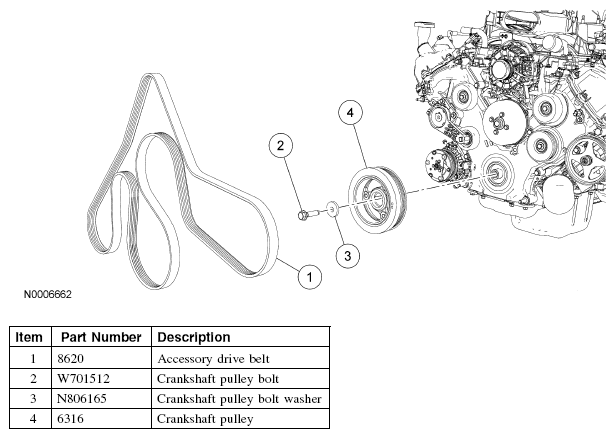

Fig 1: Identifying Location Of Crankshaft Pulley Components
G04626928Courtesy of FORD MOTOR CO.
