Engine Front Cover: Notes

SPECIAL TOOL(S)

G04626951Courtesy of FORD MOTOR CO.
 Installer, Crankshaft Front Seal
303-335 (T88T-6701-A)
G04626952Courtesy of FORD MOTOR CO.
 Remover, Crankshaft Front Seal
303-107 (T74P-6700-A)
G04626953Courtesy of FORD MOTOR CO.
 Installer, Crankshaft Front Seal
303-635
G04626954Courtesy of FORD MOTOR CO.
 Remover, Crankshaft Vibration Damper
303-009 (T58P-6316-D)
G04626955Courtesy of FORD MOTOR CO.
 Installer, Crankshaft Vibration Damper
303-102 (T74P-6316-B)
MATERIALS

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent		 WSS-M2C930-A
Silicone Gasket and Sealant
TA-30		 WSE-M4G323-A4
Motorcraft Metal Surface Prep
ZC-31		 -
Silicone Gasket Remover
ZC-30		 -

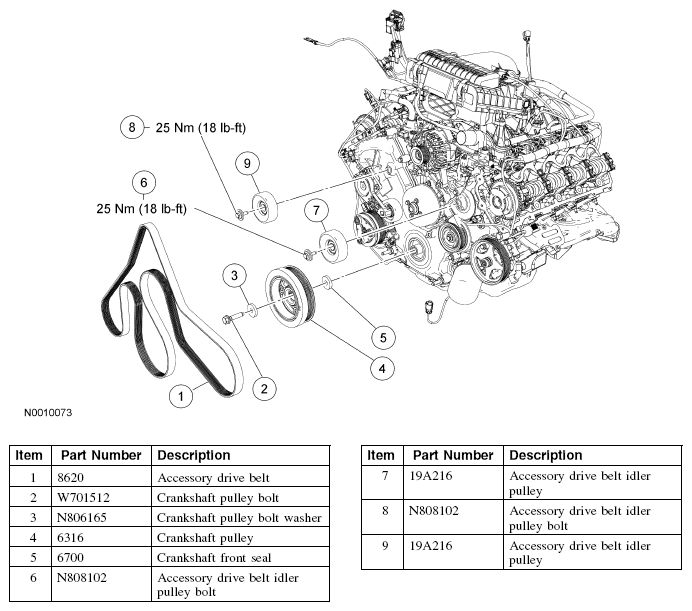

Fig 1: Location Of Engine Front Cover Replacement Components With Torque Specifications (1 Of 3)
G04626956Courtesy of FORD MOTOR CO.

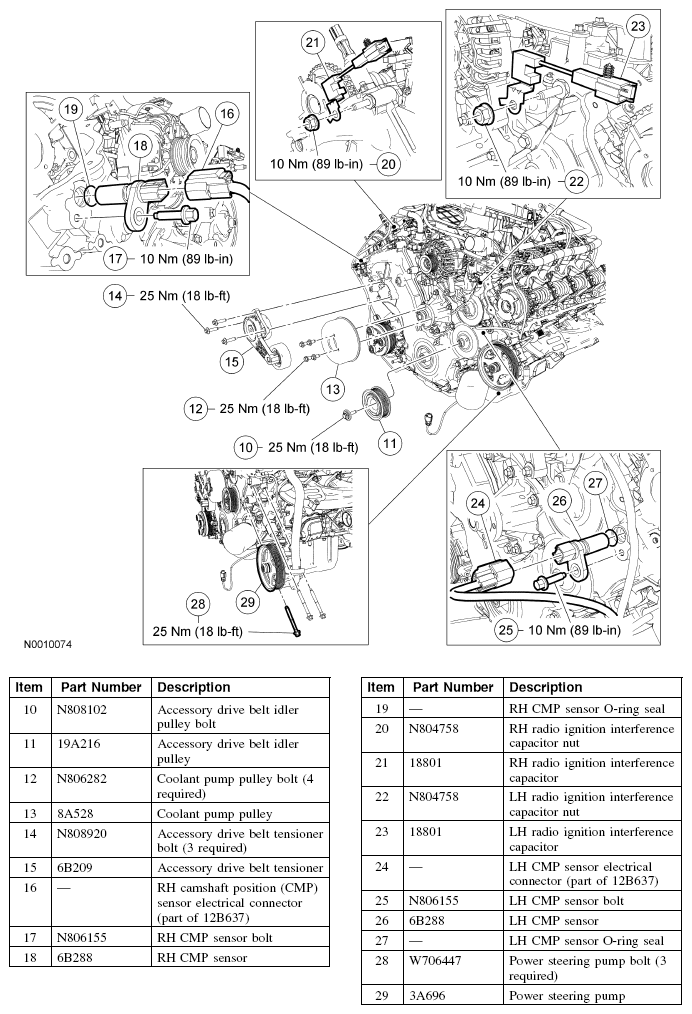

Fig 2: Location Of Engine Front Cover Replacement Components With Torque Specifications (2 Of 3)
G04626957Courtesy of FORD MOTOR CO.

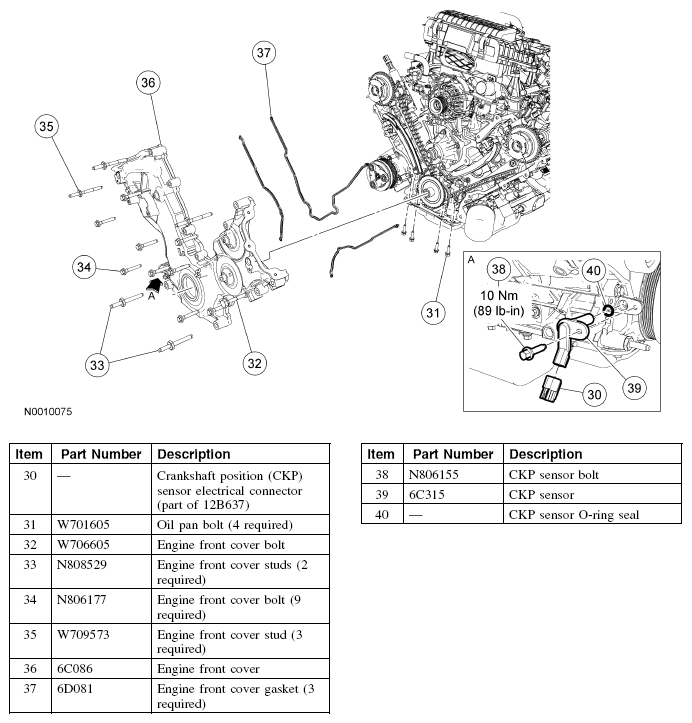

Fig 3: Location Of Engine Front Cover Replacement Components With Torque Specifications (3 Of 3)
G04626958Courtesy of FORD MOTOR CO.
