Engine Support Insulators: Notes

SPECIAL TOOL(S)

G04627165Courtesy of FORD MOTOR CO.
 Engine Support Bar, Heavy Duty
303-F070
G04627166Courtesy of FORD MOTOR CO.
 Support Hook
303-F071
G04627167Courtesy of FORD MOTOR CO.
 Engine Support Bracket
303-639

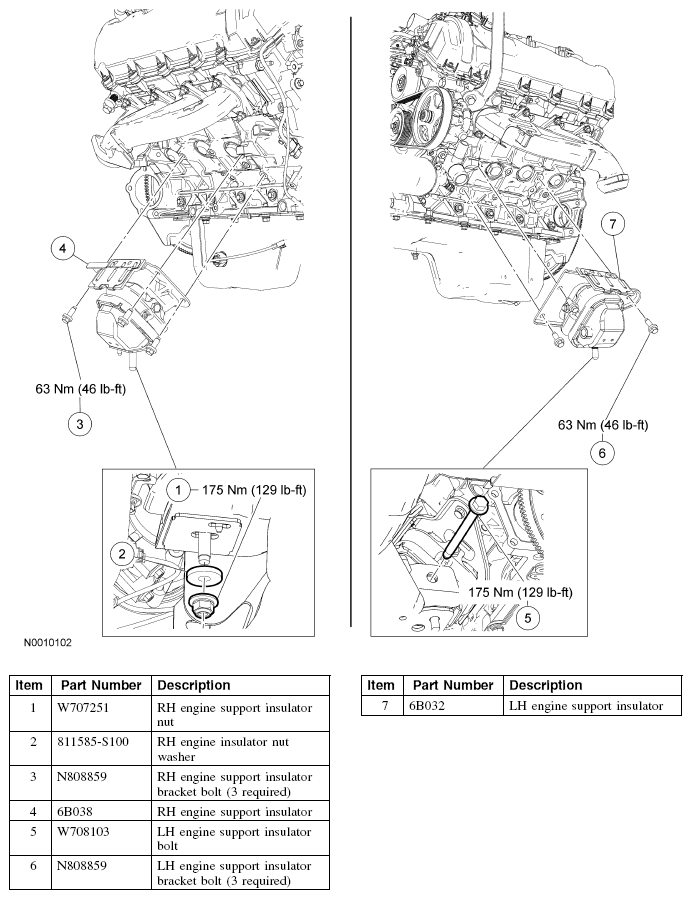

Fig 1: Location Of Engine Support Insulators Replacement Components With Torque Specifications
G04627168Courtesy of FORD MOTOR CO.
