Intake Manifold: Notes

MATERIALS

Item Specification
Metal Surface Prep
ZC-31		 -
Silicone Gasket Remover
ZC-30		 -

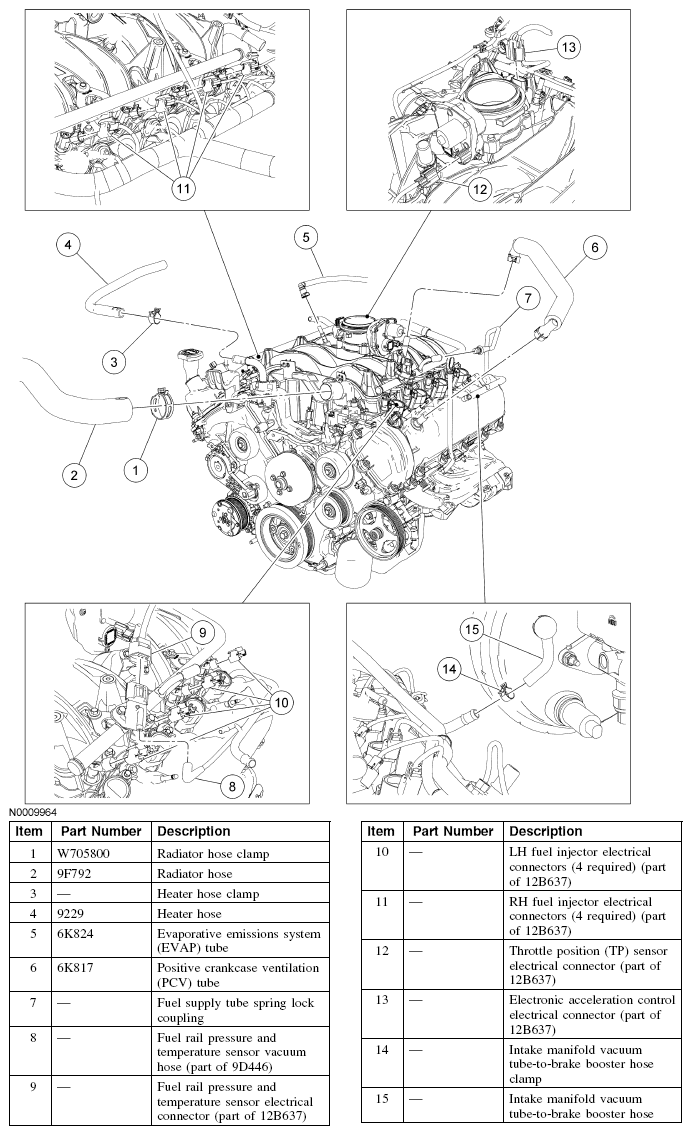

Fig 1: Identifying Intake Manifold Components (1 Of 2)
G04626891Courtesy of FORD MOTOR CO.

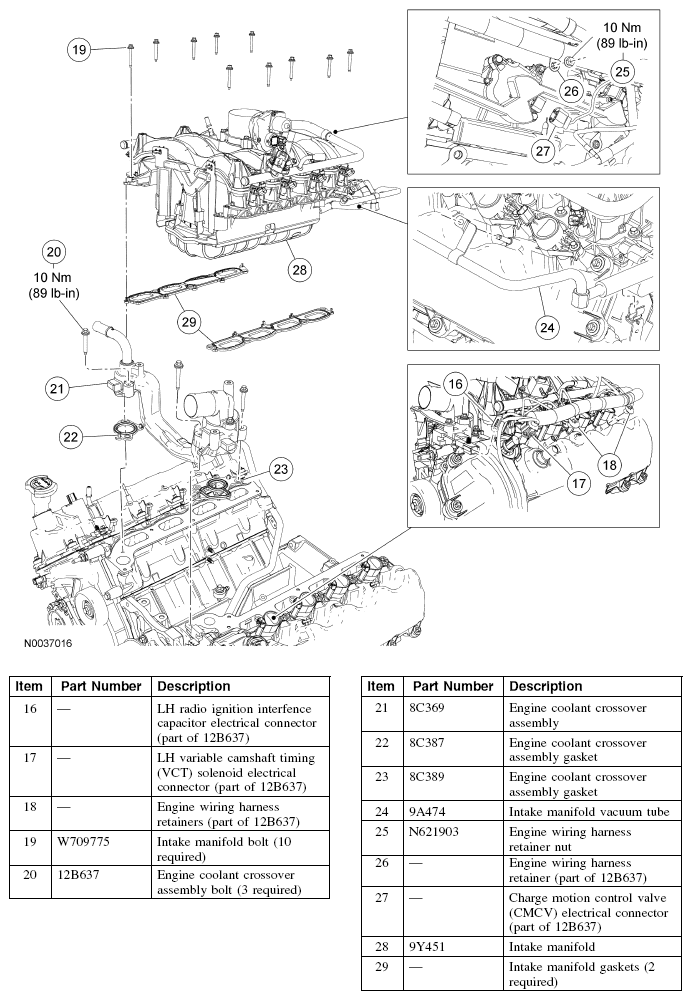

Fig 2: Intake Manifold Replacement Components With Torque Specifications (2 Of 2)
G04626892Courtesy of FORD MOTOR CO.
